Brand Name : | GUOMAT |
Model Number : | 1B5330 |
Certification : | ISO/TS16949, ISO9001 |
Price : | Negotiable |
Payment Terms : | L/C, D/A, D/P, Western Union |
Supply Ability : | 1000PCS/Week |
Delivery Time : | 5-8 Working Days |

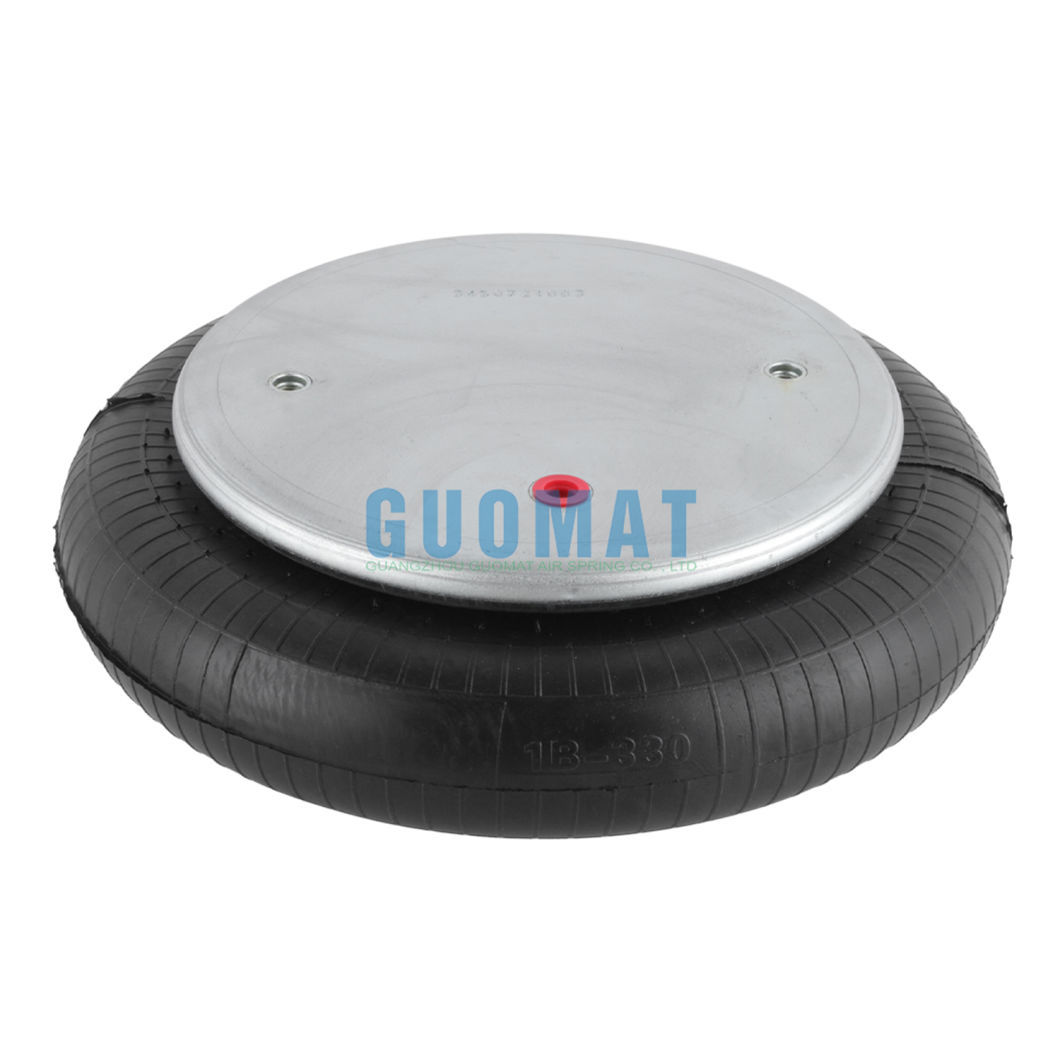

Firestone Shock Absorber W01-358-7008 Single Convoluted Style 19 Air Spring Assembly
Product Information
Top Cover Plate Diameter | 9.00 in. |
Screw Center Distance of Top Cover Plate | 6.20 in. |
Bottom Cover Plate Diameter | 9.00 in. |
Distance Between Screw and Air Hole | 2.88 in. |
Top Cover Plate Screw(Nut) Tooth | 3/8-16 blind nuts |
Bottom Cover Plate Screw(Nut) Tooth | 3/8-16 blind nuts |
Gas Hole | G 1/4 |
Rubber Bellow Max Dia | 12.9 in. |
Minimum Height | 2 in. |
Maximum Height | 6 in. |
OEM Numbers
W01-358-7008, W01 358 7008, W013587008, WO1-358-7008, WO1 358 7008, WO13587008
FS330-11 474, FS 330-11 474, FS330-11474, FS330 11 474, FS 330 11 474, FS33011474
1B12-300, 1B 12-300, 1B12 300, 1B 12 300, 1B12-313, 1B 12-313, 1B12 313, 1B 12 313
6374, 4474
90557226
Firestone Style 19 Has Other OEM Number
Style 19 Two Ply Bellows | Blind nuts, 1/4 NPT | W01-358-7008, W01 358 7008, W013587008 WO1-358-7008, WO1 358 7008, WO13587008 |
Blind nuts, 1/4 NPT, bumper | W01-358-7009, W01 358 7009, W013587009 WO1-358-7009, WO1 358 7009, WO13587009 | |
Blind nuts, 3/4 NPT | W01-358-7011, W01 358 7011, W013587011 WO1-358-7011, WO1 358 7011, WO13587011 | |
Blind nuts, 3/4 NPT. bumper | W01-358-7012, W01 358 7012, W013587012 WO1-358-7012, WO1 358 7012, WO13587012 | |
Countersunk steel bead rings, 15/8 bolts, nuts, washers | W01-358-7023, W01 358 7023, W013587023 WO1-358-7023, WO1 358 7023, WO13587023 | |
Rubber bellows only | W01-358-0134, W01 358 0134, W013580134 WO1-358-0134, WO1 358 0134, WO13580134 |
Product Advantages
Long service life
Maintenance-free
Highly operational safety
Frictionless
Lateral misalignment possible
Chemical resistance
FAQ
Q: What will you do for customer's complaint? A: We will respond quickly to our customers within 24 hours. |
Q: How to guarantee your after sales service? A: (1) Strict inspection during production. (2) Recheck the products before shipment to ensure our packaging in good condition. (3) Track and receive feedback from our customers. |
Q:Can you produce the product according to the samples? A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures. |
