Universal Double Bellow Air Bag Shock Absorber W01-358-7781 for in Suspension System

Universal Double Bellow Air Bag Fit Shock Absorber Ride Suspension kit W01-358-7781

Air Spring OEM Number

Fire-stone:W01-358-7781,W013587781,7781

Contitech:FD 530-35545,FD53035545,FD 530 355 45


Original Manufacturer

Ridewell:1003587781C


Air Spring Drawings And Parameter


Double Fire-stone Suspension Spring Technical Data
Nut/Blind Nut
Top Cover Plate Screw (Nut) Tooth4X3/8 -13 UNC
Screw Distance of Top Cover Plate157mm
Bottom Cover Plate Screw (Nut) Tooth4X3/8-16UNC
Screw Center Distance of Bottom Cover Plate159mm
Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet3/4NPT
Cover Plate
Top Cover Plate Diameter289mm
Bottom Cover Plate Diameter289mm
Rubber Bellow
Rubber Bellows MAX Diameter406mm
The Working StrokeMAX 391mm to MIN 104 mm
Maximum Height391mm
Minimum Height104mm
Compression Height287mm

Our Advantage

  1. The rubber is of high quality.
  2. The plate is the steel,coated Zn,high capacity and anti-corrosion.
  3. All air spring types can be used at a working temperature between -40°C and 70°
  4. We also have our strict series quality control.
  5. OEM Manufacturing welcome: Product
  6. Sample order is available.
  7. We will reply you for your inquiry in 24 hours.
  8. After sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.

Common Applications for Air Spring

  • Various applications for the vehicle industry such as steering damping, engine vibration damping, belt tensioning damping for engines and on driver seats in commercial vehicles, etc.
  • On household products such as washing machines
  • Special shock absorbers for bicycles
  • On commercial lawn movers
  • In the medical equipment industry ie. on wheelchairs

Air Spring Delivery Time

Generally The Goods Will be send immediately by the Air/the Sea/the Express(DHL,UPS,FEDEX...)in 2-8 working days after receive your payment.And will keep you informed any news about your order process.

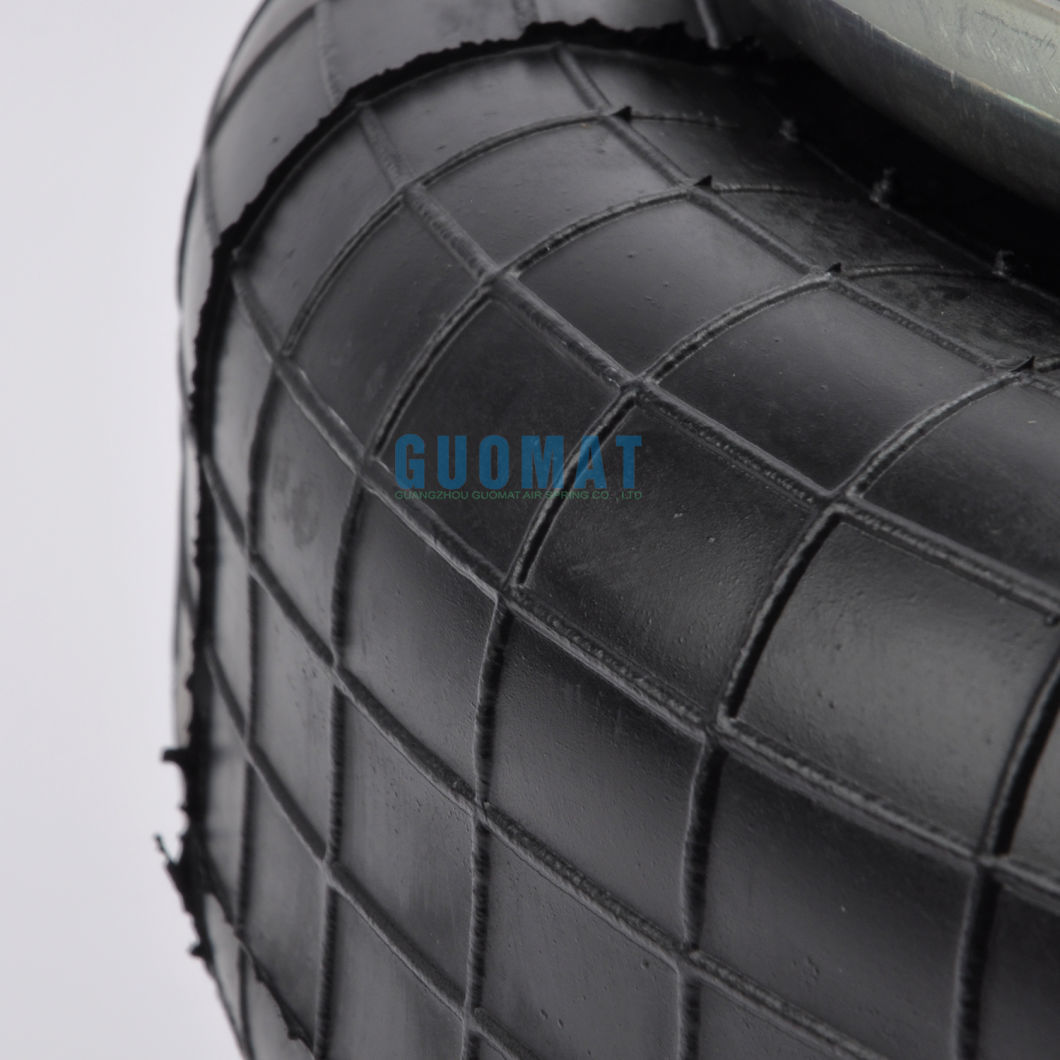

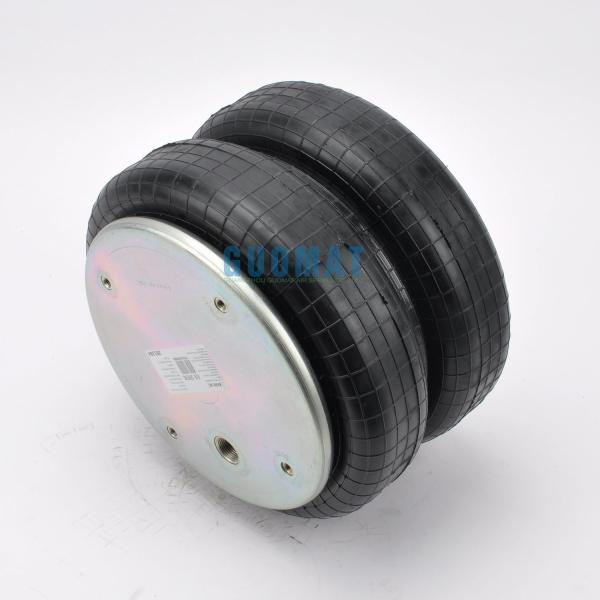

Air Spring Picture

Universal Double Bellow Air Bag Fit Shock Absorber Ride Suspension Kit W01-358-7781 Universal Double Bellow Air Bag Fit Shock Absorber Ride Suspension Kit W01-358-7781 Universal Double Bellow Air Bag Fit Shock Absorber Ride Suspension Kit W01-358-7781 Universal Double Bellow Air Bag Fit Shock Absorber Ride Suspension Kit W01-358-7781 Universal Double Bellow Air Bag Fit Shock Absorber Ride Suspension Kit W01-358-7781 Universal Double Bellow Air Bag Fit Shock Absorber Ride Suspension Kit W01-358-7781
