Guomat Air Bag Replaces Phoenix SP 1 B 07 Suspension Air Spring For
Reduce Shock
1B7070 Specification
Cover Plate
Top Cover Plate Diameter: 105 mm
Screw Center Distance of Top Cover Plate: 44.5 mm
Bottom Cover Plate Diameter: 105 mm
Screw Center Distance of Bottom Cover Plate: 44.5 mm |
Nut/Blind Nut
Top Cover Plate Screw(Nut) Tooth: 2×M8×1.25
Bottom Cover Plate Screw(Nut) Tooth: 2×M8×1.25 |
Gas Hole/Air Inlet/Air Fitting
Gas Hole: G 1/4 |
Rubber Bellow
Rubber Bellow Max Dia: 165 mm
Minimum Height: 50 mm
Maximum Height: 115 mm
Total Storke: 65 mm |
1B7070 Technical Data
Force [kN]
| Pressure p | [bar] | 3 | 4 | 5 | 6 | 7 | 8 |
| Height H [mm] | 100 | 2.2 | 3.1 | 4.0 | 4.8 | 5.7 | 6.6 |
| 90 | 2.7 | 3.6 | 4.6 | 5.6 | 6.5 | 7.5 |
| 80 | 3.1 | 4.1 | 5.1 | 6.2 | 7.3 | 8.3 |
| 70 | 3.4 | 4.5 | 5.6 | 6.7 | 7.9 | 9.0 |
| 60 | 3.6 | 4.8 | 6.0 | 7.2 | 8.4 | 9.5 |
Cross References
W01-M58-6165, W01 M58 6165, W01M586165, WO1-M58-6165, WO1 M58 6165, WO1M586165
W01-358-6166, W01 358 6166, W013586166, WO1-358-6166, WO1 358 6166, WO13586166,
FS 120-9, FS 120 9, FS120-9, FS120 9, FS 1209, FS1209
8''×1 S08101, 8'×1 S08101, 8×1 S08101
8''×1 S08100, 8'×1 S08100, 8×1 S08100
822419003, 822419008
PM/3108(8×1), PM3108(8×1), PM 3108(8×1)
WBE 300-E1, WBE 300 E1, WBE 300E1, WBE300-E1, WBE300 E1, WBE300E1
WBE 300-E2, WBE 300 E2, WBE 300E2, WBE300-E2, WBE300 E2, WBE300E2
140293, 111003, 1B-190FB,1B 190FB, 1B190FB
1S120-9 3/4 M8, 1S120 9 3/4 M8, 1S1209 3/4 M8
Applications
Rubber actuators, compared with traditional products (rigid
actuators, spring...) offer numerous advantages such as
- Flexibility (no angle or alignment problem)
- Compactness
- Power / price ratio
- No maintenance or lubrication required
- Durability
- Reliability
- Resistance to aggressive or hot conditions
Company Profile
Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the
company covers an area of 20000 square meters, registered capital
is 10 million yuan, the existing various types of professional and
technical personnel is 85 people.The company is located in
Guangzhou, about 15min's drive from Baiyun Airport. and our main
products are air spring, rubber bellows, air suspension spring, air
suspension compressor and refitted suspension system. They are
widely used in bus, truck, cabin, vehicles' seat, luxurious car and
industrial machine field.

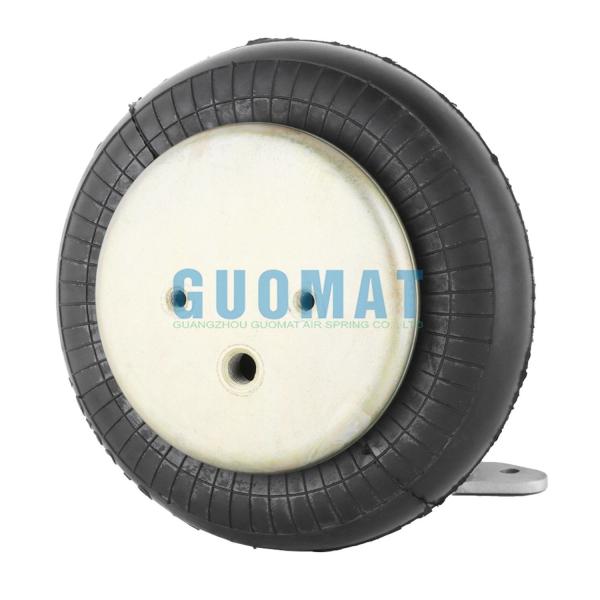

The Real Picture of 1B7070
