Firestone Air Suspension W01-358-7731 Single Convoluted For Truck Shock Absorber

GUANGZHOU GUOMAT AIR SPRING CO. , LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Firestone Air Suspension W01-358-7731 Single Convoluted For Truck Shock Absorber from wholesalers

    Buy cheap Firestone Air Suspension W01-358-7731 Single Convoluted For Truck Shock Absorber from wholesalers
    • Buy cheap Firestone Air Suspension W01-358-7731 Single Convoluted For Truck Shock Absorber from wholesalers
    • Buy cheap Firestone Air Suspension W01-358-7731 Single Convoluted For Truck Shock Absorber from wholesalers
    • Buy cheap Firestone Air Suspension W01-358-7731 Single Convoluted For Truck Shock Absorber from wholesalers
    • Buy cheap Firestone Air Suspension W01-358-7731 Single Convoluted For Truck Shock Absorber from wholesalers
    • Buy cheap Firestone Air Suspension W01-358-7731 Single Convoluted For Truck Shock Absorber from wholesalers

    Firestone Air Suspension W01-358-7731 Single Convoluted For Truck Shock Absorber

    Ask Lasest Price
    Brand Name : GUOMAT
    Model Number : 1B7731
    Certification : ISO/TS16949, ISO9001
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, Western Union
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Firestone Air Suspension W01-358-7731 Single Convoluted For Truck Shock Absorber

    Firestone Air Suspension W01-358-7731 Single Convoluted For Truck Shock Absorber


    Product Information

    Top Cover Plate Diameter: 4.50 in.
    Screw Center Distance of Top Cover Plate: 1.75 in.
    Bottom Cover Plate Diameter: 4.50 in.
    Screw Center Distance of Bottom Cover Plate: 1.75 in.
    Top Cover Plate Screw(Nut) Tooth: 3/8-16 blind nuts
    Bottom Cover Plate Screw(Nut) Tooth: 3/8-16 blind nuts
    Gas Hole: 1/4 NPT
    Rubber Bellow Max Dia: 6.5 in.
    Minimum Height: 2.0 in.
    Maximum Height: 4.5 in.
    Total Storke: 2.5 in.

    Original Equipment Manufacturer Number

    • Fire-stone Part Number:W01-358-7731
    • Fire-stone Part Number:W01 358 7731
    • Fire-stone Part Number:W013587731
    • Fire-stone Part Number:WO1-358-7731
    • Fire-stone Part Number:WO13587731
    • Fire-stone Part Number:WO1 358 7731
    • Fire-stone Part Number:w01-358-7731
    • Fire-stone Part Number:w013587731
    • Fire-stone Part Number:w01 358 7731

    Firestone Style 131 Has Other Type Air Springs

    Blind nuts, 1/4 NPT

    W01-358-7731, W01 358 7731, W013587731

    WO1-358-7731, WO1 358 7731, WO13587731

    Blind nuts, 3/4 NPTW01-358-7742, W01 358 7742, W013587742

    WO1-358-7742, WO1 358 7742, WO13587742

    Socket head aluminum bead rings(bolts, nuts, wahsers not included-use 1/4 cap screws)W01-358-0127, W01 358 0127, W013580127

    WO1-358-0127, WO1 358 0127, WO13580127

    3/4 NPT(only) upper plate, blind nuts lower plateW01-358-7729, W01 358 0127, W013580127

    WO1-358-0127, WO1 358 0127, WO13580127

    Rubber bellows onlyW01-358-0131, W01 358 0131, W013580131

    WO1-358-0131, WO1 358 0131, WO13580131


    What Are The Advantages of Our Shock Absorbers

    1. Increase driving comfort
    2. Effectively eliminate abnormal sound,noise in the driving process,jitter,make driving more comfortable
    3. Lower fuel consumption and longer life
    4. Reduce fuel consumption,prolong the life of car related chassis parts,reduce the cost of car maintenance
    5. High stability
    6. In the sharp turn,winding road,pothole road,automatic adjutment of the body constant height,to ensure comfort,maintain stability

    FAQ

    Q: Is the sample available?
    A: YES. Usually we send the samples by TNT, DHL, FEDEX or UPS, it will take around 3-7 days for our customers to receive them, but charge all customer will cost related to the samples, such as sample cost and airmail freight.


    Q:Can you print my logo on inner box and outer box?
    A: Yes. We can do it, but it has MOQ.


    Q: What's your advantage?
    A: (1) Resonable price, good service
    (2) Reliable quality, long working life
    (3) Quick and safe modes of payment
    (4) Ships items timely and quickly
    (5) Our products are exported to most countries in the world

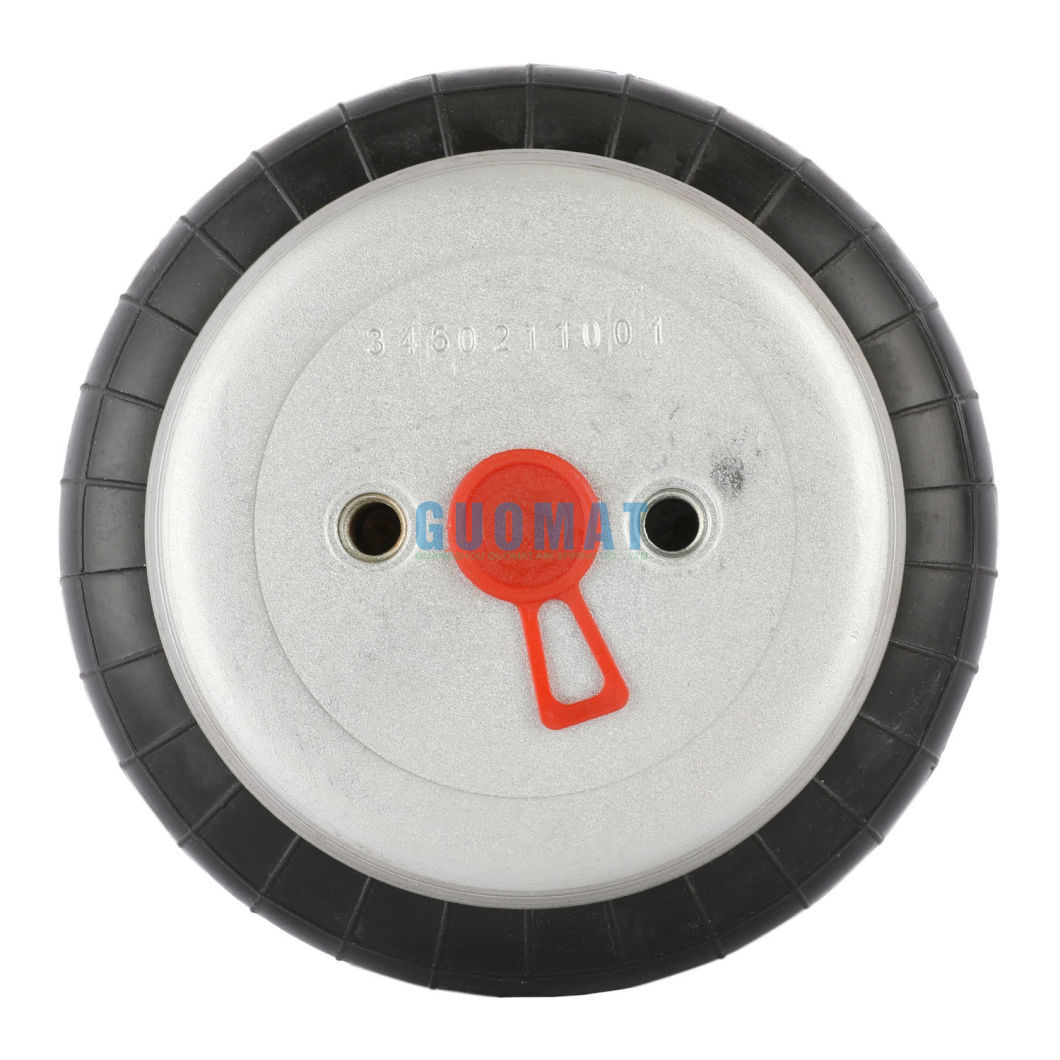

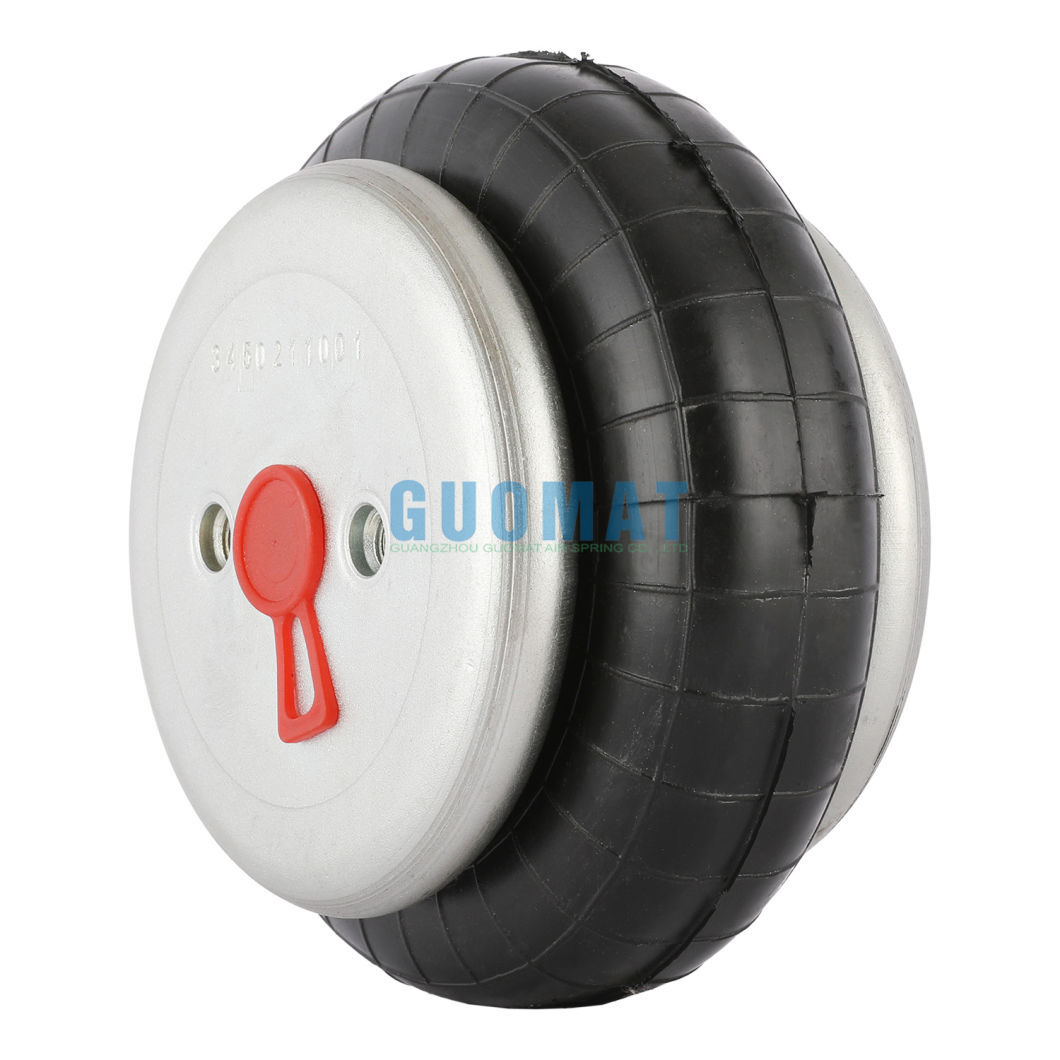

    The Real Pictures of 1B7731

    Guomat 1b7731 Corss W01-358-7731 Fire-Stone Air Bags for Truck Air SuspensionGuomat 1b7731 Corss W01-358-7731 Fire-Stone Air Bags for Truck Air SuspensionCompany Profile


    Guangzhou Guomat air spring Co., Ltd. was established in 2008 and is located in Guangzhou, the capital city of Guangdong Province. The company's production plant covers an area of 20,000 square meters and is located in Taihe Town, Baiyun District, Guangzhou City. With the continuous development of the company, it is gradually equipped with modern workshops and advanced rubber air spring equipment. It is one of the important air spring production bases in China. At the same time, Gomart used domestic advanced air spring processing equipment and introduced foreign air spring production technology, combined with the company's unique production process, and strictly implemented production in accordance with international standards to produce advanced products. All products comply with ISO9001, ISO/IS16949 standards.


    The main products of Guangzhou Guomat air spring Co., Ltd. are: rubber air springs, air suspension springs, rubber air springs for automobiles, airbags for passenger cars and trucks, industrial air springs, etc. The products cover buses, luxury cars, trucks, Commercial vehicles, rail vehicles, industrial machinery, industrial equipment and other industries. The company has hundreds of models and styles of products. At the same time, it can also carry out directional transformation and design of products according to the special needs of users, providing users with one-stop service.


    Guomat 1b7731 Corss W01-358-7731 Fire-Stone Air Bags for Truck Air Suspension


    Factory Workshop

    Guomat 1b7731 Corss W01-358-7731 Fire-Stone Air Bags for Truck Air Suspension
    Guomat 1b7731 Corss W01-358-7731 Fire-Stone Air Bags for Truck Air Suspension
