W02-358-3002 Firestone Sleeve Type Air Spring Plastic Studs Pneumatic Actuator

Product Specifications

Product Technical Data

Force F @3 Bar At Height 110 mm [kN]: 1.08

Force F @4 Bar At Height 110 mm [kN]: 1.49

Force F @5 Bar At Height 110 mm [kN]: 1.89

Force F @6 Bar At Height 110 mm [kN]: 2.31

Force F @7 Bar At Height 110 mm [kN]: 2.73

Force F @8 Bar At Height 110 mm [kN]: 3.16

Force F @ 5 Bar At Height 70 mm [kN]: 2.1

Force F @ 5 Bar At Height 90 mm [kN]: 1.93

Force F @ 5 Bar At Height 110 mm [kN]: 1.89

Force F @ 5 Bar At Height 130 mm [kN]: 1.8

Force F @ 5 Bar At Height 1500 mm [kN]: 1.44

Cross References

Style 2M1A Firestone Air Spring

• 1/8NPT,each end,plastic studs (Two Ply Bellows)

W02-358-3002, W02 358 3002, W023583002, WO2-358-3002, WO2 358 3002, WO23583002

• 1/8NPT,each end,brass studs (Two Ply Bellows)

W02-358-3004, W02 358 3004, W023583004, WO2-358-3004, WO2 358 3004, WO23583004

GUOMAT Air Bags Product Technical Support
Provides additional support for your vehicle's suspension system
Helps to reduce vehicle sagging, sway, and bottoming out
Easy to install and inflate/deflate as needed
Constructed with high-quality materials for durability and longevity
Available in a variety of sizes to fit most vehicles

GUOMAT Air Bags Product Services
Professional installation available through authorized dealers
Warranty included with product purchase
Online resources available for product information and troubleshooting
Customer service available for any questions or concerns

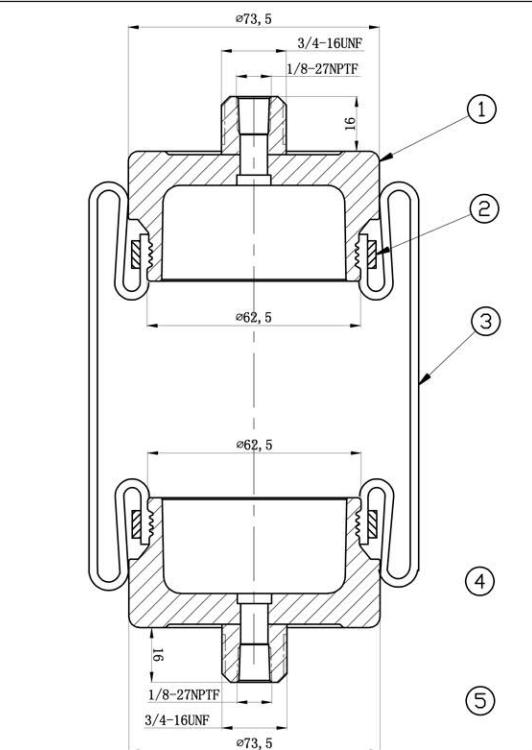

The Technical Data Drawing of G74013 Air Spring

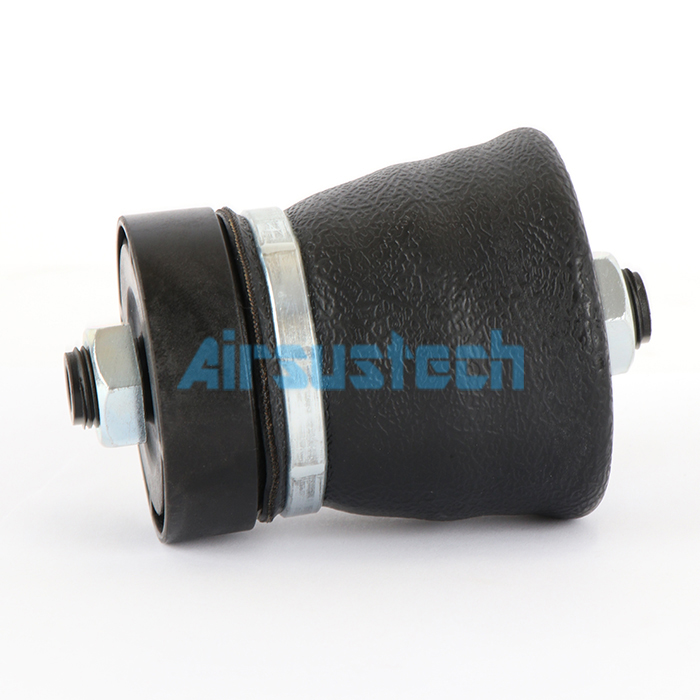

W02-358-3002 Firestone Industrial Air Spring Real Picture

Guangzhou Guomat Air Spring Co., Ltd. is located in Guangzhou, about 15min’s drive from Baiyun Airport. Our mainly products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.

GUOMAT Factory gate：

Established in 2008, Our company covers 20,000㎡ and is located in Taihe Town Baiyun District. With the rapid development of our company, we are equipped with modernized workshop and advanced rubber air springs equipments now. We are the first company who started air spring business and has become one of the largest air spring manufacturing bases in China.

In 2017, we launched a collaboration with High Tech of US customers to customize the products of our customers and the logo of our customers. Every year, there are about 10,000 orders. In continuous cooperation, the products meet the international inspection standard ISO/TS16949:2009, and the customers are very satisfied with the products produced. This is our high recognition from American customers and also gives us Great motivation.

In 2018, we started cooperation with German GmbH, mainly industrial air springs, which are suitable for industrial equipment. We have successfully developed and produced the natural air-seal of the skin to reach the 700mm flanged air spring, the customer's annual demand is a few hundred.

With the development of business and demand for customers, our company introduced business with TomLog Corporation in 2010, our strategic cooperative partner in Taiwan. Then we developed air compressor program and air spring related business, in 2015, America Goodyear Corporation met with the transfer of shares in the North American plant, our company was granted with sale agent for air springs in China, providing more choice for our customers. Our company adopts the most advanced domestic air spring processing equipment and international production technology. Combined with unique production process, our company strictly execute international standards for production and spare no efforts to create the world-class products. We will endeavor to make air spring widely used at home and abroad, and let more and more customers to enjoy the best damping effect.
