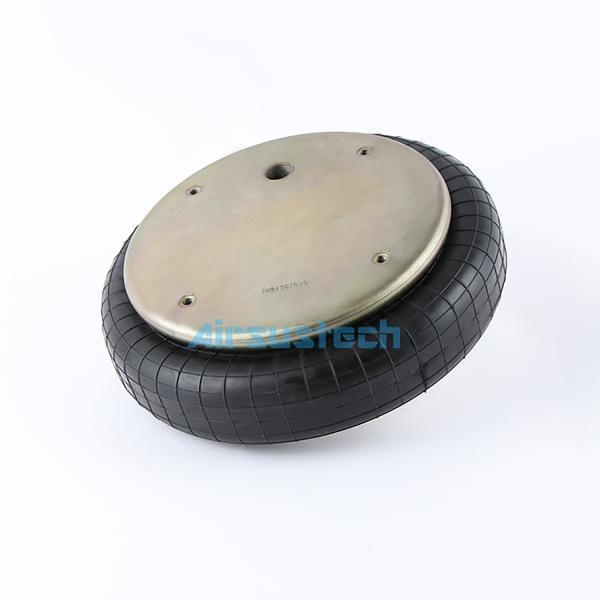

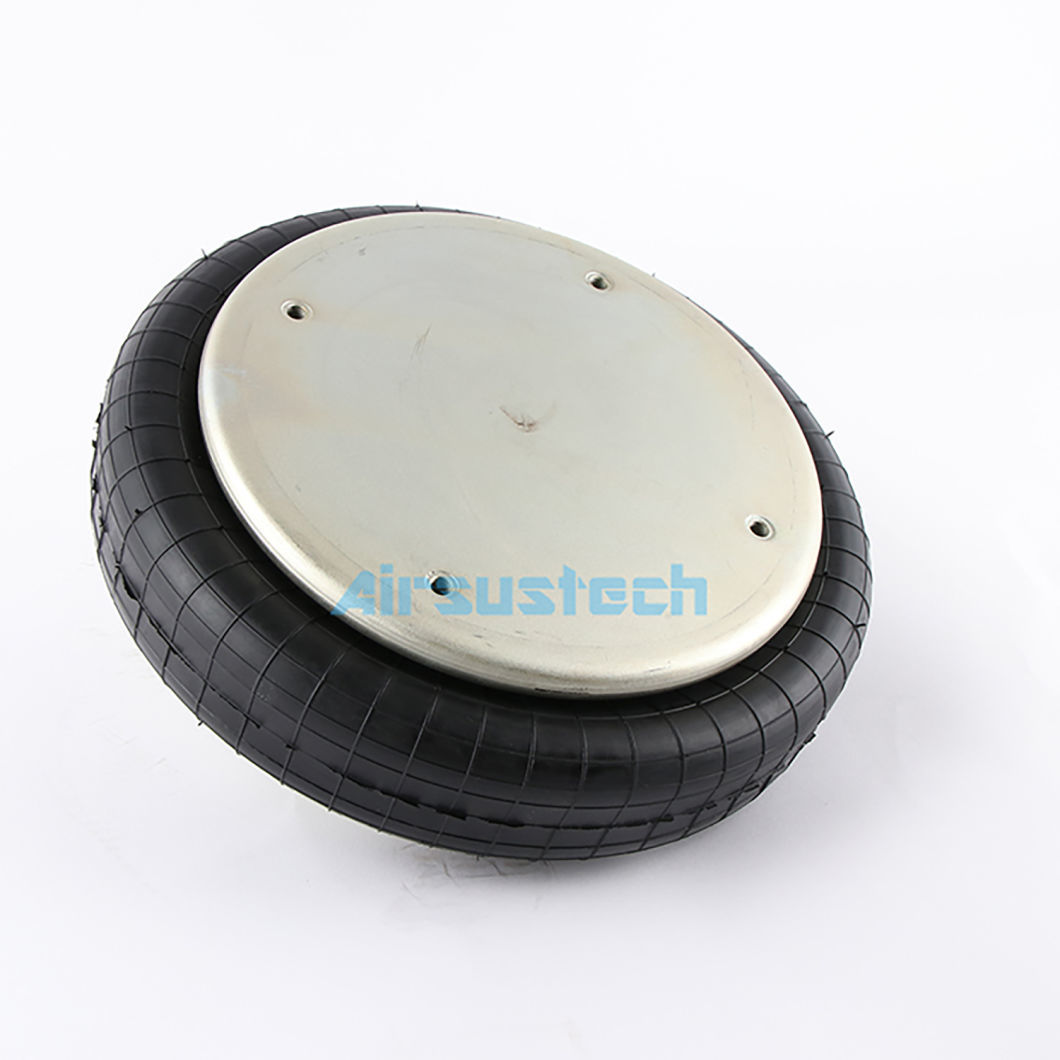

Industrial Air Bags 1B53014 G1/2 Air Inlet Rubber Bellows Air Shock Absorption
Specifications and Detailed Technical Parameters: 1B53014
Nut/blind nut |
Top plate screw (nut) teeth: 4X3/8-16UNC Bottom cover plate screw (nut) teeth: 4X3/8-16UNC |
Air hole/air inlet/air fittings |
G1/2 |
Rubber Bellows |
Rubber bellows stroke: minimum 81 mm to maximum 160 mm |
Plate diameter |
Top plate diameter (width): 289 mm Bottom cover plate diameter: 289 mm |
Bumper block/bumper block |
Without |
Belt loop/Belt loop/Girdle hoop |
Without |
Min. pressure: 0 bar
Return force to min.height: ≤300N
Overall weight with clamped plates: 6.1kg
Vibration isolation - dynamic characteristic values
Design Height H: recommended 150mm, minimum 120mm
Pressure p[bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V[l] |
Force(Load) [KN] | 18.6 | 24.9 | 31.5 | 37.9 | 44.4 | 50.8 | 11.0 |
Spring rate [N/cm] | 3650 | 4410 | 5340 | 6140 | 7220 | 7920 | |
Natural frequency [Hz] | 2.2 | 2.1 | 2.1 | 2.0 | 2.0 | 2.0 |
Pneumatic application-static characteristic values
Force F[KN]
Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [l] | |
Height H[mm] | 160 | 17.1 | 23.0 | 29.0 | 35.0 | 41.2 | 47.3 | 11.8 |
140 | 20.0 | 26.8 | 33.7 | 40.6 | 47.7 | 54.5 | 10.7 | |
120 | 22.3 | 29.8 | 37.3 | 44.9 | 52.7 | 60.2 | 9.5 | |
100 | 24.1 | 31.9 | 40.0 | 48.1 | 56.3 | 64.3 | 8.2 | |
80 | 25.3 | 33.4 | 41.9 | 50.3 | 58.8 | 67.1 | 6.6 | |
60 | 26.0 | 34.5 | 43.4 | 52.0 | 60.8 | 69.1 | 4.6 |
