    FS310-12 Continental Convoluted Bellows Air Spring 1B20 Phoenix Air Actuator

    Ask Lasest Price
    Brand Name : Contitech
    Model Number : FS310-12
    Certification : ISO/TS16949, ISO9001
    Price : USD159.9-299.9/PC
    Payment Terms : L/C, T/T, Western Union Or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 3-7 Working Days
    • Product Details
    • Company Profile

    FS310-12 Continental Convoluted Bellows Air Spring 1B20 Phoenix Air Actuator

    FS310-12 Continental Convoluted Bellows Air Spring 1B20 Phoenix Air Actuator

    Product Details


    Manufacturer:Contitech

    OE/OEM Number:FS 310-12

    FS310-12

    FS 310-12 VP

    FS 310-12 VP ECO

    FS 310-12 ECO

    FS 310-12 S VP

    FS 310-12 Repalces Phoenix 1 B20
    FS 310-12 ECO Repalces Phoenix 1 B20-4

    Technical Data

    Min.pressure: 0 bar

    Return force to min.height: ≤120N

    Overall weight,standard quality: 1.0KG

    Overall weight,High temperature quality: 1.4KG

    Minimum height: 55mm

    Maximum stroke: 120mm

    Maximum diameter: 320mm

    Installation space needed: 335mm

    Bead diameter: 172mm

    Inner-Ø sealing and mounting surface: 131mm

    Height of bead: 11mm

    Maximum loading capacity(7 bar/115mm): 26.8KN

    Maximum lifting pressure: 8 bar

    Features
    ECO = High Temp Bellow (-4 °F to 266 °F)
    CR = Chloroprene Bellow (-22 °F to 194 °F)
    Niro = Stainless Steel Bead Plates
    HP = High Pressure Bellow
    VP = Bellow Only Part
    B = Internal Bumper
    OS = Offset Air Inlet
    CA = Center Air Inlet
    X2 = Air Inlet On Top and Bottom Plate

    Other Kind of Contitech Air Bellows

    FS 100-10 VP

    FD 120-20 VP

    FS 200-10 VP ECO

    FT 960-34 VP

    FS 330-14 S ECO VP

    FS 310-12 VP ECO

    FD 120-20 S VP

    FS 960-12 VP

    FD 330-22 ECO VP

    FD 200-19 VP ECO

    FD 1710-25 VP

    FD 960-22 VP ECO

    FS 120-10 VP

    FD 1710-25 VP ECO

    FD 1330-25 VP


    Product Images

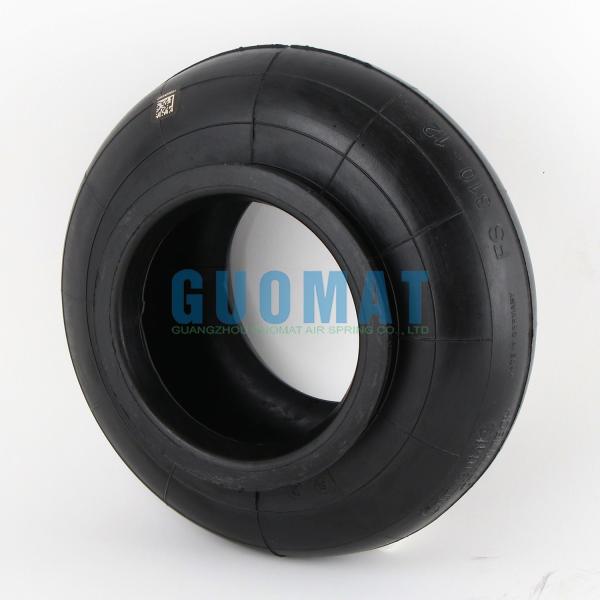

    Fs310-12 Single Convoluted Continental Bellows 12cm Max Stroke Air SpringFs310-12 Single Convoluted Continental Bellows 12cm Max Stroke Air Spring
