    FD 120-17 Contitech Pneumatic Actuator 2B-181 Airkraft Double Convoluted Air Spring

    Ask Lasest Price
    Brand Name : GUOMAT
    Model Number : 2B12017
    Certification : ISO/TS16949, ISO9001
    Price : USD59.9-69.9/PC
    Payment Terms : L/C, T/T, Western Union Or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 3-7 Working Days
    MOQ : 1 pc
    • Product Details
    • Company Profile

    FD 120-17 Contitech Pneumatic Actuator 2B-181 Airkraft Double Convoluted Air Spring

    FD 120-17 Contitech Pneumatic Actuator 2B-181 Airkraft Double Convoluted Air Spring


    Refer No.

    Contitech FD120-17
    Contitech FD12017
    Contitech FD120 17
    Contitech FD 120-17
    Contitech FD 120 17
    Contitech FD 12017
    Firestone: W01-M58-6353
    Firestone: W01 M58 6353
    Firestone: W01M586353
    Firestone: WO1-M58-6353

    Firestone: WO1 M58 6353
    Firestone: WO1M586353
    Firestone: Wo1-M58-6353
    Firestone: Wo1 M58 6353
    Firestone: Wo1M586353
    Firestone: wo1-M58-6353
    Firestone: wo1 M58 6353
    Firestone: wo1M586353
    Airkraft:113054
    Airkraft:2B-181
    Airkraft:2B 181

    Specifications and Detailed Technical Parameters: 2B12017
    • Nut/blind nut
    Top plate screw (nut) teeth: 2×M8×1.25
    Screw (nut) teeth of the bottom cover plate: 2×M8×1.25
    • Air hole/air inlet/air fittings
    Air hole/air inlet: G1/4
    • Cover plate
    The Diameter Of The Top Plate: 135 mm
    The Diameter Of The Bottom Cover: 135mm
    • Bell rubber bellows
    MAX. Rubber Bellow Diameter: 215mm
    Height: 167mm
    • Bumper block/bumper block
    Without bumper block
    • Belt loop/Belt loop/Girdle hoop

    With one piece of belt loop/girdle hoop


    W01-M58-6353 Firestone Information
    Style: 26
    Max stroke: 183 mm
    Max load at 7 bar: 15.94 kN
    Max diameter at 7 bar: 218 mm
    Max height: 270 mm
    Min height: 71 mm
    Recommended max working height: 220 mm
    Plate diameter: 135 mm
    Mounting thread: M8 x 1.25
    Plate material: galvanized steel
    Air connection: BSP 1/4"
    Temperature range: -40 to + 70°C


    Description

    Firestone Assembly

    Style 26

    Blind nuts,1/4 BSP

    W01-M58-6353

    Blind nuts,3/4 BSP

    W01-M58-6387

    Two Ply Bellows

    Countersunk steel bead rings,40mm bolts,nuts,washers

    W01-M58-6988

    Rubber bellow only

    W01-358-0142

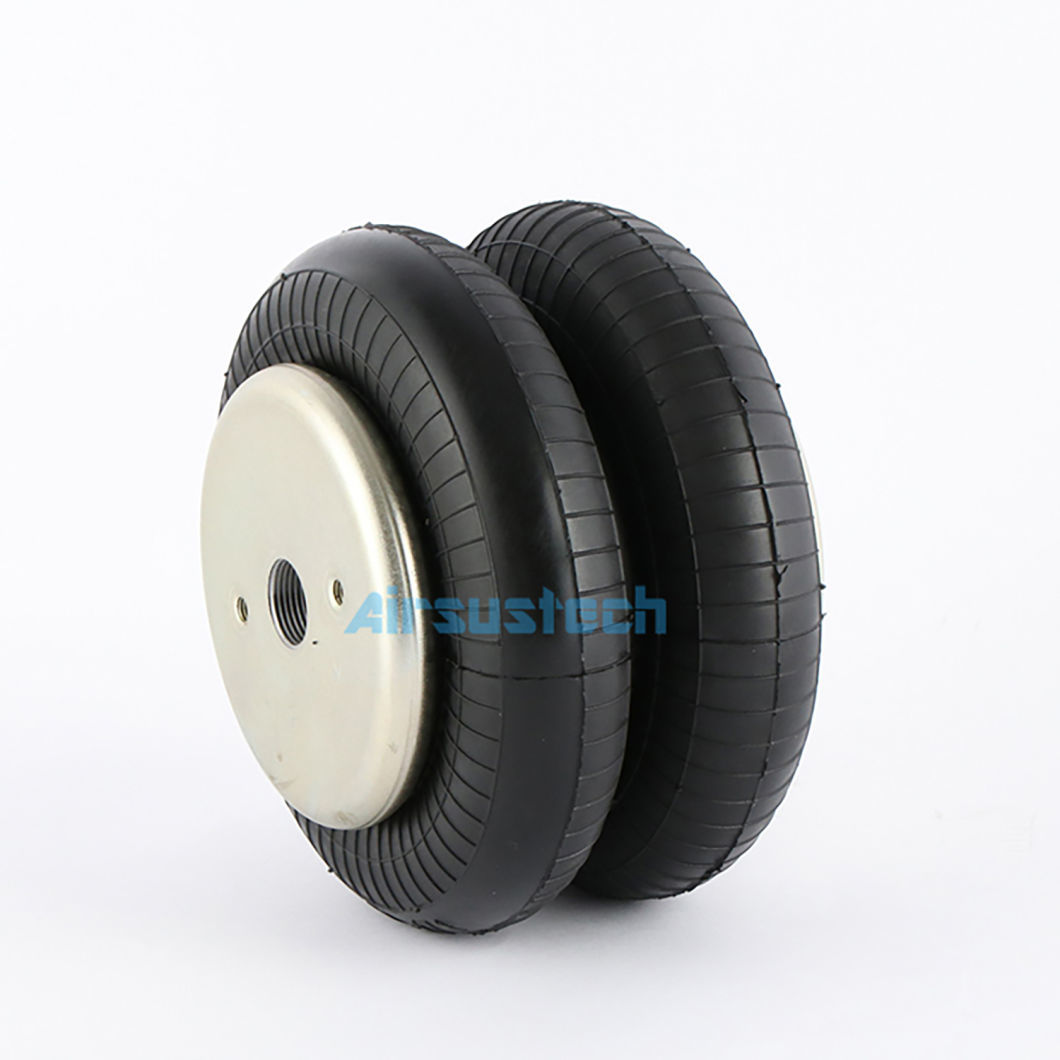

    The related picture of 2B12017

    Double Convoluted Suspension Air Spring Fire-Stone W01-M58-6353 G1/4 Pneumatic Actuator

    Company Profile

    Guangzhou Guomat air spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and production of automotive air springs. It is located in the beautiful flower city of Guangzhou. With modern workshops and advanced rubber air spring manufacturing equipment, it is one of the current air spring production bases in China. Our products are mainly used in the bases of commercial vehicles, passenger cars, and industrial machinery and equipment. The main products are: rubber air springs, passenger car and truck airbags, industrial airbags, air springs for papermaking machinery, large washing machines, rubber air springs for cars, etc. There are thousands of models and styles, and can also be customized according to customer requirements. Or the customer's existing product specifications to design and produce.
    Double Convoluted Suspension Air Spring Fire-Stone W01-M58-6353 G1/4 Pneumatic Actuator


    Factory workshop
    Double Convoluted Suspension Air Spring Fire-Stone W01-M58-6353 G1/4 Pneumatic ActuatorDouble Convoluted Suspension Air Spring Fire-Stone W01-M58-6353 G1/4 Pneumatic Actuator

    FAQ
    Q1:Can you produce the product according to the samples?
    A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

    Q2: What is your sample policy?
    A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

    Q3: What certification does your product pass?
    A: Our products are certified to ISO/TS16949:2009 international quality standards. Please rest assure that we have very strict Quality Control Systems.

    Q4 : Can I use my own logo?
    A:Sure. We can do as per the customer's requirements.
