Brand Name : | GUOMAT |
Model Number : | 1K130070 |
Certification : | ISO/TS16949:2009 |
Price : | USD59.9-69.9/PC |
Payment Terms : | L/C, T/T, Western Union Or Others |
Supply Ability : | 1000PCS/Week |
Delivery Time : | 3-7 Working Days |
Single Small Vibration Industrial Air Spring GUOMAT 1K130070 Refer
To Goodyear 1B5-500 With Aluminum Plate
OEM Manufacturer:
GUOMAT 1K130070
Goodyear Original:1B5-500
Goodyear Original:1B 5-500
Goodyear Bellows Number:579-912-500-00000
Goodyear Bellows Number:579-912-500
Goodyear Bellows Number:579 912 500
Goodyear Bellows Number:579912500
Guomat 1K130070 Industrial Convoluted Air Spring Specifications
Nut / Blind Nut
Top Cover Plate Screw number: 2 pcs
Bottom Cover Plate Screw number : 2 pcs
The Distance of Nut:44.5 mm
The Screw Of Nut: M8
Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : G1/4
Cover Plate
Top Cover Plate Diameter: 85 mm
Bottom Cover Plate Diameter: 85 mm
Rubber Bellows
Rubber Bellows Through Diameter: 130 mm
In 0.7 pa,Rubber Bellows Diameter :150 mm
The Working Stroke : MIN 50 mm to MAX 100 mm
Rubber Bellows Design Height :70 mm
Bumper block / Buffer block
Without Bumper Block
Girdle Hoop / Girdle Ring
Without Piece Of Girdle Hoop
The shipper needs an air suspension device.
* Driver comfort is higher.
* Increase resale value.
* Protect hinges, lamps, rivets and all trailer hardware.
The reason for the increase in air suspension usage:
* Suspension manufacturers have built a greater degree of
durability,
Longer warranty period.
* Requires greater axis offset.
Air springTrucks, trailers and buses
Super-Cushion® air spring for truck, trailer bus, and cab and seat
spring protection
Goods, providing constant trailers and providing long-term,
trouble-free service.
Super-Cushion® air springs provide new high capacity for your
trucks, trailers and buses
And long life They offer a quiet, buffering ride. Trucks, trailers
and buses
The body is longer than the steel spring, because the vibration is
smaller. driver
Ride more comfortable, become exhausted, remain vigilant. plus
The goods have better shock and vibration protection. Whenever you
want to add
A shaft, Super-Cushion® air spring is suitable.
Goodyear Single Convoluted Air Spring
Bellows Number | Goodyear Numbers | Cross Numbers |
578-91-3-301 | 1B12-301 | FS 330-11 468 W01-358-7009 |
578-91-3-301 | 1B12-302 | W01-358-6920 W01-358-7043 |
578-91-3-301 | 1B12-306 | |
578-91-3-301 | 1B12-313 | FS 330-11 474 W01-358-7008 |
578-91-3-301 | 1B12-322 | FS330-11 467 |
578-91-3-351 | 1B14-350 | FS530-14 442 W01-358-7103 |
578-91-3-351 | 1B14-351 | FS530-14 447 W01-358-7104 W01-358-7105 |
578-91-3-351 | 1B14-373 | |
578-91-3-352 | 1B14-358 | FS530-14 339 W01-358-7112 |

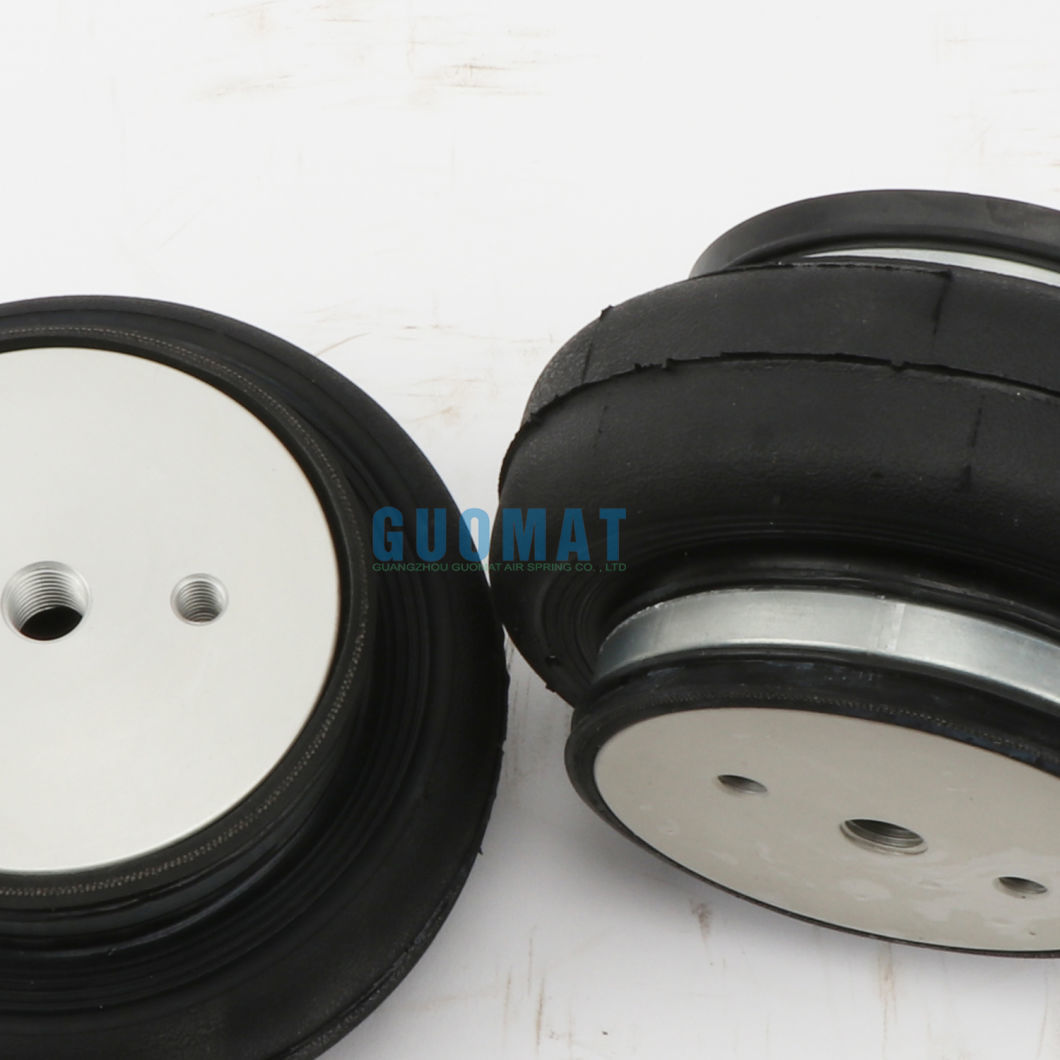

GUOMAT 1K130070 Related Physical Pictures
![]() |
