    Rubber Convoluted Air Spring 3B7994 Cross Goodyear 3B12-328 Helper Bag

    Ask Lasest Price
    Brand Name : GUOMAT
    Model Number : 3B7994
    Certification : ISO/TS16949:2009
    Price : USD69.9-79.9/PC
    Payment Terms : L/C, T/T, Western Union Or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 3-7 Working Days
    • Product Details
    • Company Profile

    Rubber Convoluted Air Spring 3B7994 Cross Goodyear 3B12-328 Helper Bag

    Rubber Convoluted Air Spring 3B7994 Cross Goodyear 3B12-328 Helper Bag

    Refer Number:


    Firestone: W01-358-7994 / WO1-358-7994

    Firestone: W01 358 7994 / WO1 358 7994

    Firestone: W013587994 / WO13587994

    ContitechFT 330-29 546

    ContitechFT 330 29 546

    ContitechFT330-29 546

    Contitech64572

    Goodyear 3B12-328

    Goodyear 3B12 328

    Goodyear 3B12328

    Goodyear 578-93-3-100

    Goodyear 578 93 3 100

    Goodyear 578933100

    Triangle 4546

    Triangle 6364

    Watson&chalin AS-0019-F

    Euolid/meritor After market E-FS7994


    Specifications and Detailed Technical Parameters: 3B7994


    Min. pressure: 0 bar

    Return force to min.height: ≤400N

    Overall weight with clamped plates: 5.9kg


    Nut/blind nut

    Top plate screw (nut) teeth: 3/8-16UNC,3/4-16UNC

    Bottom cover plate screw (nut) teeth: 2×3/8-16UNC
    The screw center distance of the Top cover plate: 140 mm
    The screw center distance of the bottom cover plate: 157.5 mm

    Air hole/air inlet/air fittings

    1/4NPTF
    The air inlet/air hole/air fitting is combined with the screw on the to plate

    Rubber Bellows

    Rubber bellows stroke: 130mm-460mm
    Plate diameter

    Top plate diameter (width): 231 mm

    Bottom cover plate diameter: 231 mm

    Bumper block/bumper block

    With

    Belt loop/Belt loop/Girdle hoop

    Two pieces of belt loop/Girdle hoop

    Pipeline air spring using steps


    1, before use: first connect the air spring of the pipeline with the inflatable equipment accessories, and do a leak test. Put the filled pipe air spring into the basin filled with water and hold it down to see if there are bubbles. No bubbles can be used.


    2, use: the pipe air spring is fully into the pipe, the pipe air spring nozzle with pipe, pressure gauge, air pump and other inflating tools connected, and then in accordance with the scale on the pressure gauge to inflate. To check whether the silt in the pipeline is clean, the inner wall must be smooth, there should be no burr, otherwise it will puncture the air bag.


    3, after use: open the valve of the pipe air spring, slowly deflate, and then pull out the pipe air spring vertically. Pay attention not to be pierced by something near the pipe air spring and affect the next use.

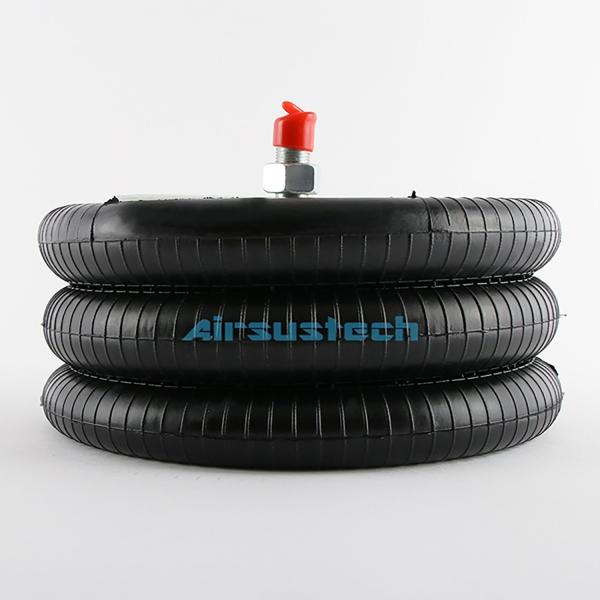

    The related picture of 3B7994
    Rubber Convoluted Air Spring 3b7994 Cross Goodyear 3b12-328 Helper Bag
