    Firestone W01-358-7564 Single Bellow Air Spring 1B8X4 Industrial Air Suspension Bags

    Ask Lasest Price
    Brand Name : GUOMAT
    Model Number : 1B8X4
    Certification : ISO/TS16949:2009
    Price : USD49.9-59.9/PC
    Payment Terms : L/C, T/T, Western Union Or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 3-7 Working Days
    • Product Details
    • Company Profile

    Firestone W01-358-7564 Single Bellow Air Spring 1B8X4 Industrial Air Suspension Bags

    Firestone W01-358-7564 Single Bellow Air Spring 1B8X4 Industrial Air Suspension Bags

    Product Description


    Item Name : Steel Single Convoluted Air Bag

    Product Number : 1B 8x4

    OEM Number : W01-358-7564 ; 1B8-550 ; FS120-10

    Factory Warranty : 12 Months

    Product Material : Natural Rubber and Steel

    Package : Strong Carton Box

    Delivery Time : 2-8 working day

    Spring Weight : 2.4KG


    Product Parameters
    Top Cover Plate Diameter : 135mm
    Bottom Cover Plate Diameter : 135mm
    Top Cover Plate Screw(Nut) Tooth : 2x3/8-16UNC
    Screw Center Distance of Top Cover Plate : 70mm
    Bottom Cover Plate Screw(Nut) Tooth : 2x3/8-16UNC
    Screw Center Distance of Bottom Cover Plate : 70mm
    Gas Hole : 1/4 NPTF
    The Rubber Bellow MAX Diameter : 230mm
    The Working Stroke : MAX 140mm To MIN 50mm
    Maximum Height : 140mm
    Minimum Height : 50mm

    Compression Height : 90mm


    Pneumatic application – static characteristic values

    Force F [kN]

    Pressure pbar345678Vol.V(I)
    Height H [mm]1204.25.67.28.410.211.72.1
    1104.86.68.29.911.613.42
    1005.67.49.211.213.1151.8
    906810.112.214.216.41.6
    806.58.610.913.215.317.61.4
    706.89.211.413.816.118.41.3
    607.19.41214.416.619.21.1

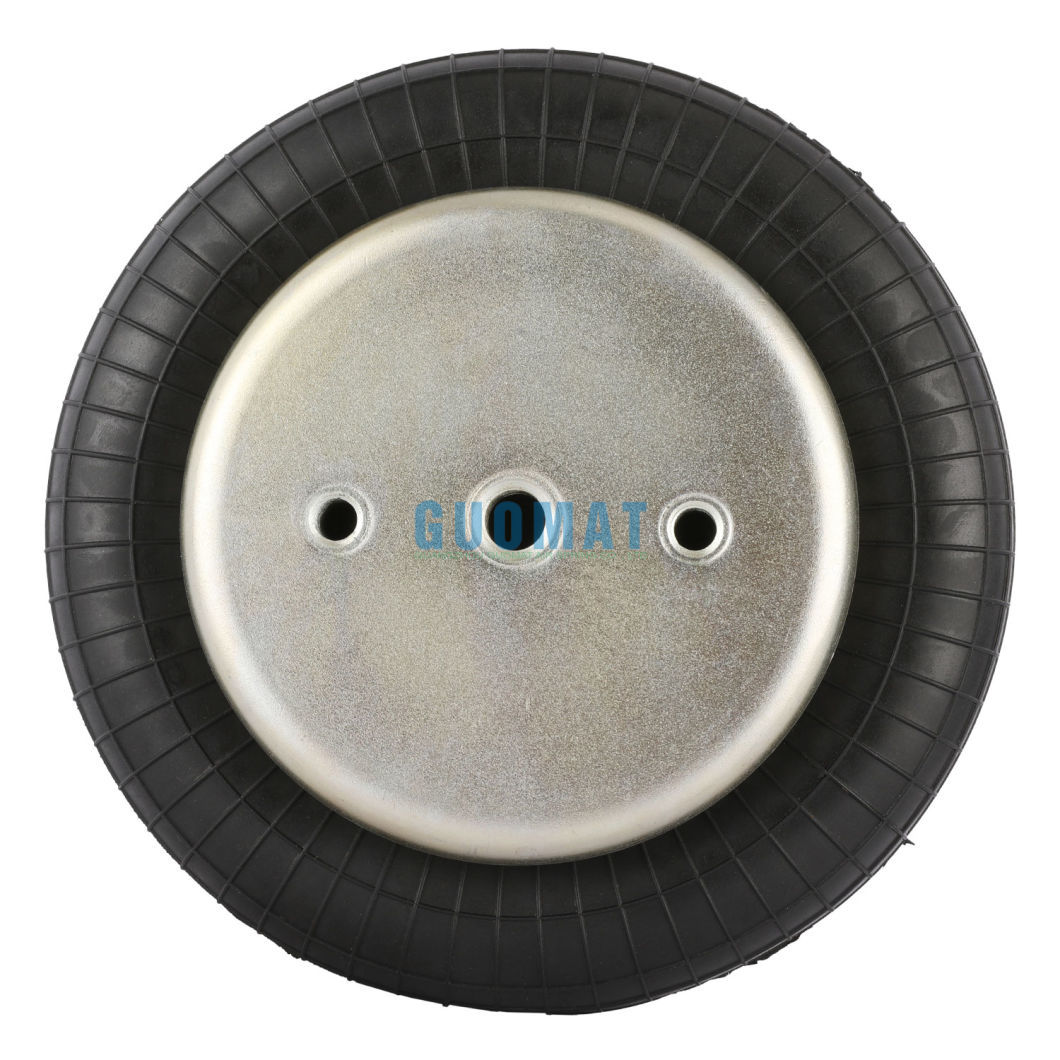

    Detailed Photos

    Fire-Stone W01-358-7564 1b8X4 Single Bellow Air SpringFire-Stone W01-358-7564 1b8X4 Single Bellow Air SpringFire-Stone W01-358-7564 1b8X4 Single Bellow Air Spring
