Industrial Equipment Vehicle Rubber Air Spring Convoluted Type Firestone W01-358-6910

GUANGZHOU GUOMAT AIR SPRING CO. , LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Industrial Equipment Vehicle Rubber Air Spring Convoluted Type Firestone W01-358-6910 from wholesalers

    Buy cheap Industrial Equipment Vehicle Rubber Air Spring Convoluted Type Firestone W01-358-6910 from wholesalers
    • Buy cheap Industrial Equipment Vehicle Rubber Air Spring Convoluted Type Firestone W01-358-6910 from wholesalers
    • Buy cheap Industrial Equipment Vehicle Rubber Air Spring Convoluted Type Firestone W01-358-6910 from wholesalers
    • Buy cheap Industrial Equipment Vehicle Rubber Air Spring Convoluted Type Firestone W01-358-6910 from wholesalers
    • Buy cheap Industrial Equipment Vehicle Rubber Air Spring Convoluted Type Firestone W01-358-6910 from wholesalers

    Industrial Equipment Vehicle Rubber Air Spring Convoluted Type Firestone W01-358-6910

    Ask Lasest Price
    Brand Name : GUOMAT
    Model Number : 2B5248
    Certification : ISO/TS16949:2009
    Price : USD59.9-69.9/PC
    Payment Terms : L/C, T/T, Western Union Or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 3-7 Working Days
    • Product Details
    • Company Profile

    Industrial Equipment Vehicle Rubber Air Spring Convoluted Type Firestone W01-358-6910

    Industrial Equipment Vehicle Rubber Air Spring Convoluted Type Firestone W01-358-6910


    Product details
    Cross references
    FirestoneW01-358-6910Contitech

    FD200-19 320

    Goodyear2B9-200Goodyear578423202
    Triangle6325/4320TaurusKF218-6910

    Original parts
    Brake&WheelM3501DinaA812719/AZ812719
    Dayton3546910LelandSc2011
    Navistar554783C1HendricksonS8768/458433
    Ridewell1003586910CSAF Holland57006910
    Trailers De133128Tuthill1371
    Watson&ChalinAS-0001Watson&ChalinAS-0156G
    ItemValue
    OEM.NO.W01-358-6910
    TypeAir Spring
    Warranty12 Months
    ColorBlack
    Place of OriginGuangzhou,China
    CertificationISO/TS16949:2009
    MaterialRubber+Steel
    PackingNeutral Packing
    MOQ1 Pcs
    QualityHigh-Quality
    PositionAuto/Truck parts/Industrial equipment
    ApplicationAuto Suspension Systems

    2B200 Durable Fire-stone Suspension Spring Technical Data


    Nut / Blind Nut
    Top Cover Plate Screw (Nut) Tooth : 2X3/8-16UNC
    Screw Center Distance of Top Cover Plate : 89 mm
    Bottom Cover Plate Screw (Nut) Tooth :
    2X3/8-16UNC
    Screw Center Distance of Bottom Cover Plate : 89 mm

    Gas Hole / Air inlet / Air Fitting

    Gas Hole / Air inlet : 1/4 N P.T.F. / 1/4NPTF

    Screw and Gas Hole Distance of Top Cover Plate:44.5mm

    Cover Plate

    Top Cover Plate Diameter: 160 mm
    Bottom Cover Plate Diameter: 160 mm

    Rubber Bellows
    Rubber Bellows MAX Diameter: MAX.251mm

    Rubber Bellows Natural Diameter :224mm
    The Working Stroke : MAX 260 mm to MIN 75 mm
    Maximum Height : 260 mm
    Minimum Height :75 mmx
    Compression Height :185 mm


    We also have many sizes of air springs, if you need them, please contact me.


    ContitechGoodyearFire-stonePhoenix
    928N8042W01-095-02282E23A
    943N9001W01-095-0189
    973N8012W01-095-01981F21A
    945N9014W01-095-00631E21C
    975NW01-095-04371E10
    W01-095-0294
    W01-358-9391
    4913NP021R14-753W01-095-05001D28H-16
    1R14-869
    4159NP06W01-M58-0736
    810NTB1R14-713W01-M58-07491DK28A4
    4022NP021R11-709W01-M58-0756
    4022NP021R11-709W01-M58-0756
    836MBW01-M58-07751DF25-4
    836MB1R12-700W01-M58-07761DF25-1
    836M2K11R12-711W01-M58-87211DF25-13
    887M1R11-796W01-M58-0780
    889MK2W01-M58-0781
    W01-M58-0918
    4004NP02W01-M58-0919
    4004NP02W01-M58-0919
    6603NP02
    4183NP23
    4883N1P07
    6609NP01

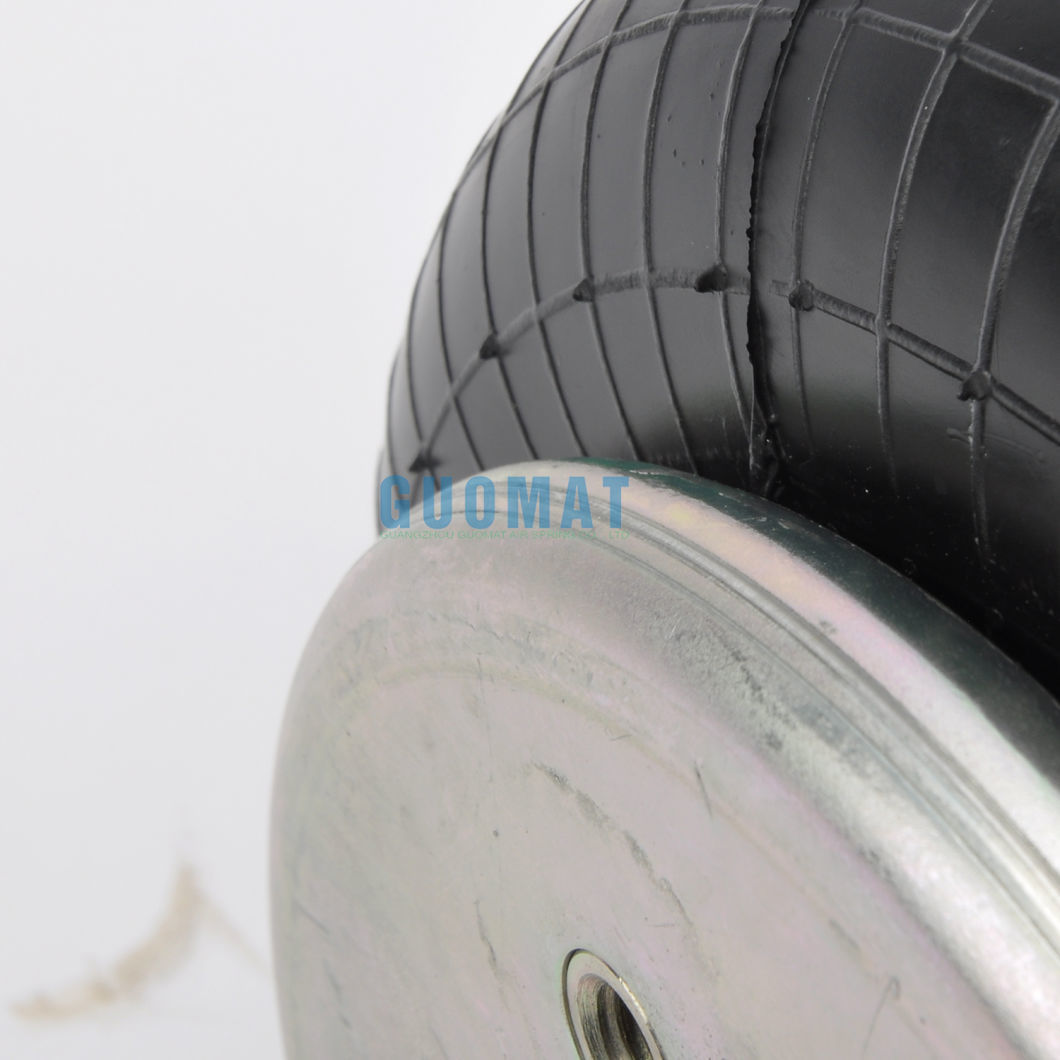

    Product Picture
