    Single Rubber Convoluted Air Spring W01-M58-6165 Firestone Air Bags Festo EB-215-80

    Ask Lasest Price
    Brand Name : GUOMAT
    Model Number : 1B1209
    Certification : ISO/TS16949:2009
    Price : USD49.9-59.9/PC
    Payment Terms : L/C, T/T, Western Union Or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 3-7 Working Days
    • Product Details
    • Company Profile

    Single Rubber Convoluted Air Spring W01-M58-6165 Firestone Air Bags Festo EB-215-80


    Single Rubber Convoluted Air Spring W01-M58-6165 Firestone Air Bags Festo EB-215-80


    OEM NO.


    CotitechFS 120-9
    CotitechFS120-9
    CotitechFS 120 9
    CotitechFS120 9
    Dunlop(FR)8''1S08101
    Dunlop(FR)8''1 S08101
    Bos ch8224 19003
    Bos ch822419003
    Fes toEB-215-80
    Fes toEB 215 80
    Fes toEB215 80
    Fes toEB21580
    WeformaWBE 300-E1
    WeformaWBE 300 E1
    WeformaWBE300-E1
    WeformaWBE300 E1
    WeformaWBE300E1
    Fire stone

    W01-M58-6165

    Fire stone

    WO1M586165

    Fire stone

    WO1-M58-6165

    Fire stone

    W01M586165

    NorgrenPM/31081(8×1)
    Airtech140293
    Airtech111003
    Airtech1B-190FB
    Megatech1S120-9 3/4 M8
    Megatech1S120 9 3/4 M8
    Megatech1S120 9 3/4M8

    Specifications and Detailed Technical Parameters:AIRSUSTECH 1B1209

    • Nut/blind nut

    Top plate screw (nut) teeth: 2XM8x1.25

    The screw center distance of the top cover plate: 70mm

    Screw (nut) teeth of the bottom cover plate: 2XM8x1.25

    The screw center distance of the bottom cover plate: 70 mm

    • Air hole/air inlet/air fittings

    Air hole/air inlet: G3/4

    The screw center distance between the air hole and the nut: 30mm

    • Cover plate

    Top plate diameter: 135 mm

    Diameter of the bottom cover: 135 mm

    • Bell rubber bellows

    Maximum diameter of rubber bellows: 215 mm

    Natural diameter of rubber bellows: 90 mm

    Working stroke: minimum 50 mm to maximum 115 mm

    Maximum height: 115 mm

    Minimum height: 50 mm

    • Bumper block/bumper block

    No bumper block

    • Belt loop/Belt loop

    With belt loop: No belt loop


    Why can rubber air spring replace pneumatic or hydraulic cylinder block

    Low design height: Compared to conventional cylinders, the airbag air spring has no piston rod, which greatly reduces the design height and makes the structure more compact.

    Low purchase cost: compared with the traditional cylinder, the airbag air spring not only has low purchase cost, but also can be reduced due to its long service life and no maintenance.

    Economical and simple installation: when not inflated, the air bag spring installation is simple and quick, thus saving time and cost. Moreover, the product has good elasticity and can compensate for small offset.

    Allow transverse eccentricity: the air bag air spring transverse eccentricity up to 30mm, in this can still maintain the reliability of the work. Unlike cylinders or hydraulic cylinders, airbag cylinders do not have seals that can jam or wear out, and they do not require the installation of sophisticated guides susceptible to dust and other impurities.

    Friction-free, maintenance-free: even in poor working conditions, the air bag spring can work effectively. Because there are no friction parts (seals) in the air bag cylinder, it will not wear even in the environment of dust, particles or precipitation.

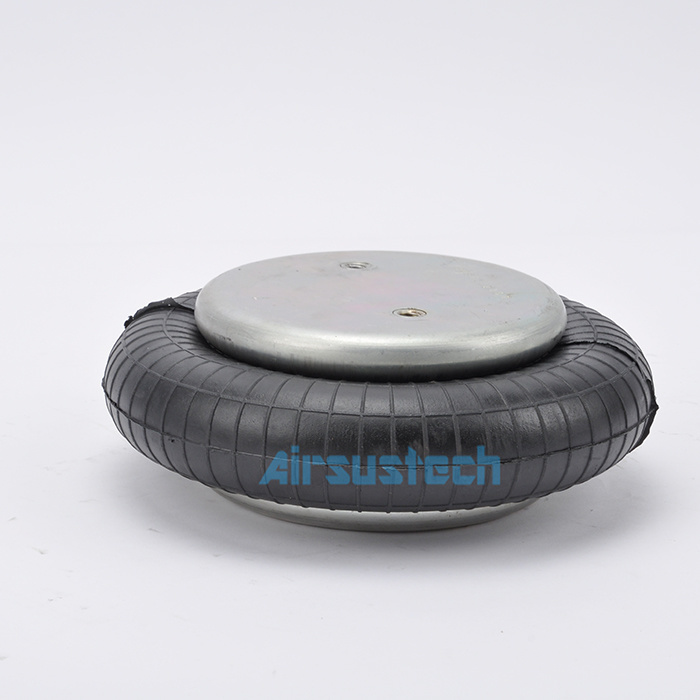

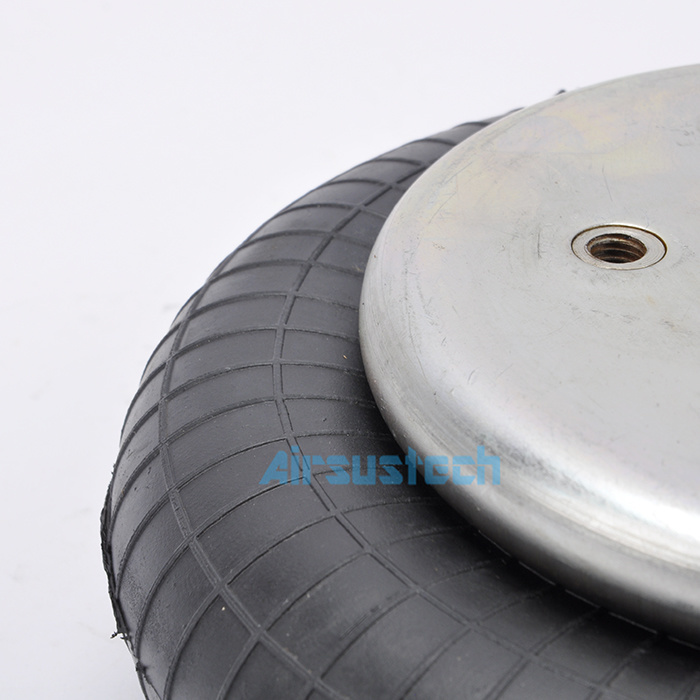

    The related picture of 1B1209

    Single Rubber Convoluted Air Spring W01-M58-6165 Fire Stone Air BagsSingle Rubber Convoluted Air Spring W01-M58-6165 Fire Stone Air Bags
