High Pressure Ability W01-358-7008 Firestone Air Spring 1B12-300
Goodyear Airbag
GUOMAT 1B12-300 / 1B12- 313/ W01-358-7008 Specifications and
Technical Data
Order Number: W01-358-7008 / WO13587008 / WO1-358-7008 / W013587008
/ W01 358 7008
Firestone Air Spring Part Number:W01-358-7008 / WO13587008 /
WO1-358-7008 / W013587008 / W01 358 7008
Loading Capacity at 20 psig: 1,300 lbsf
Loading Capacity at 60 psig: 3,900 lbsf
Loading Capacity at 90 psig: 5,850 lbsf
Operating Temperature: 57Cº to -54Cº
Compressed Height: 2.12
Top Cover Plate Diameter: 9.00 inches / 231mm
Bottom Piston Number: 3212 or 3183
Bottom Cover Plate Diameter: 9.00 inches / 231mm
Screw Center Distance : 157.5 mm
Distance Gas Hole Between Nut 73 mm
Top Cover Plate Screw (Nut) Tooth : 2pcsX 3/8-16UNC
Bottom Cover Plate Screw (Nut) Tooth : 2pcsX 3/8-16UNC

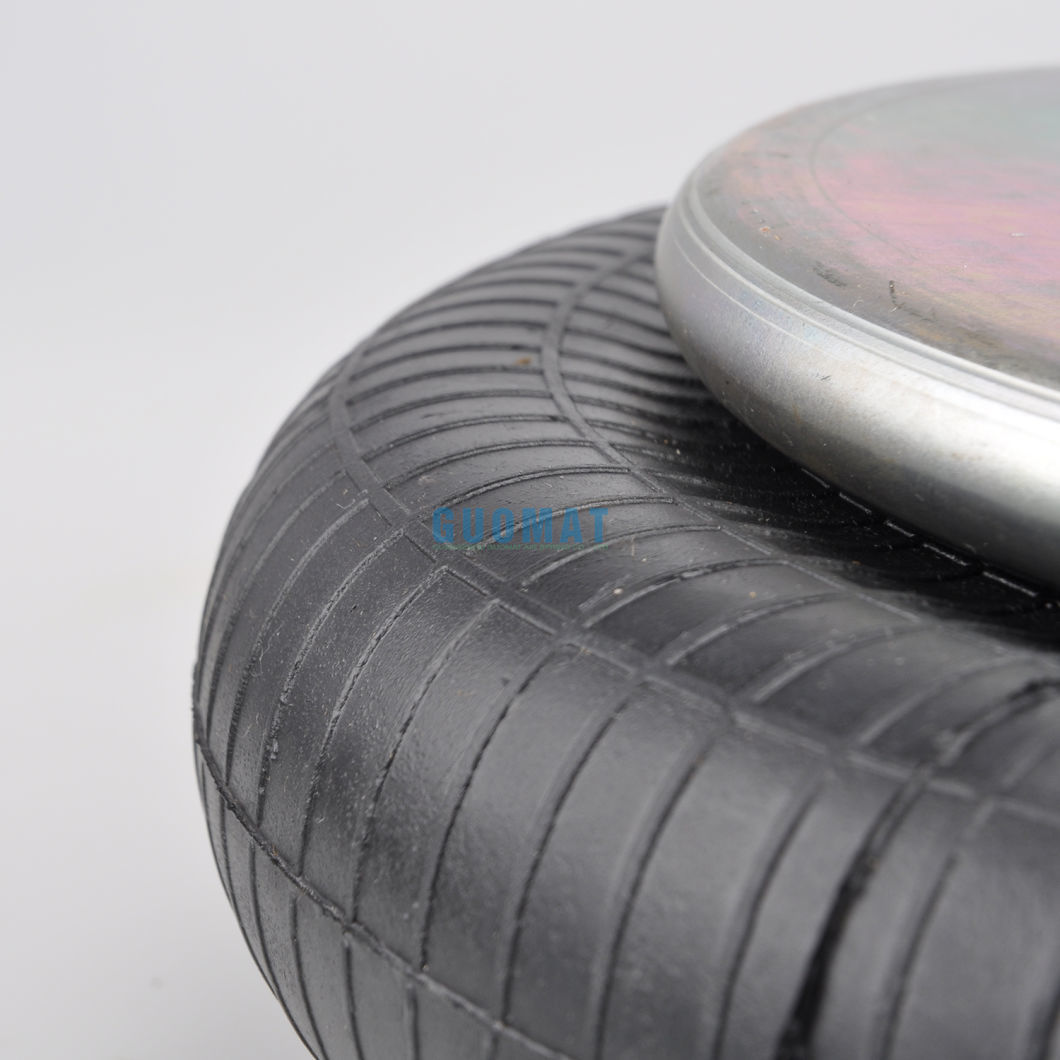

Rubber Bellows MAX Diameter(Maximum Diameter): 12.9 inches / 325 mm
Rubber Bellows Natural Diameter 300 mm
The Working Stroke : MAX 160 mm to MIN 55 mm
Compressed Height: 2.12 inches / 105 mm

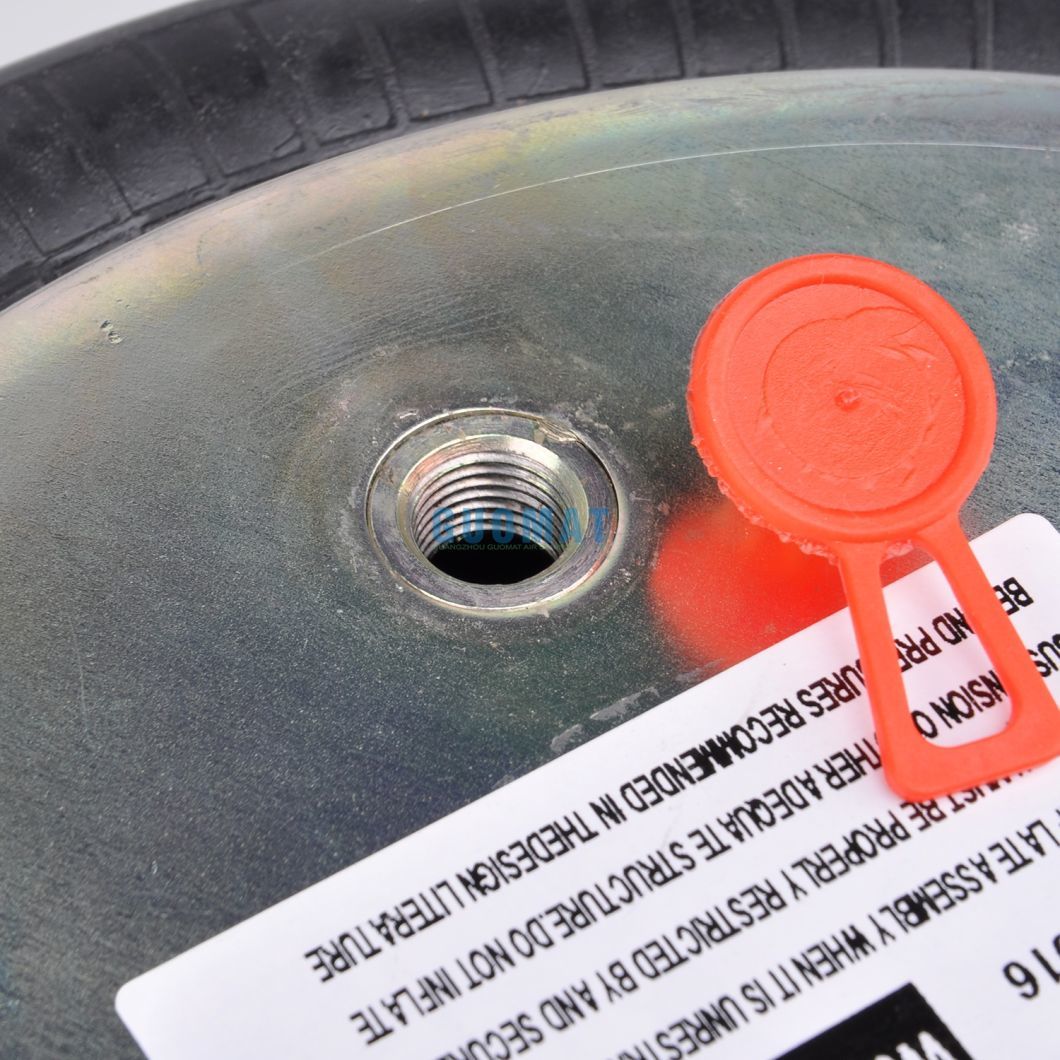

Gas Hole / Air inlet : 1/4 N P.T.F.
Fire stone Air Spring Bellows Number: 19
Goodyear Part Number:1B12-300 / 1B12-313
Goodyear Bellows Number:578-91-3-301 / 578 91 3 301 / 578913301
Triangle Part Number:4474
Triangle Bellows Number:6374
Holland (Neway) Number:905-57-226
OEM Original Equipment Manufacturer:
| goodyear | 1B12-300/313 |
| firestone air spring | W01-358-7008 |
| contitech | FS330-11 474 |
| triangle | 6374/4474 |
The usal kinds of Single Convolution Air Actuator
| Single Convolution Air Actuator |
| All Measurements Are In Mm |
| GUOMAT NO. | Contitech NO. | Min. Design height | Installation Space Required | Max. Stroke |
| 1B4060 | FS 40-6 | 50 | 160 | 60 |
| 1B5050 | FS 50-5 | 51 | 165 | 44 |
| 1B7070 | FS 70-7 | 51 | 180 | 64 |
| 1B10010 | FS 100-10 | 51 | 225 | 94 |
| 1B1209 | FS 120-9 | 50 | 230 | 85 |
| 1B1210 | FS 120-10 | 51 | 245 | 99 |
| 1B12012 | FS 120-12 | 51 | 250 | 119 |
| 1B20010 | FS 200-10 | 51 | 265 | 89 |
| 1B33011 | FS 330-11 | 51 | 340 | 99 |
| 1B33014 | FS 330-14 | 51 | 360 | 129 |
| 1B53011 | FS 530-11 | 51 | 400 | 124 |
| 1B53014 | FS 530-14 | 51 | 420 | 134 |
| 1B96012 | FS 960-12 | 63 | 480 | 117 |
| 1B133011 | FS 1330-11 | 63 | 570 | 107 |
Shipping and packing
Shipment:
1. Normally, we will deliver the parts within 2-8 work days after
payment is received.
2. We always deliver the air spring by DHL, UPS,FEDEX and TNT.They
are all can very quickly to deliver the package to you. If the
package is large and heavy, we may send it by sea.
We will arrange it for you if you have no preference on the express
carrier
Packing:
Shipping by Air: packed with strong carton box;
Shipping by Sea: wrapped with water-proof material,pallet and
wooden case will be used if necessary.
Air Spring Use on Industrial Applications
Air Spring offer solutions for vibration-oriented mounting of many
kinds of machines. From the technical design all the way through to
the harmonization of individual system components. Air spring can
be applied to a lot of equipment that can effectively reduce the
influence of vibration to the equipment .Currently, more and more
industrial equipment use air spring. GUOMAT air springs make very
low natural frequencies possible, from 0.5 to 3.5 Hz depending on
the type. With loads ranging from 0.5 k N to more than 440 k N, air
isolators provide effective mounts for sensitive measuring
instruments as well as heavy foundations.
Industrial Equipments Such As
Papermaking equipment, large washing machine, water treatment
equipment, fitness equipment, punch press, leather draw machine,
automobile testing station, medical machinery, mining machinery,
etc.
