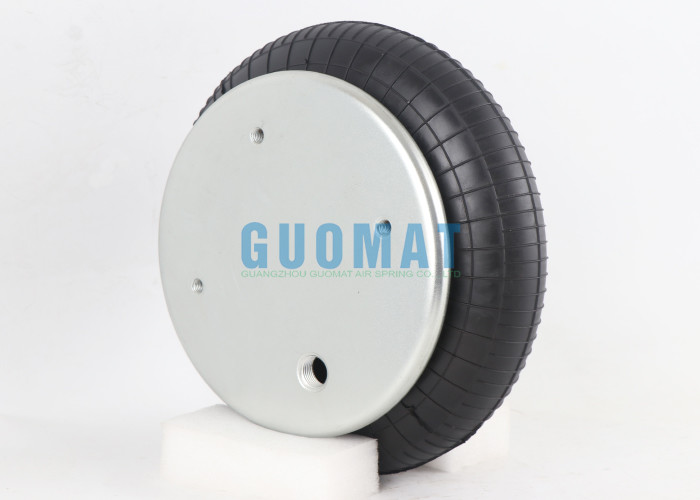

Rubber Singe Convoluted Air Spring FS330-11 468 Contitech 1B12-301 Goodyear Air Suspension

Product Description

GUOMAT NO.: 1B5330P03

Can Replace Firestone W01-358-7009 / WO1-358-7009

Can Replace Firestone W01 358 7009 / WO1 358 7009

Can Replace Firestone W013587009 / WO13587009

Can Replace Contitech FS330-11 468

Can Replace Contitech FS 330-11 468

Can Replace Goodyear 1B12-301

Can Replace Goodyear 1B 12-301

Can Replace Goodyear 578913301

Can Replace Goodyear 578 91 3 301

Can Replace Goodyear 578-91-3-301

Can Replace Triangle 6374
Can Replace Triangle 4468
Can Replace SAF Holland 90557002
Can Replace SAF Holland AR741

1B5330P03 Suspension Air Bellow Techncal Data

The maximum outer diameter of GUOMAT 1B5330P03 is 325mm (under 7Bar air pressure), the diameter of the top and bottom covers is 231mm, G1/4 air holes, M10X1.5 threaded holes, the center distance between the threaded holes is 140mm, the threaded holes are 57mm away from the air holes, the maximum height is 160mm, the minimum height is 55mm, and the compressed height is 105mm.

Vibration Isolation-Dynamic Characteristic Values

Design Height: H recommended 130mm,minimum100mm

Pneumatic Application-Static Characteristic Values

Force P

The Drawing of 1B5330P03 Suspension Air Bellows
