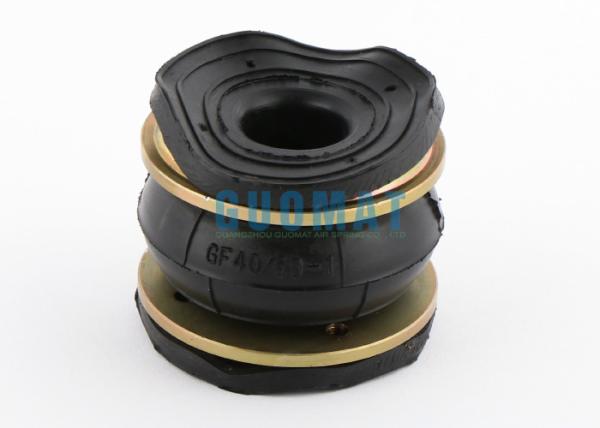

Single Convoluted Rubber Air Spring GF40/60-1 Industrial Air Bellow Without Plate

Product Description

GF40/60-1 rubber air spring is a high-performance shock absorption and adjustment device, which is widely used in various equipments that need shock absorption, vibration isolation and adjustment. GF40/60-1 is mainly composed of rubber corrugated airbag, metal connectors (such as flange, metal end cover, etc.) and inflation valve and other components. Among them, the rubber corrugated airbag is the core component of the product. It is made of high-strength, wear-resistant, oil-resistant and high-temperature resistant rubber material. The interior is designed as a sealed air chamber for storing compressed air. The metal connector is used to fix the rubber airbag and connect it to the equipment to ensure the firmness and reliability of the connection. The inflation valve makes it easy for users to fill or release gas into the air chamber, thereby adjusting the load-bearing capacity and stiffness of the air tire.

Part number: GF40/60-1

Convolutions: Single/1

Color: Black

Material: High quality rubber

Warranty: One year

Pressure Ability: 0.2-0.8 M PA

Design diameter: 40mm
Maximum outer diameter: 80mm
Front end outer diameter: 80mm
Design height: 60mm
Stroke: 40-70mm
Effective area: 12.6CM2
0.4-0.7Mpa Bearing capacity: 50-88kg

GF Series Air Springs
