4 1/2"x1 Aluminum Cover Air Spring FS 44-5 Contitech Rubber Air Actuator Industrial Air Bags

Product Description

Manufacturer: GUOMAT

Part No.: 1B4.5X1P

Contitech Part Number: FS44-5

Contitech Part Number: FS 44-5

Contitech Part Number: FS44-5 DI

Contitech Part Number: FS 44-5 DI

Contitech Part Number: FS44-5 DI G3/8

Contitech Part Number: FS 44-5 DI G3/8

Contitech Part Number: FS44-5 DI G3/8 M6

Contitech Part Number: FS 44-5 DI G3/8 M6

Firestone Part Number: W01-R58-4050

Firestone Part Number: W01 R58 4050

Firestone Part Number: W01R584050

Technical Data

The upper and lower covers of the GUOMAT 1B4.5X1P air spring have a diameter of 110mm, three M6 threaded holes, the center distance between the threaded holes is 93mm, the air hole is G3/8, located in the center of the top cover. The maximum outer diameter of the air spring is 125mm, the maximum height is 90mm, the minimum height is 50mm, and the compressed height is 40mm.

Pneumatic application – static characteristic values

Force F (kN)

How to Buy the Right Size Air Spring
1. Determine the type of air spring
Air springs are mainly divided into the following types. Different uses require different size selection methods:
Bag air spring (such as air bags used alone, suitable for suspension systems)
Sleeve air spring (with metal shell, commonly used in automobiles or industrial shock absorption)
Membrane air spring (flat design, used in space-constrained scenarios)
Selection suggestion: Choose the appropriate type according to the installation location and purpose.

2. Key size parameters
Before purchasing, the following dimensions must be measured or confirmed (units are usually millimeters or inches):

(1) Installation size
Inner diameter (ID): The hole diameter of the air bag mounting bolt or bracket.

Outer diameter (OD): The maximum diameter of the air bag after inflation, ensuring that it does not interfere with surrounding components.

Height (free height & working height):

Free height: The natural height when not inflated.

Working height: The height of normal use after inflation (affects the stroke and load capacity).

(2) Stroke
The limit range of air bag compression/extension must meet the movement requirements in actual applications.

(3) Load Capacity
Select the appropriate load range according to the weight of the equipment (e.g. if a single airbag needs to support 200kg, select a model with a rated load ≥ 200kg).

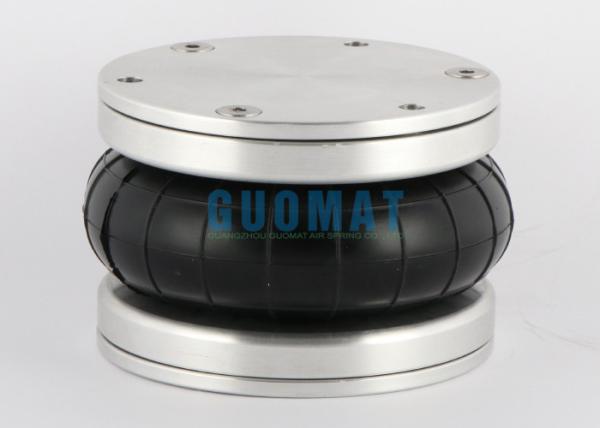

The Real Picture of GUOMAT 1B4.5X1P Single Air Spring

Guangzhou Guomat Air Spring Co., Ltd. is located in Guangzhou, about 15min’s drive from Baiyun Airport. Our mainly products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.

GUOMAT Factory gate：

Established in 2008, Our company covers 20,000㎡ and is located in Taihe Town Baiyun District. With the rapid development of our company, we are equipped with modernized workshop and advanced rubber air springs equipments now. We are the first company who started air spring business and has become one of the largest air spring manufacturing bases in China.

In 2017, we launched a collaboration with High Tech of US customers to customize the products of our customers and the logo of our customers. Every year, there are about 10,000 orders. In continuous cooperation, the products meet the international inspection standard ISO/TS16949:2009, and the customers are very satisfied with the products produced. This is our high recognition from American customers and also gives us Great motivation.

In 2018, we started cooperation with German GmbH, mainly industrial air springs, which are suitable for industrial equipment. We have successfully developed and produced the natural air-seal of the skin to reach the 700mm flanged air spring, the customer's annual demand is a few hundred.

With the development of business and demand for customers, our company introduced business with TomLog Corporation in 2010, our strategic cooperative partner in Taiwan. Then we developed air compressor program and air spring related business, in 2015, America Goodyear Corporation met with the transfer of shares in the North American plant, our company was granted with sale agent for air springs in China, providing more choice for our customers. Our company adopts the most advanced domestic air spring processing equipment and international production technology. Combined with unique production process, our company strictly execute international standards for production and spare no efforts to create the world-class products. We will endeavor to make air spring widely used at home and abroad, and let more and more customers to enjoy the best damping effect.
