Continental Contitech FD 330-22 CI G1/4 Air Spring Rubber 75-305
Stroke Air Suspension
Product Description
Original Brand: Contitech
Part Number: FD330-22
Part Number: FD 330-22
Part Number: FD330-22 CI
Part Number: FD 330-22 CI
Part Number: FD330-22 CI G1/4
Part Number: FD 330-22 CI G1/4
Part Number: FD330-22 CI G1/4 | 110538
Part Number: FD 330-22 CI G1/4 | 110538
FD330-22 Air Spring Reference Number
Contitech FD 330-22 363
Firestone W01-358-7180/22
Goodyear 2B12-425 / 2B12-311
Goodyear 578-92-3-309
Triangle 6316/4363
Airkraft 115060/3B-356
Contitech FD 330-22 472
Firestone W01-358-7181
Goodyear 2B12-411
Goodyear 578-92-3-309
Triangle 6316/4472
Contitech FD 330-22 500
Firestone W01-358-7344
Goodyear 2B12-034
Triangle 6316/4500
Contitech FD 330-22 313
Firestone W01-358-7400/22
Goodyear 2B12-309/ 2B12-316
Goodyear 578-92-3-309
Triangle 6316/4313
Contitech FD 330-22 337
Firestone W01-358-7401
Goodyear 2B12-320
Goodyear 578-92-3-309
Triangle 6316/4334
Contitech FD 330-22 318
Firestone W01-358-7403/22
Goodyear 2B12-307/2B12-433/2B12-445
Goodyear 578-92-3-309
Contitech FD 330-22 346
Firestone W01-358-7404
Goodyear 2B12-410/2B12-312
Goodyear 578-92-3-309
Triangle 6316/4346
Contitech FD 330-22 364
Firestone W01-358-7405
Goodyear 2B12-313/2B12-459
Goodyear 578-92-3-309
Triangle 6316/4364
Specifications and Detailed Technical Parameters:
Temperature range: -4±50℃ (+70℃/-35±122℉ (+158℉)
Maximum pressure at rest: 8Bar/120psi
Extended height: 305mm
Compressed height: 75mm
Design height: 240mm
Cover diameter: 228mm
Center distance between threaded holes: 157.5mm
Maximum outer diameter of rubber: 325mm
Type |
Rubber bellows only |
With crimped plates G1/4 air inlet A=73mm excentrical |
With crimped plates G3/4 air inlet A=73mm excentrical |
With crimped plates G1 air inlet A=66mm excentrical |
With stainless steel crimped plates G1 air inlet A=66mm excentrical |
Service Instructions
M8:max.25 Nm
G1/4:max.25 Nm
G1:max.50 Nm
G3/4:max.50 Nm

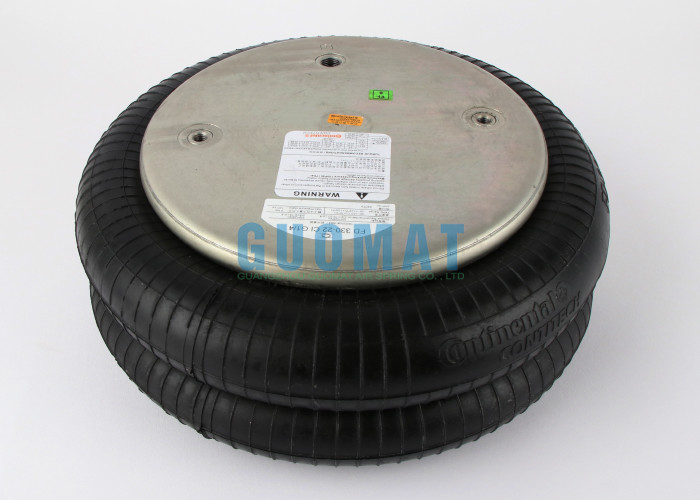

The Related Picture of FD 330-22
![]() |
