    9 10PS-14 5 P 139 H Contitech Truck Suspension Air Bag C-34733 Hendrickson Rubber Air Bellows

    Ask Lasest Price
    Brand Name : GUOMAT
    Model Number : 1T5558
    Certification : ISO/TS16949, ISO9001
    Price : USD79.9-99.9/PC
    Payment Terms : L/C, T/T, Western Union Or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 3-7 Working Days
    • Product Details
    • Company Profile

    9 10PS-14 5 P 139 H Contitech Truck Suspension Air Bag C-34733 Hendrickson Rubber Air Bellows

    9 10PS-14 5 P 139 H Contitech Truck Suspension Air Bag C-34733 Hendrickson Rubber Air Bellows


    Product Description

    GUOMAT Truck Air Spring
    Plastic Piston

    Warranty: 1 Year

    GUOMAT NO.: 1T5558

    MOQ: 1 pc

    Truck Model: Heavy Duty Truck
    Color: Black
    Place of Origin: Guangzhou,China
    Certification: ISO/TS16949:2009
    Contitech: 910PS-145P139H / 9 10PS-14 5 P 139 H
    Hendrickson: S-34733 / C-24733(ZMD) / S34733 / C24733

    Specifications and Detailed Technical Parameters

    Extended Height: 540mm
    Compressed Height: 234mm
    Design Height: 310mm
    Top Plate Width: 231mm
    Piston Width: 210mm
    Piston Height: 180mm
    Screw Thread: 2X3/4-16UNF,2X1/4NPTF
    Rubber Bellows Diameter: 294±5mm

    Main Advantages of Truck Suspension Airbags


    Load adaptation
    Adjustable air pressure keeps the vehicle height consistent whether it is empty or loaded, avoiding the "tail collapse" phenomenon of traditional leaf springs.


    Improving driving comfort

    The cushioning effect of air springs is better than that of metal springs, greatly reducing the vibration transmitted to the cab by road bumps.


    Protecting cargo and vehicles

    Reduces damage to delicate or fragile cargo caused by bumps, while reducing fatigue loss of the frame and structure.


    Adjustability

    Some systems support manual or automatic height adjustment (for example, lowering the vehicle body when loading and unloading cargo).


    Saving tires

    Maintaining uniform wheel ground pressure and reducing abnormal tire wear.


    GUOMAT Reference Continental Truck Suspension Air Spring

    GUOMATContitechGUOMATContitech
    1T93934183 NP 241T6023SA4390N1
    1T60244390 NP 011T60264390 NP 02
    1T6103

    4390 NP 03

    1T60274713 NP 02
    1T58294718 NP 011T58684857 NP 01
    1T98684757 NP 021T86024881 NP 02
    1T94104882N1P051T41014883N1P07
    1T60474884N1P061T6007644NP04
    1T45604560NP031T60356605NP01
    1T60376630NP011T45624562NP03
    1T60366606NP011T84776606NP01
    1T77526607NP011T60306608NP01
    1T49256609NP011T6008661NP01
    1T8901724NP021T8969725NP02

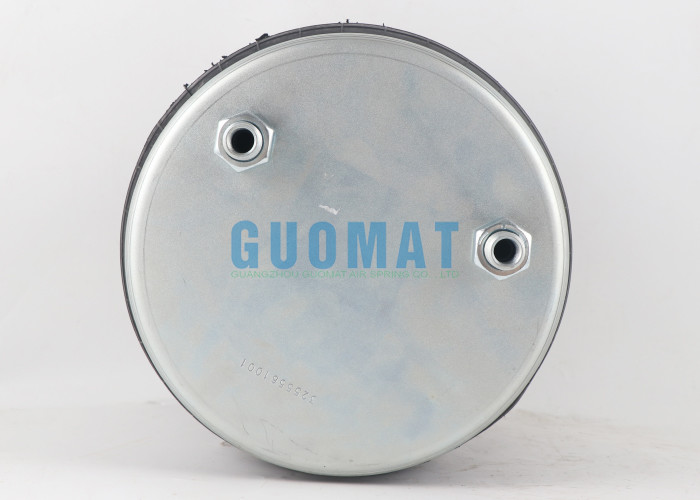

    Product Details Pictures

    9 10PS-14 5 P 139 H Contitech Truck Suspension Air Bag C-34733 Hendrickson Rubber Air Bellows9 10PS-14 5 P 139 H Contitech Truck Suspension Air Bag C-34733 Hendrickson Rubber Air Bellows

    Factory workshop
    Fire-Stone W01-M58-8859 Contitech 4159np06 Goodyear 1r12-702 Air Spring CompleteFire-Stone W01-M58-8859 Contitech 4159np06 Goodyear 1r12-702 Air Spring Complete
