Contitech Rubber Air Spring FD 40-10 Double Convoluted Industrial
Air Bag Suspension Kit
Product Description
| Item | Value |
| Part No. | 2B4060 |
| Type | Rubber Air Spring |
| Warranty | 12 Months |
| Color | Black |
| Place of Origin | Guangzhou,China |
| Certification | ISO/TS16949:2009 |
| Material | Rubber+Steel |
| Packing | Neutral Packing |
| MOQ | 1 Pcs |
| Quality | High-Quality |
| Application | Industrial Machine Systems |
Cross Reference Number
Contitech Part Number: FD40-10
Contitech Part Number: FD 40-10
Contitech Part Number: FD40-10 CI
Contitech Part Number: FD 40-10 CI
Contitech Part Number: FD40-10 CI G1/8
Contitech Part Number: FD 40-10 CI G1/8
Contitech Part Number: FD40-10 CI G1/8 M8
Contitech Part Number: FD 40-10 CI G1/8 M8
GUOMAT 2B4060 Double Convoluted Air Spring Technical Data
❶ Cover Plate
Top Cover Plate Diameter: 90 mm
Bottom Cover Plate Diameter: 90 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : G1/8
❸Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 1 Piece M8X1.25
Center Distance Between Screw and Air Hole: 20mm
Bottom Cover Plate Screw (Nut) Tooth : 2 Pieces M8X1.25
Screw Center Distance of Bottom Cover Plate : 20mm
❹Rubber Bellows
Rubber Bellows MAX Diameter: 145mm
Rubber Bellows Natural Diameter: 125mm
The Working Stroke : MAX 170 mm to MIN 70 mm
Maximum Height : 170 mm
Minimum Height :70 mmx
Design Height: 145mm
Compression Height : 100 mm
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
Without Girdle Hoop
Pneumatic Application – Static Characteristic Values
Force F (kN)
| Pressure P | Bar | 3 | 4 | 5 | 6 | 7 | 8 | Vol.V (I) |
| height H (mm) | 160 | 1.12 | 1.55 | 2 | 2.4 | 2.8 | 3.2 | 1.2 |
| 140 | 1.6 | 2.17 | 2.8 | 3.3 | 3.9 | 4.5 | 1.1 |
| 120 | 2 | 2.65 | 3.4 | 4.1 | 4.8 | 5.5 | 0.9 |
| 100 | 2.3 | 3.1 | 4 | 4.8 | 5.6 | 6.4 | 0.7 |
| 80 | 2.6 | 3.5 | 4.47 | 5.4 | 6.26 | 7.1 | 0.6 |
FAQ
1. How long is the warranty period of your company's products?
For export products, the warranty period is 12 months from the date
of shipment. If the warranty period has expired, the customer needs
to pay for the replacement of parts.
2. I can't find the product I want on your website. Can you provide
the product I need?
Of course, you need to provide the model or data of the product
3. Can I place a sample order?
Welcome to place a sample order. We ship it for you through
international express such as FedEx, DHL, UPS, etc. It usually
takes 3-7 working days to arrive. But we will charge all costs
related to the sample, such as sample fees and air freight. We will
refund the sample fee after receiving the customer's order.

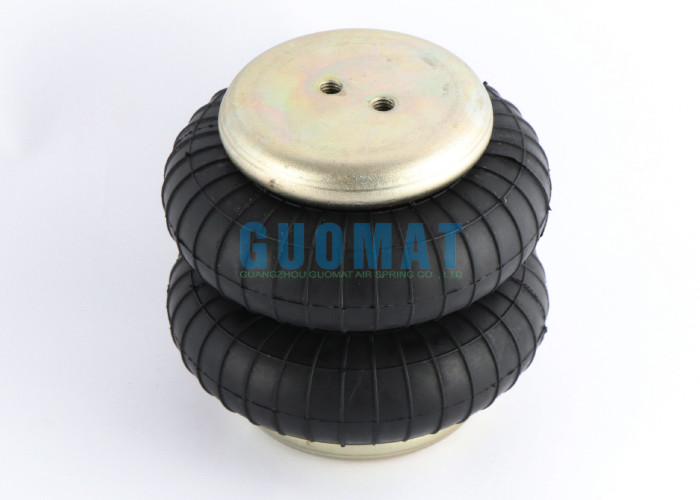

The Real Picture
