    Rubber Industrial Air Spring Supplier 2B12-425 Goodyear Shock Absorber 578923309

    Ask Lasest Price
    Brand Name : GUOMAT
    Model Number : 2B6330
    Certification : ISO/TS16949:2009
    Price : $59.9-69.9/pc
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 1000pcs/week
    Delivery Time : 2-8 work days
    • Product Details
    • Company Profile

    Rubber Industrial Air Spring Supplier 2B12-425 Goodyear Shock Absorber 578923309

    Rubber Industrial Air Spring Supplier 2B12-425 Goodyear Shock Absorber 578923309


    Product Description


    GUOMAT 2B6330 is a hyperbolic air spring, made of high quality rubber, high performance and long service life.

    We provide one-year quality guarantee, product size standard, a variety of models and sizes for you to choose.


    Product data parameters:

    Top/Bottom cover plate diameter: 231mm

    Air fitting: 1/4NPTF

    Threaded hole: 2X3/8-16UNC

    qi Center distance between air hole and threaded hole: 73mm
    Center distance between threaded holes: 157mm

    The rubber bellows max.outer diameter: 325mm

    Max,height: 305mm

    Min.height: 81mm


    2B6330 Reference Numbers

    Firestone Number: W01-358-7180

    Firestone Number: 22

    Contitech Number: FD 330-22 363

    Goodyear Number: 2B12-425

    Goodyear Number: 2B12-311

    Goodyear Number: 578-92-3-309

    Triangle Number: 6316

    Triangle Number: 4363

    Airkraft Number: 115061

    Airkraft Number: 3B-356


    Vibracoustic: VSP2B22R7180

    EI Ride: 8030190

    Kwiklok/Todco(Jifflox)

    Leland: Sc2075

    Navistar: 1685179C1

    Hendrickson: 1VA1816

    Ridewell: 1003587180C

    SAF Holland: 57007180

    Watson&Chalinl: AS01541G/01881F

    Peerless: 0550 00001


    Air Springs in Silo Tilt Devices

    Silo tilt devices are devices used to adjust the angle of silos (large storage structures for bulk materials) for efficient unloading, maintenance or cleaning. These devices require precise control, load management and safety. Air springs, known for their flexibility and adjustability, offer unique advantages in this regard.


    Key Features of Air Springs and Their Applications:

    • Load Support and Distribution: Air springs evenly distribute the weight of the silo during the tilting process, reducing structural stress. Their ability to handle dynamic loads ensures stability even when the material inside is shifting.
    • Adjustable Stiffness/Height: By adjusting the air pressure, the operator can fine-tune the tilt angle to accommodate different load weights (e.g., grain and cement).
    • Shock Absorption: Air springs absorb shock during the tilting process, protecting the silo and machinery from wear caused by vibration.
    • Smooth Motion Control: They enable gradual tilting and prevent sudden movements that can prevent silo instability or material spillage.

    Advantages over Traditional Systems:

    • Precision: Real-time pressure regulation enables gradual changes in angle for enhanced control.
    • Safety: Air springs act as a fail-safe; a loss of pressure results in a controlled descent rather than a sudden collapse.
    • Low maintenance: Fewer mechanical parts than hydraulic systems, resulting in less maintenance.
    • Energy efficiency: Compressed air systems are more efficient than hydraulic pumps in certain configurations.

    Air springs enhance the safety and durability of silo tilting devices by providing controlled, adaptable movement. While there are challenges such as air supply requirements, their advantages in precision and maintenance make them a strong choice for modern silo systems, especially in medium-duty applications.

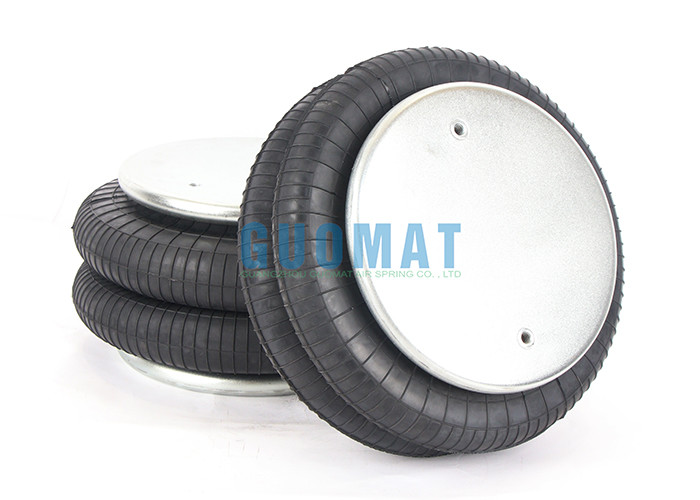

    Product Images

    Rubber Industrial Air Spring Supplier 2B12-425 Goodyear Shock Absorber 578923309Rubber Industrial Air Spring Supplier 2B12-425 Goodyear Shock Absorber 578923309
