    12X1 Rubber Bellows W01-R58-4060 Firestone Air Spring For Large Drying Machines

    Ask Lasest Price
    Brand Name : Contitech
    Model Number : 1B12X1T
    Certification : ISO/TS16949, ISO9001
    Price : USD99.9-129.9/PC
    Payment Terms : L/C, T/T, Western Union Or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 3-7 Working Days
    • Product Details
    • Company Profile

    12X1 Rubber Bellows W01-R58-4060 Firestone Air Spring For Large Drying Machines

    12X1 Rubber Bellows W01-R58-4060 Firestone Air Spring For Large Drying Machines

    Product Details

    ItemIndustrial Air SpringBrandGUOMAT
    Part No.1B12x1TColorBlack
    MaterialRubber+SteelWarranty1 Year
    PaymentL/C,T/T,Western UnionShipmentFedEx,UPS,DHL

    GUOMAT 1B12X1T can Replace the Following Manufacturer Number

    GUOMAT NO.: 1B12X1T

    FIRESTONE NO.: W01-R58-4060 / WO1-R58-4060

    FIRESTONE NO.: W01 R58 4060 / WO1 R58 4060
    FIRESTONE NO.: W01R584060 / WO1R584060
    CONTITECH NO.: FS412-10
    CONTITECH NO.: FS 412-10
    CONTITECH NO.: FS412-10 DS
    CONTITECH NO.: FS 412-10 DS
    CONTITECH NO.: FS412-10 DS G1/2
    CONTITECH NO.: FS 412-10 DS G1/2
    CONTITECH NO.: FS412-10 DS G1/2 M10
    CONTITECH NO.: FS 412-10 DS G1/2 M10
    DUNLOP NO.: SP1540
    DUNLOP NO.: SP 1540
    DUNLOP RUBBER NO.: 12X1 / 12''X1 / 12x1
    NORGREN NO.: M/31121
    NORGREN NO.: M 31121
    NORGREN NO.: M31121
    Technical Data
    Air Fitting: G1/2
    The Screw Thread: M10
    The Cover Plate Diameter: 260mm
    The Rubber Bellows Natural Outer Diameter: 300mm
    Natural Height: 130mm
    Center Distance Between Two Screw Threads: 232mm


    Pneumatic Application – Static Characteristic Values

    Force F(kN)

    Pressure Pbar345678Vol.V(I)
    12011.215.118.922.902731.45.5
    10013.918.523.428.133.138.34.6
    8016.522.127.633.439.1453.4
    6018.524.83137.243.6502.2

    Single Convoluted Industrial Air Spring

    GUOMATFirestoneDunlopContitechNorgrenParker
    1B4 1/2X1 PW01-R58-4050SP2334FS44-5 DIPM/310419109400
    1B6X1PW01-R58-4078SP2913FS76-7 DIPM/310619109004A
    1B6X1TW01-R58-4052SP1536FS76-7 DSM/310619109004
    1B8X1TW01-R58-4054SP1537FS138-8 DSM/310819109014
    1B10X1TW01-R58-4057SP2523FS210-10 DSM/311019109024
    1B12X1TW01-R58-4060SP1540FS412-10 DSM/311219109044

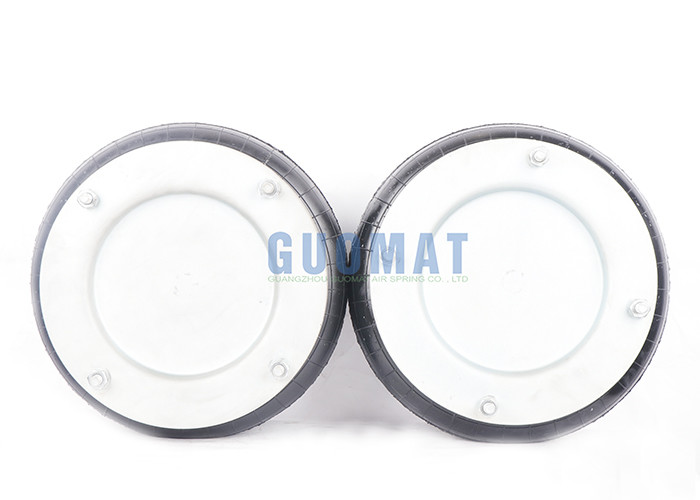

    Product Images
