Goodyear Sleeve Lobe Type Air Spring 1S6-025 Truck Cab Air Shock
Absorber
Product Specification
| OEM No. | Goodyear 1S6-025 |
| Truck Model | Universal Truck Trailer |
| Material | Plastic Parts |
| Part Name | Shock Absorber |
| Working tempreature | -40°C bis +70°C |
| Failure testing | ≥3 millions |
G6025 Sleeve Type Rolling Lobe Air Springs Technical Data
Top diameter: 3.15 inches / 80.01 mm
Bottom diameter: 3.89 inches / 98.8 mm
Air hole: M20X2.50-6G
Minimum compression: 4.1 inches / 104.14 mm
Maximum height: 10.88 inches / 276.7 mm
Stroke: 6.78 inches / 172.2mm
Installing Air Springs in Truck Cabs has the Following Significant
Advantages
1. Significantly improve driving comfort
Excellent shock absorption effect: air springs effectively absorb road bumps and vibrations through
the elastic properties of compressed air, and can significantly
reduce the impact force transmitted to the cab compared to
traditional leaf springs or coil springs. This is especially
important for long-distance driving or rugged roads, which can
reduce driver fatigue.
Adaptive adjustment: Automatically adjust the stiffness according to the load or road
conditions to keep the cab stable. For example, reduce air pressure
when unloaded to provide softer cushioning, and increase air
pressure when heavily loaded to maintain support.
2. Improve driving safety
Enhance handling stability: Reduce body sway and roll, improve vehicle stability when turning,
braking or driving at high speed, and reduce the risk of loss of
control due to bumps.
Stronger road adaptability: By adjusting the suspension height, keep the cab level and ensure
the driver's field of view is clear, especially on slopes or uneven
roads to avoid line of sight deviation.
3. Adjustable height for improved convenience
Automatic leveling function: Regardless of how the load changes, the air spring can
automatically adjust the height of the cab to ensure that the
operating platform and seat are in the best position and reduce the
driver's physical load.
Convenient boarding and disembarking: The height of the cab can be lowered when parking to facilitate
the driver's entry and exit, especially for heavy trucks with high
chassis.
4. Reduce noise and vibration
Enhanced sound insulation: Reduce the noise and resonance transmitted from the chassis to the
cab, create a quieter driving environment, help the driver stay
focused and reduce fatigue.
5. Extend component life
Protect the cab structure: By buffering severe vibrations, reduce the wear or loosening of
the cab's metal structure, instruments, electronic equipment, etc.
caused by long-term vibration, and reduce the frequency of
maintenance.
High inherent durability: Air springs have no metal-to-metal friction loss, and their
service life is usually longer than traditional springs, with lower
maintenance costs (although airbags need to be replaced if damaged,
the overall failure rate is low).
For example, installing air springs on long-distance trucks can
greatly reduce the driver's back strain caused by bumps and improve
endurance; when the truck is traveling on harsh roads, it can
better protect the cab structure and equipment; during cold chain
and precision transportation, it can reduce the impact of vibration
on the goods and reduce unnecessary losses.

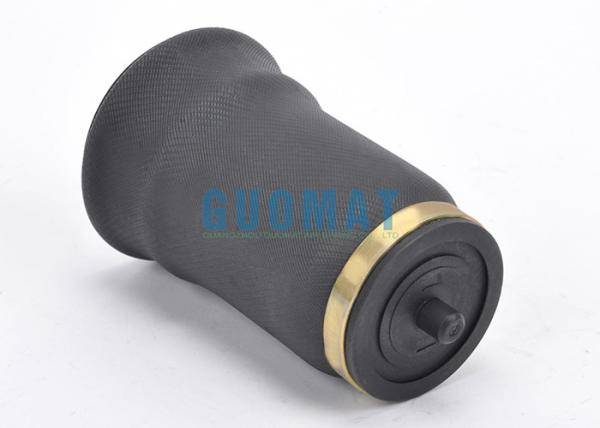

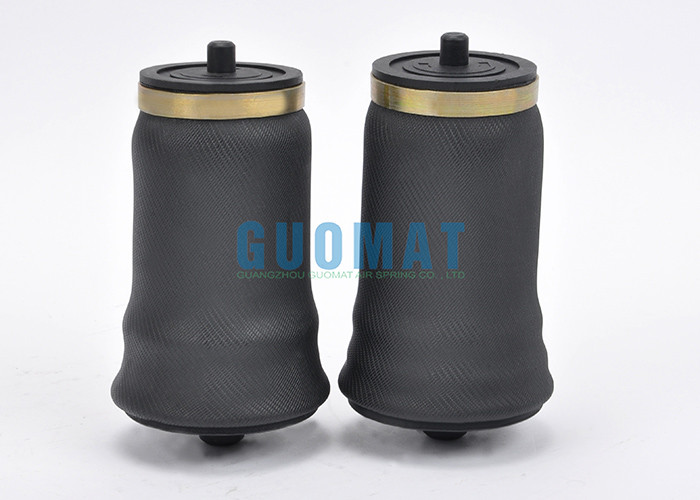

Product Physical Picture
