Triple Convoluted Industrial AirBag 384mm Flange Type Air Ride Suspension Spring

Product Information

• GUOMAT LHF580 air spring
• Lmported rubber material
• Inflatable operation method
• Samples can be produced according to drawings
• OEM quality and service
• High cost performance
• 1 year warranty

LHF580 Air ride Spring Technical Data

Flange specification: LHF
Convolutions: 3
Nominal diameter: 580mm
Natural outer diameter: 680mm
Flange outer diameter: 640mm
Natural height: 384mm
Number and specification of screws: 32 M10
Working pressure: ≤0.7Mpa
Burst pressure: ≥2.0Mpa
Fatigue test: ≥500,000 times
Minimum compression height: 125mm
Safe extension height: 450mm

Application of Large-size Flange Air Springs
Large-size flange air springs are widely used in heavy industry, special equipment and precision engineering due to their high load, large stroke and flexible buffering characteristics.

1. Shock absorption and vibration isolation for heavy machinery and equipment
Large stamping machine tools/forging machines: absorb high-frequency impact vibrations, protect foundations and surrounding equipment, and reduce noise pollution (can be reduced by 15-20dB).
Ship/offshore platform equipment: isolate the impact of wave fluctuations on deck cranes and compensate for hull sway (stroke can reach ±150mm).
Generator sets: suppress low-frequency vibrations of diesel engines or turbines to avoid resonance damage.

2. Leveling and lifting of large structures
Liftable stage/stadium roofs:Multiple sets of flange springs are synchronously inflated and deflated to achieve millimeter-level precision lifting of hundreds of tons of structures (such as stages).
Bridge support replacement:Temporary support of the weight of the bridge body (single spring load up to 50 tons), allowing the hydraulic jacking system to operate safely.

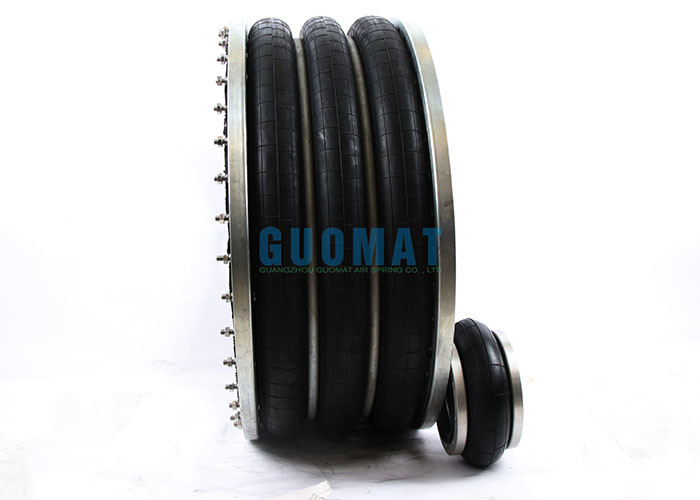

Product Picture

Guangzhou Guomat Air Spring Co., Ltd. is located in Guangzhou, about 15min’s drive from Baiyun Airport. Our mainly products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.

GUOMAT Factory gate：

Established in 2008, Our company covers 20,000㎡ and is located in Taihe Town Baiyun District. With the rapid development of our company, we are equipped with modernized workshop and advanced rubber air springs equipments now. We are the first company who started air spring business and has become one of the largest air spring manufacturing bases in China.

In 2017, we launched a collaboration with High Tech of US customers to customize the products of our customers and the logo of our customers. Every year, there are about 10,000 orders. In continuous cooperation, the products meet the international inspection standard ISO/TS16949:2009, and the customers are very satisfied with the products produced. This is our high recognition from American customers and also gives us Great motivation.

In 2018, we started cooperation with German GmbH, mainly industrial air springs, which are suitable for industrial equipment. We have successfully developed and produced the natural air-seal of the skin to reach the 700mm flanged air spring, the customer's annual demand is a few hundred.

With the development of business and demand for customers, our company introduced business with TomLog Corporation in 2010, our strategic cooperative partner in Taiwan. Then we developed air compressor program and air spring related business, in 2015, America Goodyear Corporation met with the transfer of shares in the North American plant, our company was granted with sale agent for air springs in China, providing more choice for our customers. Our company adopts the most advanced domestic air spring processing equipment and international production technology. Combined with unique production process, our company strictly execute international standards for production and spare no efforts to create the world-class products. We will endeavor to make air spring widely used at home and abroad, and let more and more customers to enjoy the best damping effect.
