    8''X1 Single Convoluted Air Spring Bags M/31081 Norgren Air Bellow With Flange Ring

    Ask Lasest Price
    Brand Name : GUOMAT
    Model Number : 1B8X1T
    Certification : ISO/TS16949, ISO9001
    Price : USD89.9-129.9/PC
    Payment Terms : L/C, T/T, Western Union Or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 3-7 Working Days
    • Product Details
    • Company Profile

    8''X1 Single Convoluted Air Spring Bags M/31081 Norgren Air Bellow With Flange Ring

    8''X1 Single Convoluted Air Spring Bags M/31081 Norgren Air Bellow With Flange Ring



    Product Description


    8x1 Technical Parameters Table


    Cover Plate Diameter
    Top Cover Plate Diameter:153.5mm
    Bottom Cover Plate Diameter: 153.5mm
    Gas Hole/Air Inlet/Air Hole
    Gas Hole/Air Inlet/Air Hole: G1/2
    Rubber Bellows
    Rubber Bellows Natural Diameter: 159mm
    The Natural Height: 77.5mm
    Blind Nut
    Top Cover Plate Screw(Nyt): 4pcsXM10
    Bottom Cover Plate Screw(Nyt): 4pcsXM10
    Screw Distance: 127mm

    GUOMAT 1B8X1T can Repalce the Following Part Number

    Firestone Part Number: W01-R58-4054

    Firestone Part Number: W01 R58 4054

    Firestone Part Number: W01R584054

    Contitech Part Number: FS 138-8

    Contitech Part Number: FS 138-8 DS

    Dunlop Part Number: SP1537

    Norgren Part Number: M/31081

    Norgren Part Number: M 31081

    Norgren Part Number: M31081

    PARKER Part Number: 9109014


    Flange-connected Air Spring
    Flange-connected air spring is a shock-absorbing element that uses compressed air as an elastic medium. Its two ends are rigidly connected to the equipment or structure through flanges.


    1. Basic structure

    • Airbag part: Made of multiple layers of rubber + curtain fabric (usually nylon or polyester fiber), compressed air is filled inside to provide elastic support.
    • Flange: An annular connector made of metal (usually carbon steel, stainless steel or aluminum alloy), which fixes the two ends of the air spring to the equipment base or structure through bolts.
    • Auxiliary components: may include air nozzles (inflation and deflation), pistons (adjusting stiffness) or dust covers (protecting airbags).

    2. Working principle

    • Compressed air elasticity: After inflation, the airbag expands to form an elastic body, which adapts to the load through changes in air pressure (the airbag is compressed when the load increases, and the increased air pressure provides greater support).
    • Flange fixing: The flange ensures a stable connection to prevent the airbag from shifting or falling off under high pressure. It is suitable for scenes with high loads or precise alignment.

    3. Core Features

    • High load-bearing capacity: Flange connection provides stronger tensile/shear resistance, suitable for heavy machinery (such as truck suspension, industrial stamping equipment).
    • Adjustable stiffness: Adjust the system stiffness by changing the air pressure to adapt to different working conditions (such as precision instrument vibration isolation requires low stiffness, heavy equipment requires high stiffness).
    • Weather resistance: High-quality rubber and galvanized flanges can be used for a long time in humid and corrosive environments (such as ships or chemical equipment).
    • Easy maintenance: Flange bolt connection is easy to disassemble and replace the airbag without replacing the entire system.

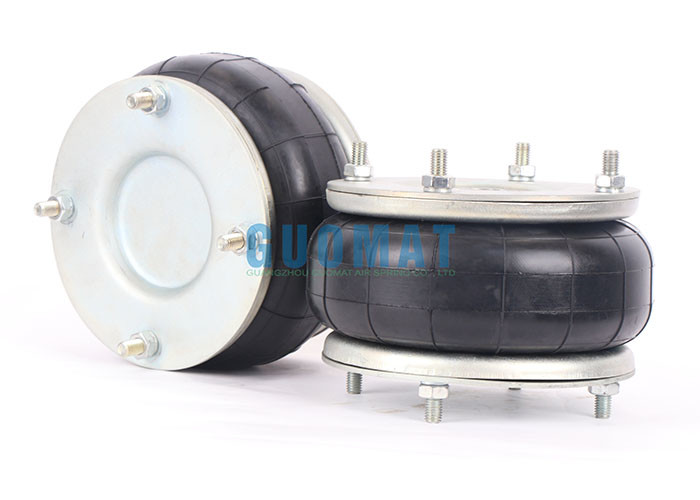

    Product Image
    8''X1 Single Convoluted Air Spring Bags M/31081 Norgren Air Bellow With Flange Ring8''X1 Single Convoluted Air Spring Bags M/31081 Norgren Air Bellow With Flange Ring
