    W01-358-0738 Auto Chassis Firestone Air Spring 1/4NPT For Truck Air Suspension

    Ask Lasest Price
    Brand Name : GUOMAT
    Model Number : 1T0738
    Certification : ISO/TS16949:2009
    Price : $79.9-99.9/pc
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 1000pcs/week
    Delivery Time : 2-8 work days
    • Product Details
    • Company Profile

    W01-358-0738 Auto Chassis Firestone Air Spring 1/4NPT For Truck Air Suspension

    W01-358-0738 Auto Chassis Firestone Air Spring 1/4NPT For Truck Air Suspension

    Product Description

    GUOMAT Number: 1T0738
    Material: Natural Rubber
    Warranty: 12 Months
    MOQ: 10 Pieces
    Packing:1.Neutral packaging
    2. According to customer requirements
    Suspension Type: Air Suspension System
    Application: Heavy Duty Truck
    Car Fitment: ERF Truck/Hendrickson/Trailer
    Weight: 12KG
    Packing Length: 29cm
    Packing Height: 29cm
    Packing Width: 42cm


    OEM Manfacturer Number


    Firestone Manfacturer Number: W01-358-0738

    Firestone Manfacturer Number: W01 358 0738

    Firestone Manfacturer Number: W013580738

    Firestone Manfacturer Number: WO1-358-0738

    Firestone Manfacturer Number: WO1 358 0738

    Firestone Manfacturer Number: WO13580738


    1T0738 GUOMAT Truck Air Spring Technical Data


    Top cover diameter: 231mm
    Air hole: 1/4NPT
    Threaded hole: 2-3/8-16UNC
    Center distance between threaded holes: 157.5±0.5mm
    Distance between threaded hole and air hole: 73±0.5mm
    Maximum height: 330mm
    Minimum height: 110mm
    Compression height: 220mm
    Width of piston: 241mm
    Height of piston: 77mm
    Threaded hole at bottom: 1/2-13UNC
    Center distance between threaded holes at bottom: 104.5mm


    Why Choose Us?

    1. Flexible cooperation model
    We accept sample orders (to verify quality) and small orders (trial sales/replenishment), significantly reducing the cooperation risk of new customers.
    2.Comprehensive competitiveness of the supply chain
    • Full category coverage: One-stop procurement saves customers' time costs and avoids the complexity of managing multiple suppliers.
    • High cost-effective materials: Use high-quality raw materials but maintain preferential pricing to provide customers with higher profit margins.
    3. Value-added service system
    • Pre-sales technical support: Provide product selection suggestions, application solution design, etc.
    • After-sales response mechanism: If our products have quality problems, we will return or exchange them for you. We will reply to your message quickly, and the response time is less than 24 hours.

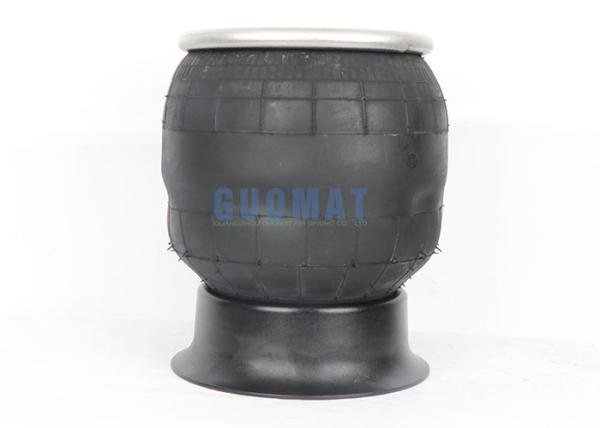

    Product Pictures
    W01-358-0738 Auto Chassis Firestone Air Spring 1/4NPT For Truck Air SuspensionW01-358-0738 Auto Chassis Firestone Air Spring 1/4NPT For Truck Air Suspension
