166mm Height Rubber Air Spring M10 Double Convoluted Air Balloon For Rotary Shaft Actuators
Product Introduction
GUOMAT Number: 2H160166P
Warranty: 1 Year
Product Name: Industrial Air Spring
Convolutions: 2
Connection Method: Flange Connection
Material: Rubber and Stainless Steel
Sample: Yes
Delivery Time: 2-8 Working Days
Type: Gas-Filled
Technical Data
Nominal diameter: 100mm
Minimum compression: 82mm
Safe extension: 190mm
Full stroke: 108mm
Maximum outer diameter (0.7Mpa): 175mm
Natural height: 166mm
Cover width: 160mm
Center distance between threaded holes: 135mm
Bearing Capacity | Inflation Pressure | 0.2Mpa | 0.3Mpa | 0.4Mpa | 0.5Mpa | 0.6Mpa | 0.7Mpa | 0.8Mpa | 0.7Mpa | |
Installation Height | ||||||||||
82 | (mm) | 364 | 538 | 713 | 892 | 1071 | 1251 | 1430 | 0.86 | |
116 | (mm) | 262 | 397 | 537 | 674 | 815 | 950 | 1095 | 1.27 | |
150 | (mm) | 190 | 290 | 391 | 490 | 597 | 700 | 802 | 1.64 | |
166 | (mm) | 149 | 237 | 325 | 413 | 502 | 593 | 684 | 1.77 | |
190 | (mm) | 76 | 128 | 180 | 233 | 287 | 342 | 398 | 1.95 | |
201 | (mm) | 23 | 55 | 83 | 111 | 148 | 183 | 220 | 1.95 | |
Stiffness and frequency at design height | Vertical Stiffness | (Kg/cm) | 39 | 54 | 72 | 89 | 107 | 125 | 138 | |
Natural frequency | Hz | 2.56 | 2.40 | 2.35 | 2.33 | 2.31 | 2.30 | 2.25 | ||
cpm | 154 | 144 | 141 | 140 | 139 | 138 | 135 |
Air Spring for Rotary Shaft Actuators
Air springs can be effectively integrated into rotary shaft
actuators to enhance performance, reduce vibration, and improve
precision in rotational motion systems.
(1) Vibration Damping & Shock Absorption
Problem: Rotary actuators (e.g., in robotics, valve control, or
industrial automation) often experience torsional vibrations or
sudden load changes, leading to mechanical wear or positioning
errors.
Solution: Air springs mounted axially or radially absorb
high-frequency vibrations and dampen shock loads (e.g., sudden
stops/reversals).
(2) Torque Assistance & Load Compensation
Problem: Heavy rotary loads (e.g., large valves, crane slewing
rings) require high torque, straining actuators.
Solution: Air springs pre-loaded in the rotation direction offset
static loads, reducing actuator power demand.
(3) Backlash Elimination
Problem: Gear trains or linkages in rotary systems introduce
backlash, reducing precision.
Solution: An air spring applies constant radial pressure to
bearings or gears, maintaining contact and minimizing play.
(4) Misalignment Compensation
Problem: Shaft misalignment due to thermal expansion or mounting
errors causes binding.
Solution: Laterally compliant air springs allow slight radial/axial
float while maintaining torque transmission.
Example: Paper mill rollers with air-spring-coupled shafts tolerate
thermal drift without buckling.

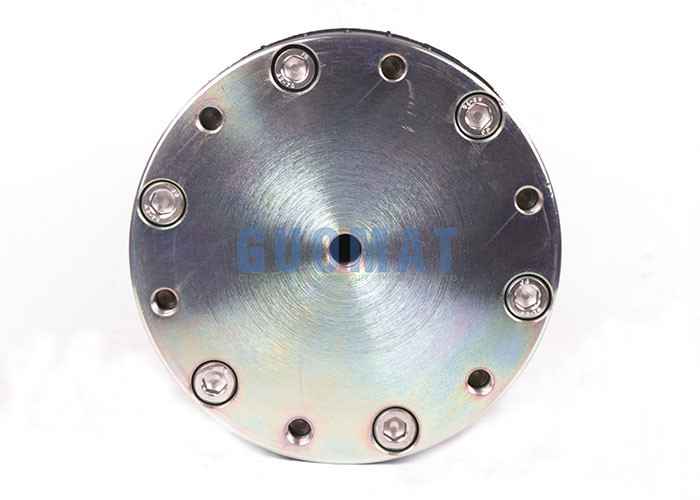

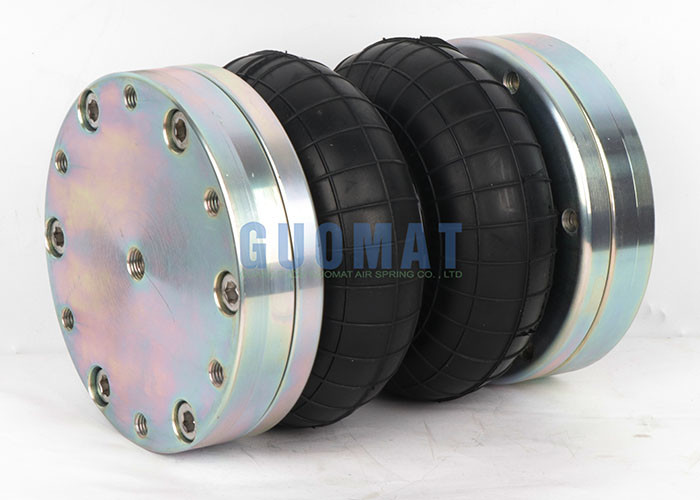

Product Image
![]() |
