    FS530-14 Contitech Suspension Air Spring Pneumatic Connection G3/4 Air Bellow

    Ask Lasest Price
    Brand Name : GUOMAT
    Model Number : 1B53014P01
    Certification : ISO/TS16949, ISO9001
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, Western Union
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    FS530-14 Contitech Suspension Air Spring Pneumatic Connection G3/4 Air Bellow

    FS530-14 Contitech Suspension Air Spring Pneumatic Connection G3/4 Air Bellow


    Alternative Items


    CONTITECH

    FS530-14

    FS 530-14

    FS 53014

    Firestone

    W01-358-7112

    W01 358 7112

    W013587112

    WO1-358-7112

    WO1 358 7112

    WO13587112

    FleetPrideAS7112
    Goodyear

    1B14 358

    1B14358

    1B14-358

    578-91-3-352

    Taurus6326
    Triangle

    AS-4339

    AS4339

    TRPAS71120
    Dayton

    354-7112

    354 7112

    3547112

    HendricksonS-13044
    LoadguardSC2012
    Fleetrite554782C1
    Ridewell1003587112C
    SAF Holland90557028

    Product Detailed Datas


    • Cover Plate

    Top Cover Plate Diameter: 287 mm
    Screw Center Distance of Top Cover Plate: 158.8 mm
    Bottom Cover Plate Diameter: 287 mm
    Screw Center Distance of Bottom Cover Plate: 158.8 mm

    • Nut/Blind Nuts

    Top Cover Plate Screw(Nut) Tooth: 2×M8×15
    Bottom Cover Plate Screw(Nut) Tooth: 2×M8×15

    • Gas Hole/Air Inlet/Air Fitting

    Air Hole: G3/4
    Rubber Bellow

    • Rubber Bellow Max. Diameter: 405 mm

    Installation Space: 420 mm
    Minimum Height: 51 mm
    Maximum Height: 185 mm


    Air Spring Should Pay Attention To In The Application


    1. It is forbidden to use the air spring beyond the recommended safe extension height.
    2. In order to prolong the service life of the air spring, do not use the air spring below the minimum compression height.
    3. Do not use the air spring under the pressure exceeding 0.7Mpa.
    4. Do not use the air spring in a twisted state.

    We Have Other Type Air Springs/Air Suspensions


    Single ConvolutedDouble ConvolutedTriple Convoluted
    FS 40-6 CIFD 40-10 CIFT 330-29 CI
    FS 50-5 CIFD 70-13 CIFT 430-32 CI
    FS 70-7 CIFD 110-15 CIFT 530-32 CI
    FS 100-10 CIFD 120-17 CIFT 530-35 CI
    FS 120-10 CIFD 120-20 CIFT 960-34 CI
    FS 120-12 CIFD 200-19 CIFT 1330-35 CI
    FS 200-10 CIFD 200-22 CI
    FS 310-12 CIFD 200-25 CI
    FS 330-11 CIFD 330-22 CI
    FS 330-14 CIFD 330-30 CI
    FS 530-11 CIFD 530-22 CI
    FS 530-14 CIFD 530-35 CI
    FS 960-12 CIFD 960-22 CI
    FS 1330-11 CIFD 1330-25 CI

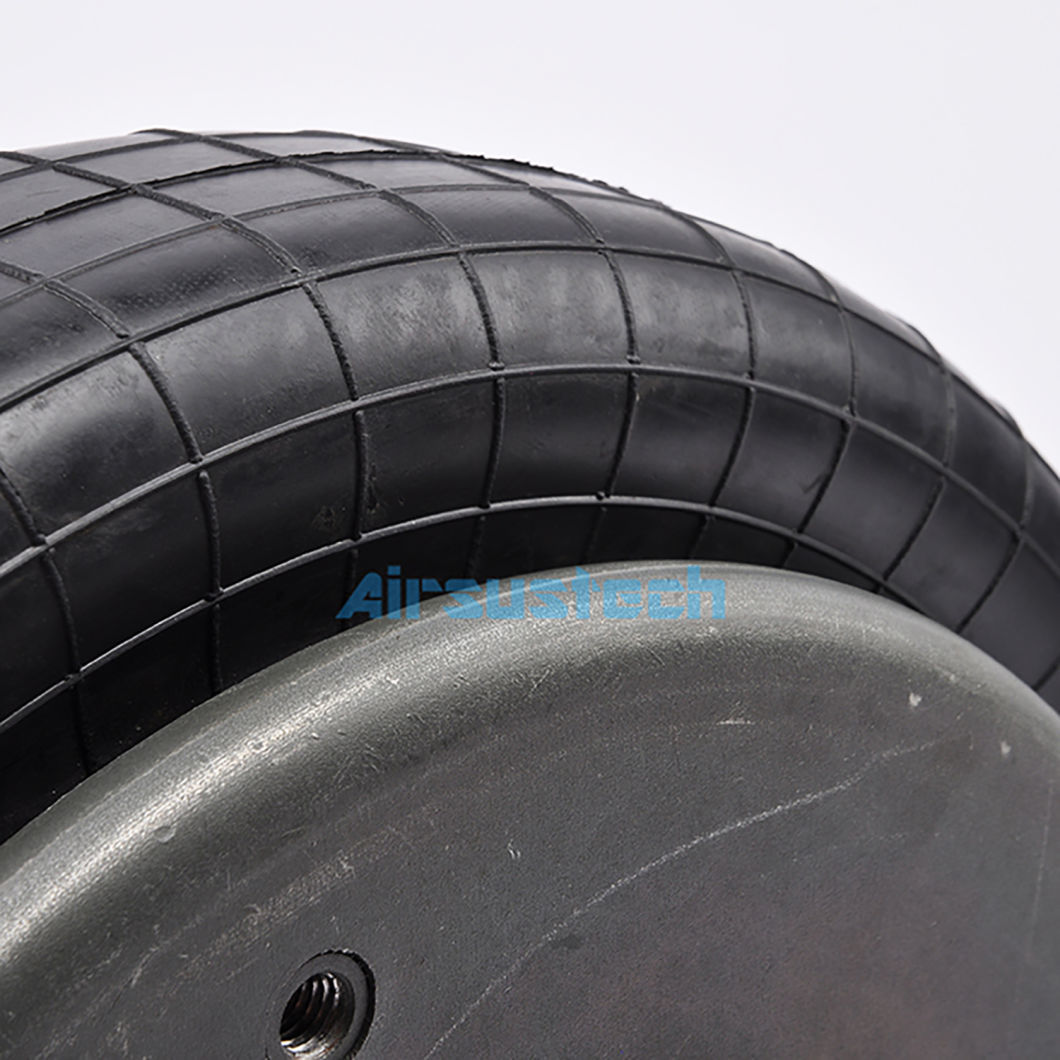

    The Related Picture of 1B53014P01


    Contitech Fs530-14 OEM Air Spring Actuator One Convoluted Rubber Pneumatic

    Company Profile

    Guangzhou Guomat air spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and production of automotive air springs. It is located in the beautiful flower city of Guangzhou. With modern workshops and advanced rubber air spring manufacturing equipment, it is one of the current air spring production bases in China. Our products are mainly used in the bases of commercial vehicles, passenger cars, and industrial machinery and equipment. The main products are: rubber air springs, passenger car and truck airbags, industrial airbags, air springs for papermaking machinery, large washing machines, rubber air springs for cars, etc. There are thousands of models and styles, and can also be customized according to customer requirements. Or the customer's existing product specifications to design and produce.
    Contitech Fs530-14 OEM Air Spring Actuator One Convoluted Rubber Pneumatic


    Factory Workshop
    Contitech Fs530-14 OEM Air Spring Actuator One Convoluted Rubber PneumaticContitech Fs530-14 OEM Air Spring Actuator One Convoluted Rubber Pneumatic
