    Design H. 110MM Contitech FS 200-10 Air Spring for Leveling Rubber Material Bellow

    Ask Lasest Price
    Brand Name : GUOMAT
    Model Number : 1B6374
    Certification : ISO/TS16949, ISO9001
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, Western Union
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Design H. 110MM Contitech FS 200-10 Air Spring for Leveling Rubber Material Bellow

    Design H. 110MM Contitech FS 200-10 Air Spring for Leveling Rubber Material Bellow


    Product Detailed Datas


    Diameter of the Top Cover Plate: 160 mm
    Center-to-Center Distance of Screws on the Top Cover Plate: 89 mm
    Diameter of the Bottom Cover Plate: 160 mm
    Center-to-Center Distance of Screws on the Bottom Cover Plate: 89 mm
    Screw (Nut) Thread Count for the Top Cover Plate: 2×M10×1.25
    Screw (Nut) Thread Count for the Bottom Cover Plate: 2×M10×1.25
    Air Inlet: G 1/4
    Natural Diameter of the Rubber Bellow: 220 mm
    Design Height: 110 mm

    Other OEM Numbers


    Fire-stone W01-M58-6374

    Fire-stone W01M586374

    Fire-stone W01 M58 6374

    Fire-stone WO1M586374

    Fire-stone WO1-M58-6374

    Fire-stone WO1 M58 6374

    Contitech FS 200-10

    Contitech FS200-10

    Contitech FS 200 10

    Contitech FS200 10

    Contitech FS 20010

    Contitech FS20010

    Phoenix SP 1B 12

    Phoenix SP1B 12

    Phoenix SP1B12

    Dunlop(FR) 9''1/4×1 S09 10 1

    Dunlop(FR) 9''1/4×1S09 10 1

    Dunlop(FR) 9''1/4×1S0910 1

    Dunlop(FR) 9''1/4×1S09101

    Bos-ch 822419004

    Fes-to EB-250-85

    Fes-to EB 250 85

    Fes-to EB250-85

    Fes-to EB25085

    Norgren PM/31091(81/4×1)


    Please Note When Using Air Springs


    1. Do not use air springs that exceed the recommended safe extension height.
    2. To extend the service life of air springs, air springs should not be used below the minimum compression height.
    3. Air springs must not be used at pressures above 0.7MPa.
    4. Air springs must not be used in a twisted state.


    We Also Provide Other Contitech Air Shock Suspensions


    Single ConvolutedDouble ConvolutedTriple Convoluted
    FS 40-6 CIFD 40-10 CIFT 330-29 CI
    FS 50-5 CIFD 70-13 CIFT 430-32 CI
    FS 70-7 CIFD 110-15 CIFT 530-32 CI
    FS 100-10 CIFD 120-17 CIFT 530-35 CI
    FS 120-10 CIFD 120-20 CIFT 960-34 CI
    FS 120-12 CIFD 200-19 CIFT 1330-35 CI
    FS 200-10 CIFD 200-22 CI
    FS 310-12 CIFD 200-25 CI
    FS 330-11 CIFD 330-22 CI
    FS 330-14 CIFD 330-30 CI
    FS 530-11 CIFD 530-22 CI
    FS 530-14 CIFD 530-35 CI
    FS 960-12 CIFD 960-22 CI
    FS 1330-11 CIFD 1330-25 CI

    The Detailed Pictures

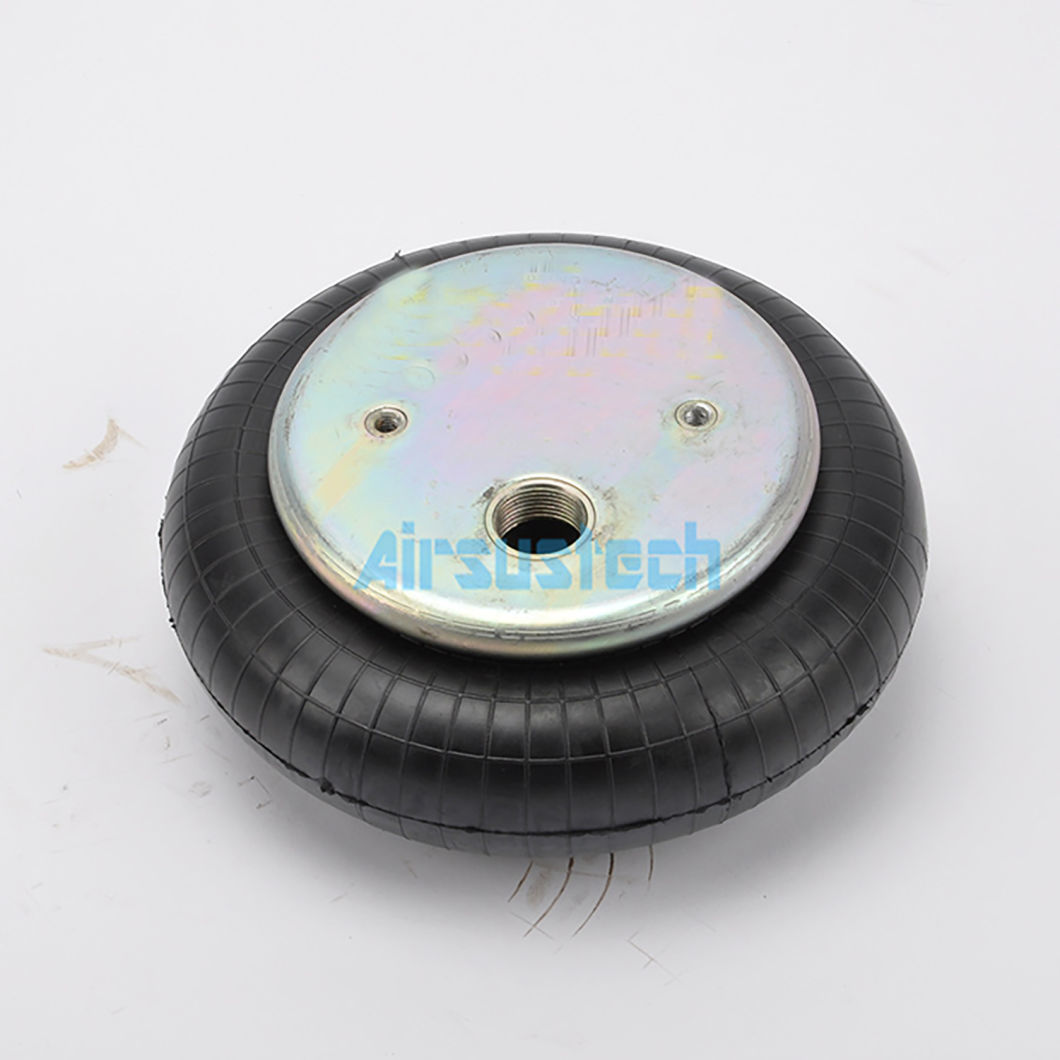

    M8 Teeth Contitech Fs200-10 Leveling Air Bags One Convoluted Spring

    Company Profile

    Guangzhou Guomat air spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and production of automotive air springs. It is located in the beautiful flower city of Guangzhou. With modern workshops and advanced rubber air spring manufacturing equipment, it is one of the current air spring production bases in China. Our products are mainly used in the bases of commercial vehicles, passenger cars, and industrial machinery and equipment. The main products are: rubber air springs, passenger car and truck airbags, industrial airbags, air springs for papermaking machinery, large washing machines, rubber air springs for cars, etc. There are thousands of models and styles, and can also be customized according to customer requirements. Or the customer's existing product specifications to design and produce.
    M8 Teeth Contitech Fs200-10 Leveling Air Bags One Convoluted Spring


    Factory Workshop
    M8 Teeth Contitech Fs200-10 Leveling Air Bags One Convoluted SpringM8 Teeth Contitech Fs200-10 Leveling Air Bags One Convoluted Spring
