    Dunlop FR 8"X1 S08101 Single Convoluted Air Bellow Contitech FS 120-9 Air Spring

    Ask Lasest Price
    Brand Name : GUOMAT
    Model Number : 1B1209
    Certification : ISO/TS16949, ISO9001
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, Western Union
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Dunlop FR 8"X1 S08101 Single Convoluted Air Bellow Contitech FS 120-9 Air Spring

    Dunlop FR 8"X1 S08101 Single Convoluted Air Bellow Contitech FS 120-9 Air Spring


    Product Detailed Datas


    Diameter of the Top Cover Plate: 135 mm
    Center-to-Center Distance of Screws on the Top Cover Plate: 70 mm
    Diameter of the Bottom Cover Plate: 135 mm
    Center-to-Center Distance of Screws on the Bottom Cover Plate: 70 mm
    Screw (Nut) Thread Count for the Top Cover Plate: 2×M8×1.25
    Screw (Nut) Thread Count for the Bottom Cover Plate: 2×M8×1.25
    Air Inlet: G3/4
    Maximum Diameter of the Rubber Bellow: 215 mm
    Maximum Height: 115 mm
    Minimum Height: 50 mm

    OEM Cross References


    Cotitech FS 120-9

    Cotitech FS120-9

    Cotitech FS 120 9

    Cotitech FS120 9

    Dunlop(FR) 8''1S08101

    Dunlop(FR) 8''1 S08101

    Bos-ch 8224 19003

    Bos-ch 822419003

    Fes-to EB-215-80

    Fes-to EB 215 80

    Fes-to EB215 80

    Fes-to EB21580

    Weforma WBE 300-E1

    Weforma WBE 300 E1

    Weforma WBE300-E1

    Weforma WBE300 E1

    Weforma WBE300E1

    Fire-stone W01-M58-6165

    Fire-stone W01M586165

    Fire-stone W01 M58 6165

    Fire-stone WO1M586165

    Fire-stone WO1-M58-6165

    Fire-stone WO1 M58 6165

    Norgren PM/31081(8×1)

    Airtech 140293

    Airtech 111003

    Airtech 1B-190FB

    Megatech 1S120-9 3/4 M8

    Megatech 1S120 9 3/4 M8

    Megatech 1S120 9 3/4M8


    Product Applications


    Scissor lift
    Hopper vibration and damping
    Mechanical handling stop
    Quick lock device
    Reel tensioning
    Machine isolation
    Direct force
    Impact absorbtion
    Roller tensioning
    Platform lift
    Short stroke mechanical linkage
    Hot foll stamping press


    Six Reasons to Choose Us


    1.Hight stability
    2.In situ installation
    3.Ride comfort
    4.Safe and durable
    5.Effective shock absorption
    6.Reduce the sound

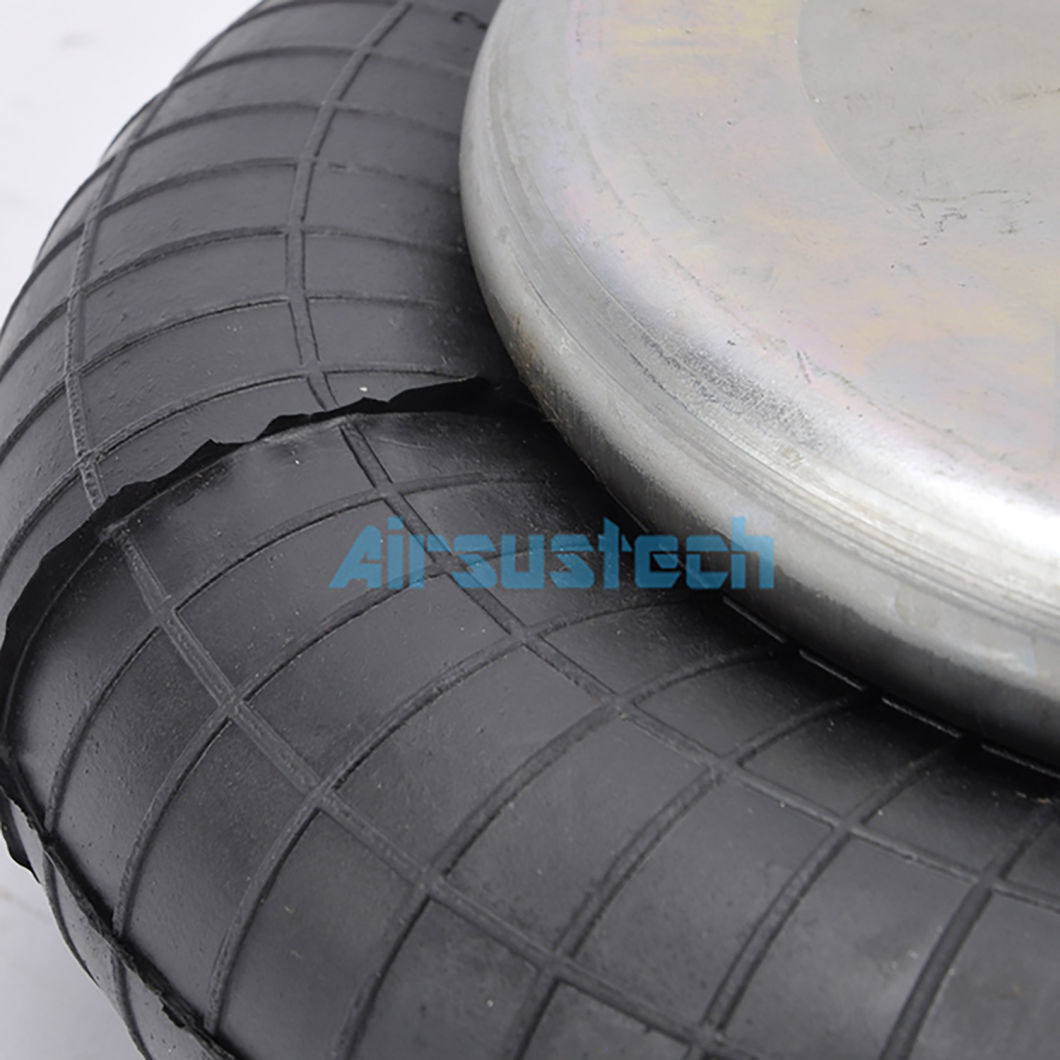

    The Related Pictures of 1B1209


    Dunlop (FR) 8"X1 S08101 Airbag Suspension Convoluted Rubber Bellows Spring
