    Speed Punch Cushion Air Spring S-240-2R Yokohama Double Convoluted Rubber Bellows

    Ask Lasest Price
    Brand Name : GUOMAT
    Model Number : F-240-2
    Certification : ISO/TS16949, ISO9001
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, Western Union
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Speed Punch Cushion Air Spring S-240-2R Yokohama Double Convoluted Rubber Bellows

    Speed Punch Cushion Air Spring S-240-2R Yokohama Double Convoluted Rubber Bellows


    F-240-2 Specifications


    GUOMAT NO.Reference No.Hight H(mm)Commonly Maximum Stroke(mm)The Largest Diameter When Compressed(mm)
    Design High(mm)Maximum High(mm)Minimum Height(mm)
    F-240-4S-240-4206316111±80300
    F-240-3S-240-315223282±60300
    F-240-2S-240-29814853±40300
    F-240-1S-240-17211040±30340

    Cross Reference


    Yokohama S-240-2R

    Yokohama S 240 2R

    Yokohama S-240-2

    Yokohama S 240 2

    Yokohama S240-2


    Features of Rubber Air Bags


    1. Long service life. The self-sealing type has excellent durability due to less rubber deformation during expansion and contraction.

    2. Maintenance is very simple. There is no friction and sliding part, so no lubricating oil is required.

    3. The installation height can be reduced. Compared with other springs, the installation height can be reduced, which effectively increases the stroke.

    4. The spring parameters with elasticity and softness can be obtained, with large load and elasticity and excellent vibration resistance.

    5. The output of the bearing capacity is variable, and the bearing capacity can be changed within a wide range by changing the internal pressure.

    6. The height can be controlled. If used in conjunction with the height adjustment valve, a constant height can be maintained for different loads.

    7. It has a damping effect. If used in conjunction with the auxiliary air chamber and the throttle valve, an excellent damping effect can be obtained, thereby reducing the resonance amplitude.


    Other Types of Punch Feeder Air Suspensions


    Model NO.OEM NO.
    F-350-4/S-200-3YOKOHAMA S-350-4/S-200-3/S-100-3/S-90-3
    F-240-4RYOKOHAMA S-240-4R
    M-120-2YOKOHAMA S-120-3R
    MB-90-3MB-90-3
    4B4001100, 4B400
    F-350-3YOKOHAMA S-350-3R
    F-120-2YOKOHAMA S-120-2R
    F-120-3YOKOHAMA S-120-3R
    F-100-3YOKOHAMA S-100-3R
    F-100-2YOKOHAMA S-100-2R
    F-200-2YOKOHAMA S-200-2R
    F-240-3YOKOHAMA S-240-3R
    F-450-4YOKOHAMA S-450-4R
    F-200-3YOKOHAMA S-200-3R
    F-160-4YOKOHAMA S-160-4R
    F-160-3YOKOHAMA S-160-3R
    F-160-2YOKOHAMA S-160-2R
    F-240-2YOKOHAMA S-240-2R
    F-300-3YOKOHAMA S-300-3R
    F-300-4YOKOHAMA S-300-4R
    F-350-2YOKOHAMA S-350-2R
    F-400-3YOKOHAMA S-400-3R
    F-400-4YOKOHAMA S-400-4R
    F-400-5YOKOHAMA S-400-5R
    F-450-3YOKOHAMA S-450-3R
    F-450-4YOKOHAMA S-450-4R
    F-500-2YOKOHAMA S-500-2R
    F-500-3YOKOHAMA S-500-3R
    F-500-4YOKOHAMA S-500-4R
    F-500-5YOKOHAMA S-500-5R
    F-600-4YOKOHAMA S-600-4R
    F-600-5YOKOHAMA S-600-5R

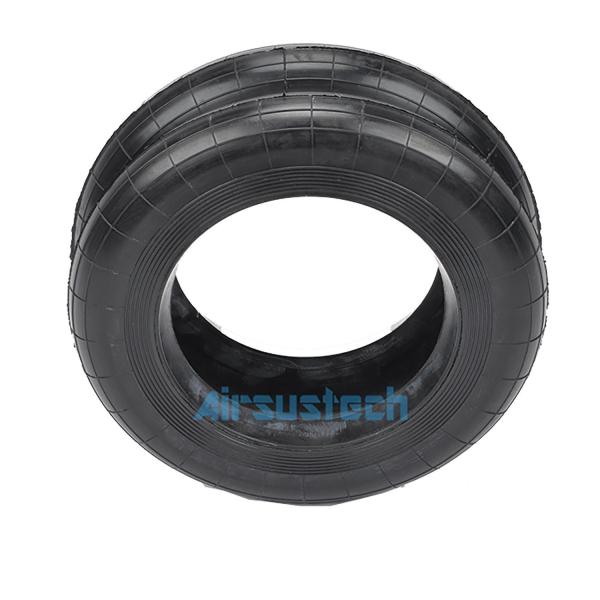

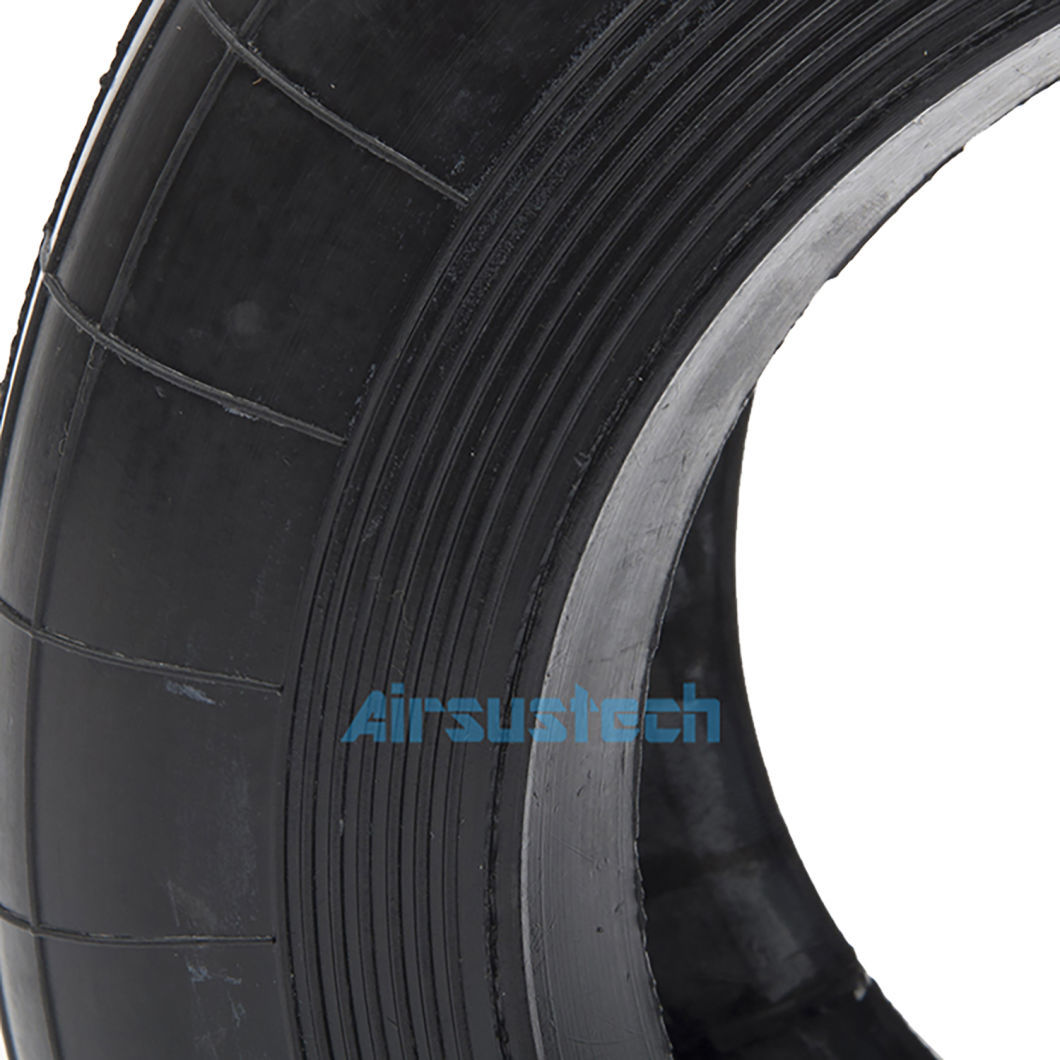

    The Related Pictures of F-240-2


    S-240-2 Yokohama Double Convoluted Rubber Air Spring High-Speed Punch Cushion
