High Performance Goumat F-450-4 Air Bellow Cross Yokohama S-450-4R
Punch Press
The Introduction of Punch Air Springs
Punch air springs are widely used in stamping and forming of
electronics, communications, computers, household appliances,
furniture, transportation, (automobiles, motorcycles, bicycles)
hardware parts, etc. They are widely used in manufacturing
industries such as precision machinery, instruments, computers,
cameras, automobiles, motorcycles, computers, equipment, and
household appliances.
Other OEM Numbers
AIRSUSTECH Part No.: F-450-4
YOKOHAMA S-450-4R
YOKOHAMA S 450 4R
YOKOHAMA S-450-4
YOKOHAMA S450-4R
F-450-4 Rubber Bellow Detailed Datas
| Model Size | Height H(mm) | Common Maximum Travel(mm) | Compression Max. Outside Diameter (mm) | Standard height, approximate value at 0.49MPA internal pressure | Maximum Internal Pressure (MPA) | Internal Pressure Failure(MPA) |
| Design Height | Max. Height | Min Height | Effective Area(cm2) | Volume(L) | Load(KN) | Dynamic Spring Constant(n/mm) | Natural Vibration Frequency(Hz) |
| S-450-5 | 276 | 456 | 156 | ±113 | 510 | 1590 | 43.6 | 80.0 | 588 | 1.4 | 0.69 | 3.9-4.9 |
| S-450-4 | 218 | 363 | 123 | ±90 | 510 | 1590 | 33.9 | 80.0 | 755 | 1.6 | 0.69 | 3.9-4.9 |
| S-450-3 | 160 | 270 | 90 | ±68 | 510 | 1590 | 24.3 | 80.0 | 1040 | 1.8 | 0.69 | 3.9-4.9 |
| S-450-2 | 102 | 172 | 57 | ±45 | 510 | 1590 |
14.7 | 80.0 | 1687 | 2.3 | 0.69 | 3.9-4.9 |
| S-450-1 | 72 | 117 | 40 | ±30 | 550 | 1590 | 11.9 | 80.0 | 2295 | 2.7 | 0.69 | 2.9-3.9 |
Product Applications
Scope of application: presses, punching machines, mechanical
punches, pneumatic punches, hydraulic punches, high-speed
mechanical punches, high-frequency punches, CNC punches, ordinary
mechanical punches, manual punches, spiral punches, rack punches,
connecting rod punches, cam punches, papermaking equipment,
papermaking production lines, paper equipment, etc. Lifting
airbags, lifting air tires, lifting air springs, lifting air
cushions, lifting air cushions, lifting corrugated air tires,
lifting corrugated airbags, lifting buffers, lifting Air springs,
lifting airbag shock absorbers, lifting stroke adjusters, lifting
air suspensions, lifting shock absorbers, lifting shock absorbers,
rubber airbags, rubber air tires, rubber air springs, rubber air
cushions, rubber air cushions, rubber corrugated air tires, rubber
corrugated airbags, rubber buffers, rubber Air spring, rubber
airbag shock absorber, rubber stroke adjuster, rubber air
suspension, rubber shock absorber, rubber shock absorber,
load-bearing airbag, load-bearing air tire, load-bearing air
spring, load-bearing air mold cushion, load-bearing air cushion,
load-bearing corrugated air tire, load-bearing corrugated airbag,
load-bearing buffer, load-bearing Air spring, load-bearing airbag
shock absorber, load-bearing stroke adjuster, load-bearing air
suspension, load-bearing shock absorber, load-bearing shock
absorber
Other Types of Air Shock Suspensions
| GUOMAT Part NO. | Japan YOKOHAMA Reference No. | Japan YOKOHAMA Reference No. | GUOMAT Part NO. | Japan YOKOHAMA Reference No. | Japan YOKOHAMA Reference No. |
| F-600-1 | S-600-1R | S 600 1R | F-240-4 | S-240-4R | S 240 4R |
| F-600-2 | S-600-2R | S 600 2R | F-240-3 | S-240-3R | S 240 3R |
| F-600-3 | S-600-3R | S 600 3R | F-240-2 | S-240-2R | S 240 2R |
| F-600-4 | S-600-4R | S 600 4R | F-240-1 | S-240-1R | S 240 1R |
| F-600-5 | S-600-5R | S 600 5R | F-220-4 | S-220-4R | S 220 4R |
| F-550-2 | S-550-2R | S 550 2R | F-220-3 | S-220-3R | S 220 3R |
| F-550-3 | S-550-3R | S 550 3R | F-220-2 | S-220-2R | S 220 2R |
| F-500-2 | S-500-2R | S 500 2R | F-200-2 | S-200-2R | S 200 2R |
| F-500-3 | S-500-3R | S 500 3R | F-200-3 | S-200-3R | S 200 3R |
| F-500-4 | S-500-4R | S 500 4R | F-200-4 | S-200-4R | S 200 4R |
| F-500-5 | S-500-5R | S 500 5R | F-160-1 | S-160-1R | S 160 1R |
| F-450-1 | S-450-1R | S 450 1R | F-160-2 | S-160-2R | S 160 2R |
| F-450-2 | S-450-2R | S 450 2R | F-160-3 | S-160-3R | S 160 3R |
| F-450-3 | S-450-3R | S 450 3R | F-160-4 | S-160-4R | S 160 4R |
| F-450-4 | S-450-4R | S 450 4R | F-120-4 | S-120-4R | S 120 4R |
| F-450-5 | S-450-5R | S 450 5R | F-120-3 | S-120-3R | S 120 3R |
| F-400-2 | S-400-2R | S 400 2R | F-120-2 | S-120-2R | S 120 2R |
| F-400-3 | S-400-3R | S 400 3R | F-100-4 | S-100-4R | S 100 4R |
| F-400-4 | S-400-4R | S 400 4R | F-90-3 | S-90-3R | S 90 3R |
| F-400-5 | S-400-5R | S 400 5R | F-90-2 | S-90-2R | S 90 2R |
| F-350-1 | S-350-1R | S 350 1R | F-90-1 | S-90-1R | S 90 1R |
| F-350-2 | S-350-2R | S 350 2R | F-300-1 | S-300-1R | S 300 1R |
| F-350-3 | S-350-3R | S 350 3R | F-300-2 | S-300-2R | S 300 2R |
| F-350-4 | S-350-4R | S 350 4R | F-300-3 | S-300-3R | S 300 3R |
| | | F-300-4 | S-300-4R | S 300 4R |

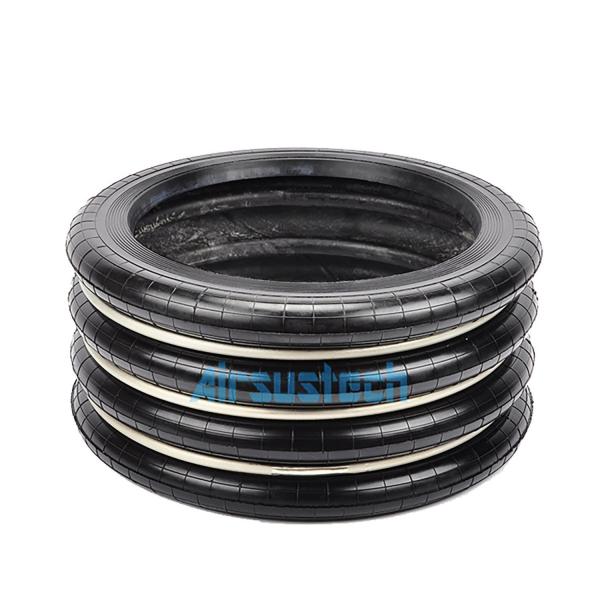

The Related Pictures of F-450-4
