    Yokohama S-600-4R Air Rubber Bellow for Pneumatic Punch Air Bag

    Ask Lasest Price
    Brand Name : GUOMAT
    Model Number : F-600-5
    Certification : ISO/TS16949, ISO9001
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, Western Union
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Yokohama S-600-4R Air Rubber Bellow for Pneumatic Punch Air Bag

    Hight Quality Yokohama S-600-4R Air Rubber Bellow for Pneumatic Punch Air Bag


    Part Numbers


    AIRSUSTECH Part No.: F-600-5

    YOKOHAMA S-600-5R

    YOKOHAMA S 600 5R

    YOKOHAMA S-600-5


    F-600-5 Air Spring Technical Datas


    Design Height: 276 mm

    Max. Height: 456mm

    Min Height: 156mm

    Common Maximum Travel(mm): 113mm

    Compression Max. Outside Diameter (mm): 660mm

    Maximum Internal Pressure (MPA): 0.69

    Internal Pressure Failure(MPA): 3.9-4.9


    Storage Precautions


    1. Spare parts of air springs should be stored in dark places without ventilation as far as possible, avoiding direct sunlight
    2. Avoid oil and chemicals on the air springs, otherwise, after long-term storage, the performance of the rubber will be degraded and the service life will be reduced
    3. Air springs are best stored in a free state without any external force
    4. Do not store in an environment with a temperature exceeding 50 degrees Celsius


    Other Convoluted Rubber Bellows Type


    GUOMAT Part NO.Japan YOKOHAMA Reference No.Japan YOKOHAMA Reference No.GUOMAT Part NO.Japan YOKOHAMA Reference No.Japan YOKOHAMA Reference No.
    F-600-1S-600-1RS 600 1RF-240-4S-240-4RS 240 4R
    F-600-2S-600-2RS 600 2RF-240-3S-240-3RS 240 3R
    F-600-3S-600-3RS 600 3RF-240-2S-240-2RS 240 2R
    F-600-4S-600-4RS 600 4RF-240-1S-240-1RS 240 1R
    F-600-5S-600-5RS 600 5RF-220-4S-220-4RS 220 4R
    F-550-2S-550-2RS 550 2RF-220-3S-220-3RS 220 3R
    F-550-3S-550-3RS 550 3RF-220-2S-220-2RS 220 2R
    F-500-2S-500-2RS 500 2RF-200-2S-200-2RS 200 2R
    F-500-3S-500-3RS 500 3RF-200-3S-200-3RS 200 3R
    F-500-4S-500-4RS 500 4RF-200-4S-200-4RS 200 4R
    F-500-5S-500-5RS 500 5RF-160-1S-160-1RS 160 1R
    F-450-1S-450-1RS 450 1RF-160-2S-160-2RS 160 2R
    F-450-2S-450-2RS 450 2RF-160-3S-160-3RS 160 3R
    F-450-3S-450-3RS 450 3RF-160-4S-160-4RS 160 4R
    F-450-4S-450-4RS 450 4RF-120-4S-120-4RS 120 4R
    F-450-5S-450-5RS 450 5RF-120-3S-120-3RS 120 3R
    F-400-2S-400-2RS 400 2RF-120-2S-120-2RS 120 2R
    F-400-3S-400-3RS 400 3RF-100-4S-100-4RS 100 4R
    F-400-4S-400-4RS 400 4RF-90-3S-90-3RS 90 3R
    F-400-5S-400-5RS 400 5RF-90-2S-90-2RS 90 2R
    F-350-1S-350-1RS 350 1RF-90-1S-90-1RS 90 1R
    F-350-2S-350-2RS 350 2RF-300-1S-300-1RS 300 1R
    F-350-3S-350-3RS 350 3RF-300-2S-300-2RS 300 2R
    F-350-4S-350-4RS 350 4RF-300-3S-300-3RS 300 3R
    F-300-4S-300-4R

    S 300 4R

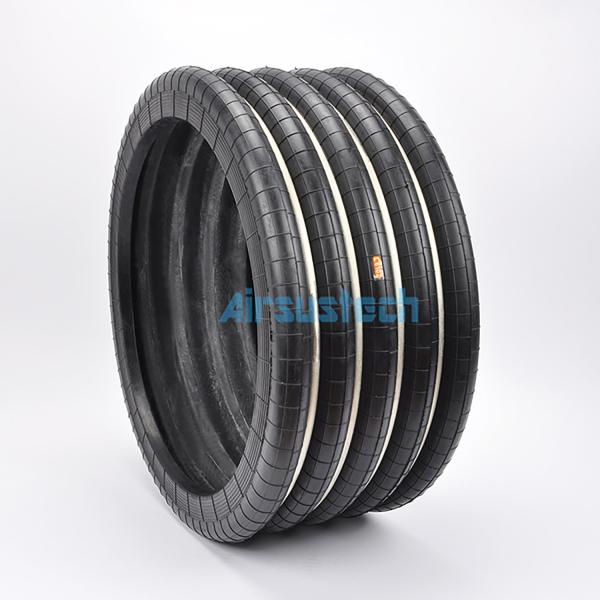

    The Related Picture of F-600-5

    Punch Air Spring F-600-5 Replaces Yokohama S-600-4r Rubber BellowsPunch Air Spring F-600-5 Replaces Yokohama S-600-4r Rubber Bellows


    Company Profile

    Guangzhou Guomat air spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and production of automotive air springs. It is located in the beautiful flower city of Guangzhou. With modern workshops and advanced rubber air spring manufacturing equipment, it is one of the current air spring production bases in China. Our products are mainly used in the bases of commercial vehicles, passenger cars, and industrial machinery and equipment. The main products are: rubber air springs, passenger car and truck airbags, industrial airbags, air springs for papermaking machinery, large washing machines, rubber air springs for cars, etc. There are thousands of models and styles, and can also be customized according to customer requirements. Or the customer's existing product specifications to design and produce.
    Punch Air Spring F-600-5 Replaces Yokohama S-600-4r Rubber Bellows


    Factory Workshop
    Punch Air Spring F-600-5 Replaces Yokohama S-600-4r Rubber BellowsPunch Air Spring F-600-5 Replaces Yokohama S-600-4r Rubber Bellows
