Brand Name : | GUOMAT |
Model Number : | 3H630376 |
Certification : | ISO/TS16949, ISO9001 |
Price : | Negotiable |
Payment Terms : | L/C, D/A, D/P, Western Union |
Supply Ability : | 1000PCS/Week |
Delivery Time : | 5-8 Working Days |

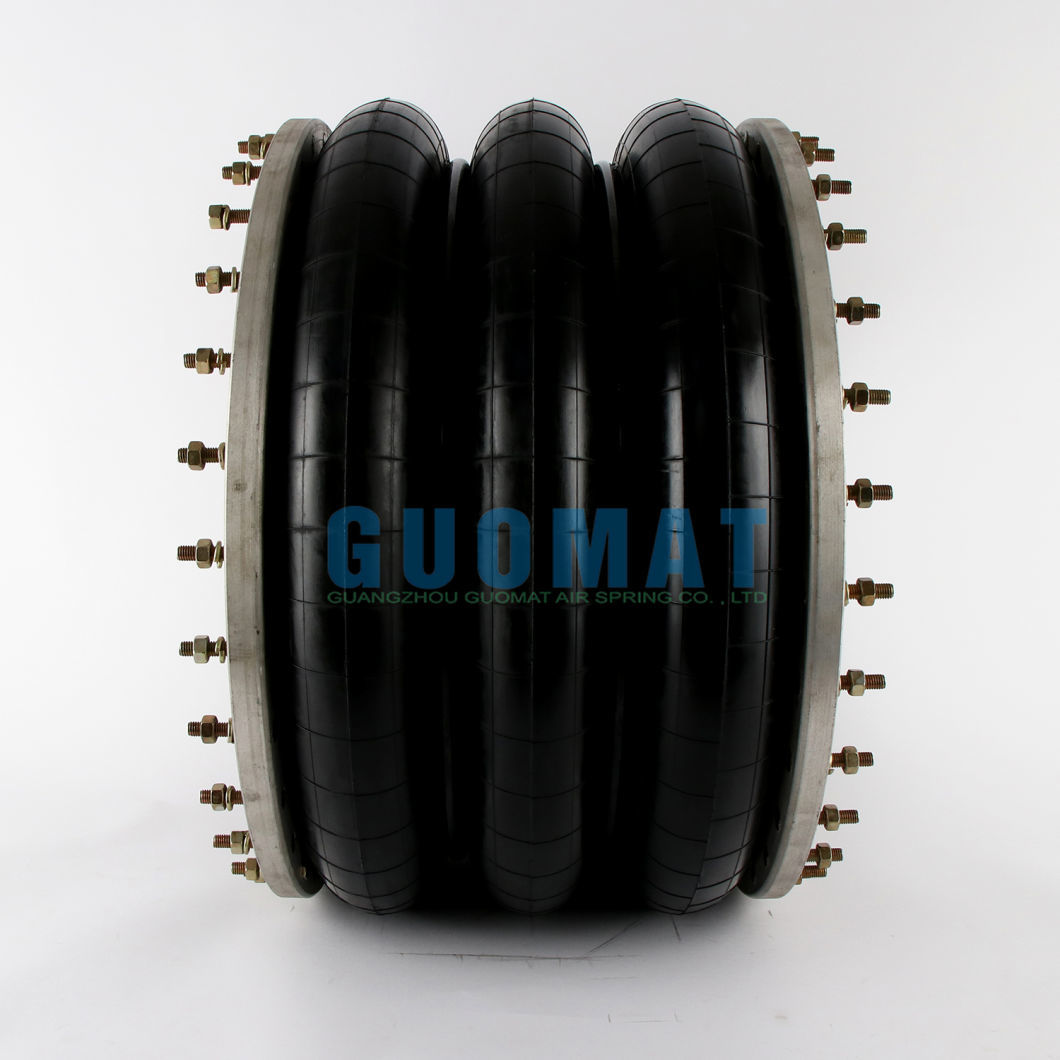

Original GUOMAT 3H630376 Triple Convoluted Air Spring for Industrial Equipment
Product Introduction
Air springs have been used in heavy duty vehicle suspension systems for nearly a century, where they have been able to provide usefulness by taking advantage of the compressed air required for vehicle braking systems. Air springs have provided a two-fold advantage over mechanical leaf- or coil-springs. One advantage with air suspension is the extra comfort provided by being able to vary the air pressure inside the spring, which changes the spring rate, and therefore, ride quality. Additionally, because variable control over air pressure adjusts the deck or trailer height, aligning loading docks to the level of the deck is possible when dock plates are unavailable.
3H630376 Industrial Air Spring Technical Data
Max. Rubber Bellows Width: 720 mm
Design Height: 376 mm
Stucture: Triple Convoluted
Compressed Height: 122 mm
Max. Expanded Height: 458 mm
Top Cover Plate Width: 642 mm
Bottom Cover Plate Width: 642 mm
Screw Type: 32×M10
Center to Center Distance: 605 mm
Packaging & Shipping
Packing Details
1. One piece in a poly bag.1piece in a carton.
2. Mark the product numbers and the QTY outside the carton.
3. As your requirement.
Shipping Details
1.Delivery time: Usually 2-8 working days after receiving the
payment.
2.Shipping by Air,By Sea,By Express(DHL,UPS,FEDEX...)
3.Please make sure the address is correct, after the goods are
shipped, we will track the logistics information until you receive
the goods.
We Have Other Type Flange Connection Air Springs
Model | Pass Through | Minimal Compression | Elongation | The Working Stroke |
3H680376 | 580 | 122 | 436 | 314 |
3H630037 | 580 | 122 | 436 | 314 |
3H580306 | 500 | 118 | 354 | 236 |
3H520312 | 400 | 122 | 360 | 238 |
3H480312 | 400 | 122 | 360 | 238 |
3H430370 | 330 | 122 | 430 | 308 |
3H400312 | 320 | 122 | 360 | 238 |
3H380316 | 300 | 122 | 370 | 248 |
3H360306 | 280 | 122 | 360 | 238 |
3H330306 | 250 | 120 | 354 | 234 |
3H310306 | 230 | 120 | 354 | 234 |
3H255322 | 200 | 118 | 400 | 282 |
3H255230 | 200 | 116 | 246 | 148 |
3H250260 | 185 | 116 | 299 | 183 |
