    Contitech FD 76-14 DS Norgren M/31062 Industrial Convoluted Air Spring with Flange

    Ask Lasest Price
    Brand Name : GUOMAT
    Model Number : 2B6x2T
    Certification : ISO/TS16949, ISO9001
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, Western Union
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Contitech FD 76-14 DS Norgren M/31062 Industrial Convoluted Air Spring with Flange

    Contitech FD 76-14 DS Norgren M/31062 Industrial Convoluted Air Spring with Flange


    Product Details


    TypeMax. DiameterMinimum Height (mm)Maximum Height (mm)Total StrokeStatic Height (mm)C to C DiameterSpace Required
    41/2×2125651458010093140
    6×216873170100120127180
    8×223072225153150156240
    91/4×226070240170160168275
    10×228070240170160181295
    12×233074240166160232345
    141/2×239570280210180283410
    16×243077320243180283445


    Cross Reference


    Dunlop6''x2
    DUNLOP6 X 2
    DUNLOP SPRINGRIDESP1482
    DUNLOP SPRINGRIDESP1 482
    Dunlop6x2 Steel
    Fire-stoneW01-R58-4053
    Fire-stoneW01 R58 4053
    Fire-stoneW01R584053
    Fire-stoneWO1-R58-4053
    Fire-stoneWO1 R58 4053
    Fire-stoneWO1R584053
    ContitechFD 76-14 DS
    ContitechFD 76-14 DS G 1/2 CR
    ContitechFD76-14DSG1/2CR
    ContitechFD76-14 DSG1/2CR
    ContitechFD 76-14 DSG1/2CR
    ContitechFD76-14DSG1/2CR
    NORGRENM/31062
    NORGRENM 31062
    NORGRENM31062
    PARKER9109001


    Flange Air Spring Advantages


    1. Long service life
    2. Maintenance-free
    3. Highly operational safety
    4. Frictionless
    5. Lateral misalignment possible
    6. Chemical resistance

    Precautions for Installing Air Springs


    1) Airsprings must not be pressurised unless they are restricted by an outside frame or by a suitable load.
    2) Strokes must be limited by the direct use of bump stops or external stops. When stacking airsprings, special cares must be taken to ensure the airsprings are guided and fixed
    3) An Airspring is a single acting air actuator and must not be used below atmospheric pressure.
    4) Please check the overpressure in case of quick compression

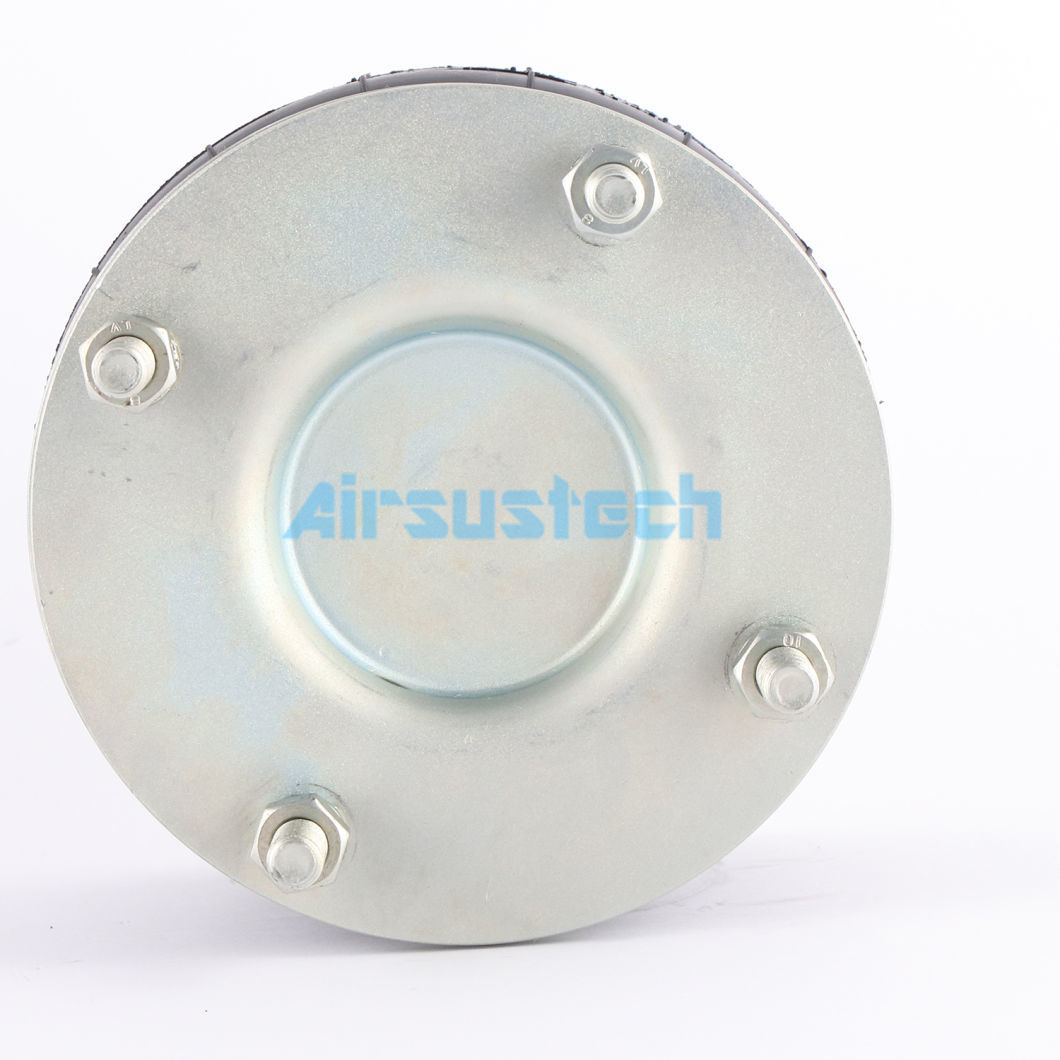

    The Related Picture of 6×2


    Continental Fd 76-14 Ds Norgren M/31062 Fire-Stone W01r584053 Flange Air SpringsContinental Fd 76-14 Ds Norgren M/31062 Fire-Stone W01r584053 Flange Air Springs

    Company Profile


    Guangzhou Guomat air spring Co., Ltd. was established in 2008 and is located in Guangzhou, the capital city of Guangdong Province. The company's production plant covers an area of 20,000 square meters and is located in Taihe Town, Baiyun District, Guangzhou City. With the continuous development of the company, it is gradually equipped with modern workshops and advanced rubber air spring equipment. It is one of the important air spring production bases in China. At the same time, Gomart used domestic advanced air spring processing equipment and introduced foreign air spring production technology, combined with the company's unique production process, and strictly implemented production in accordance with international standards to produce advanced products. All products comply with ISO9001, ISO/IS16949 standards.


    The main products of Guangzhou Guomat air spring Co., Ltd. are: rubber air springs, air suspension springs, rubber air springs for automobiles, airbags for passenger cars and trucks, industrial air springs, etc. The products cover buses, luxury cars, trucks, Commercial vehicles, rail vehicles, industrial machinery, industrial equipment and other industries. The company has hundreds of models and styles of products. At the same time, it can also carry out directional transformation and design of products according to the special needs of users, providing users with one-stop service.


    Continental Fd 76-14 Ds Norgren M/31062 Fire-Stone W01r584053 Flange Air Springs

    Factory Workshop
    Continental Fd 76-14 Ds Norgren M/31062 Fire-Stone W01r584053 Flange Air SpringsContinental Fd 76-14 Ds Norgren M/31062 Fire-Stone W01r584053 Flange Air Springs
