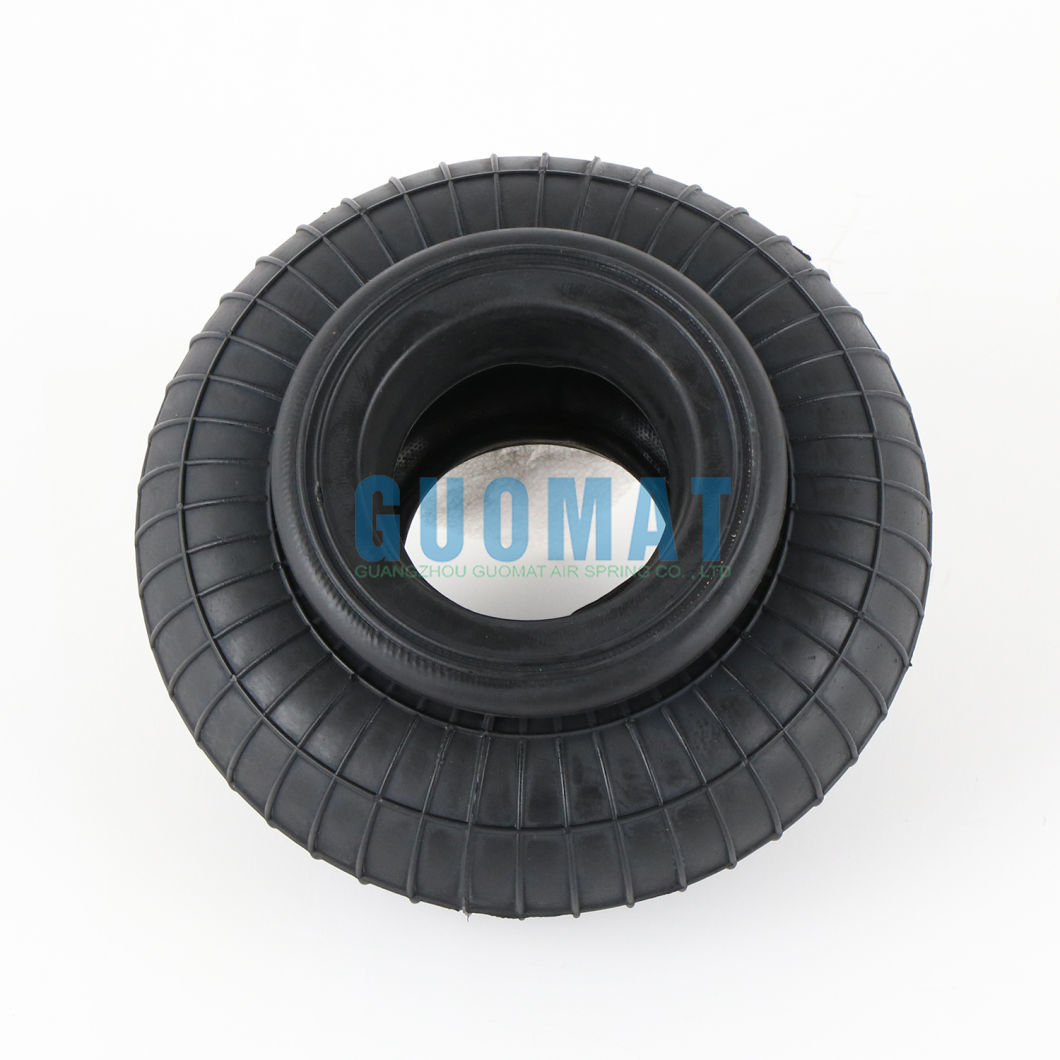

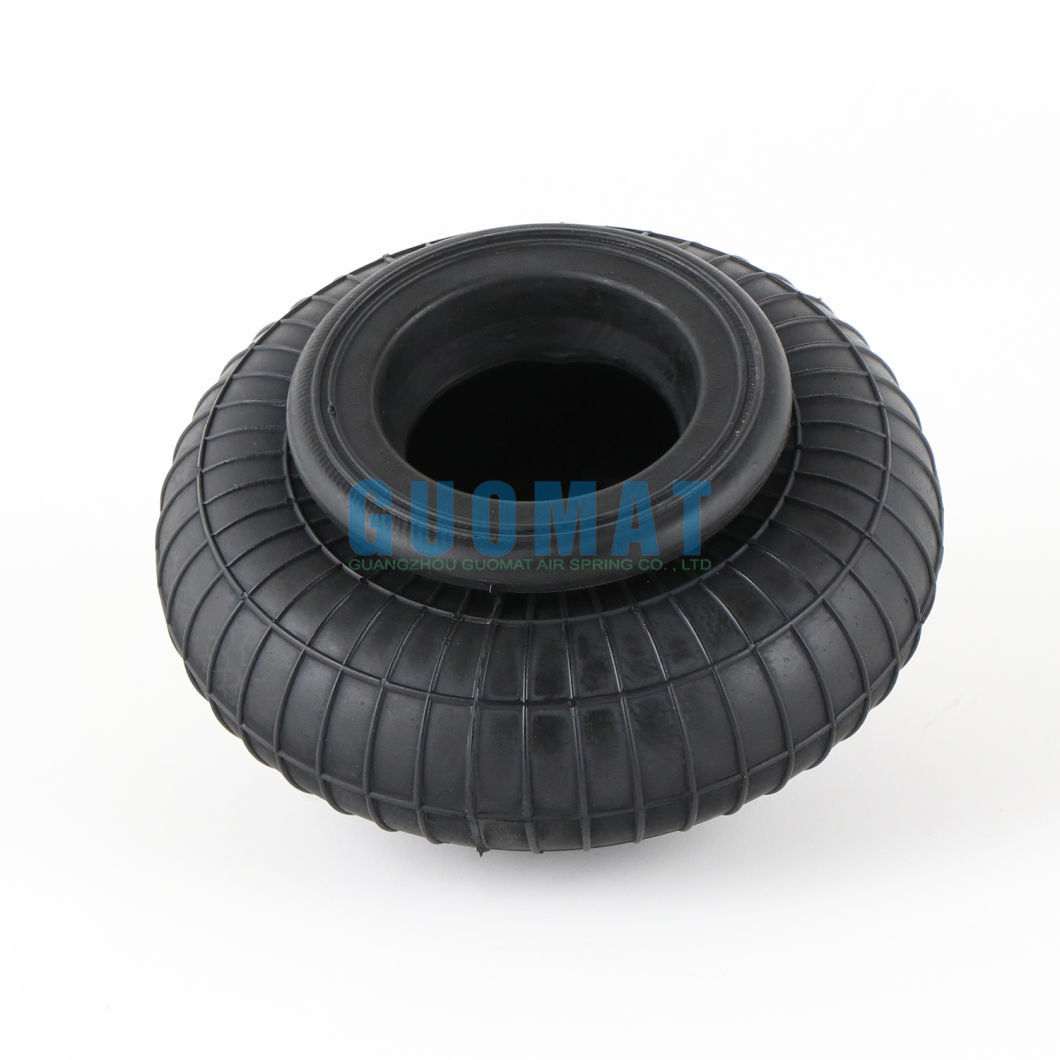

    Contitech FS70-7 Single Convoluted Rubber Bellow Weforma WBE 200-E1 Air Spring

    Ask Lasest Price
    Brand Name : GUOMAT
    Model Number : 1B7070
    Certification : ISO/TS16949, ISO9001
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, Western Union
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Contitech FS70-7 Single Convoluted Rubber Bellow Weforma WBE 200-E1 Air Spring

    Contitech FS70-7 Single Convoluted Rubber Bellow Weforma WBE 200-E1 Air Spring


    Product Introduction


    Whether you're hauling heavy loads or simply looking for a more comfortable ride, the AIRSUSTECH Industrial Air Springs are the perfect choice. With their durable construction, wide operating temperature range, and impressive stroke length, these air vibration bags are sure to provide the performance and reliability you need.


    Product Details


    Contitech

    FS70-7

    FS 70-7

    FS707

    Phoenix

    SP1B05

    SP 1B05

    SP 1B 05

    Bosch

    822419002

    822 419 002

    Festo

    EB-165-65

    EB 165 65

    EB16565

    Weforma

    WBE 200-E1

    WBE 200 E1

    WBE200E1



    Product Features


    Body Dia.[Max]: 6.50 in.
    Temperature Range : -40℃+70℃
    Air Inlet Type: Imperial
    Stroke Length [Max]: 2.5 in.
    Pressure [Max]: 0-8 bar
    Height [Max]: 4.5 in.
    Height [Min]: 2.0 in.
    Air Inlet: 1/4 NPT
    Nut/Blind Nuts: 2×3/8UNC
    Center to Center Distance: 1.75 in.
    Cover Plate Diameter: 4.25 in.


    Product Applications


    • Carton making machine
    • Mineral sample pulverizers
    • Spin washing machines
    • Expanded metal machine
    • Concrete brick machine
    • Rotating table with the air spring
    • Crushing machine
    • Concrete screening machine
    • Carpet extraction machine
    • Commercial laundry machines

    Other Type Air Springs


    1B12-305FS 40-6 CISP2906
    1B14-350FS 50-5 CISP2334
    1B14-352FS 70-7 CISP2913
    1B14-364FS 100-10 CISP1536
    1B15-376FS 120-10 CISP1537
    1B15-378FS 120-12 CISP2523
    1B12-313FS 200-10 CISP1540
    1B14-351FS 310-12 CISP1543
    1B14-362FS 330-11 CI
    1B15-377FS 330-14 CI
    1B15-375FS 530-11 CI
    FS 530-14 CI
    FS 960-12 CI
    FS 1330-11 CI


    Company Profile

    Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.
