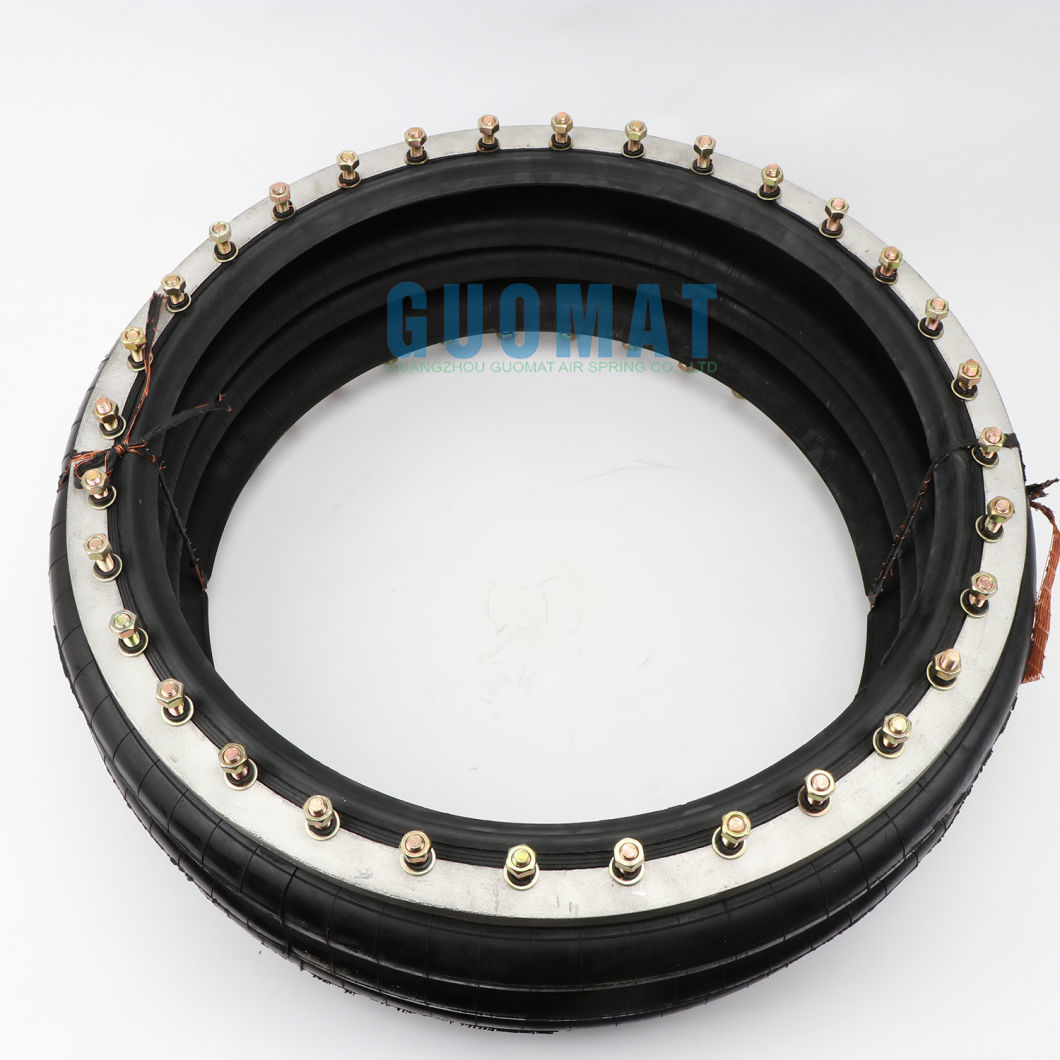

    W01-M58-6984 Air Bellow by Firestone Metric Triple Convoluted Flange Air Spring

    Ask Lasest Price
    Brand Name : GUOMAT
    Model Number : 3H6984
    Certification : ISO/TS16949, ISO9001
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, Western Union
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    W01-M58-6984 Air Bellow by Firestone Metric Triple Convoluted Flange Air Spring

    W01-M58-6984 Air Bellow by Firestone Metric Triple Convoluted Flange Air Spring


    Product Specification


    Nut length: 15 mm
    Number of screws on the top cover: 32
    Number of bottom cover screws: 32
    Top cover plate screw (nut) tooth: 32×(M10-1.5) bolts
    Top cover screw center distance: 596 mm
    Screw (nut) teeth of the bottom cover plate: 32×(M10-1.5) bolts

    Center distance of bottom cover plate screw: 596 mm

    Top cover diameter: 638 mm

    Diameter of bottom cover: 638 mm

    Maximum diameter of rubber bellows: 707 mm
    Buffer block/buffer block
    Waist ring/waist ring

    Strap ring: no strap ring


    Cross References


    Firestone Style 321


    Aluminum ribber neck bead rings (equal spcing), 45 mm bolts, nuts, washers:

    W01-M58-6984 / W01 M58 6984 / W01M586984

    WO1-M58-6984 / WO1 M58 6984 / WO1M586984


    Rubber bellows only:

    W01-358-7919 / W01 358 7919 / W013587919

    WO1-358-7919 / WO1 358 7919 / WO13587919


    GUOMAT Air Spring Advantages


    • Flexibility (no angle or alignment problem)
    • Compactness
    • Power / price ratio
    • No maintenance or lubrication required
    • Durability
    • Reliability
    • Resistance to aggressive or hot conditions

    Other Flange Air Springs


    Flange connection type of air spring model comparison table
    GUOMAT NO.Contitech NO.GUOMAT NO.Contitech NO.
    FS22-3DICRFS 22-3 DI CRFS960-12RSFS 960-12 RS
    FS44-5DICRFS 44-5 DI CRFS1330-11RSFS 1330-11 RS
    FS76-7DICRFS 76-7 DI CRFS1710-12RSFS 1710-12 RS
    FS76-7DSCRFS 76-7 DS CRFS2870-16RSFS 2870-16 RS
    FS138-8DSFS 138-8 DSFS5450-16RSFS 5450-16 RS
    FS210-10DSFS 210-10 DSFD960-22RSFD 960-22 RS
    FS412-10DSFS 412-10 DSFD1120-30RIFD 1120-30 RI
    FS614-13DSFS 614-13 DSFD1330-25RSFD 1330-25 RS
    FS816-15DSFS 816-15 DSFD1710-25RSFD 1710-25 RS
    FD22-4DICRFD 22-4 DI CRFD1730-40RIFD 1730-40 RI
    FD44-10DICRFD 44-10 DI CRFD2380-24RSFD 2380-24 RS
    FD76-14DICRFD 76-14 DI CRFD2470-40RIFD 2470-40 RI
    FD76-14DSCRFD 76-14 DS CRFD2870-30RSFD 2870-30 RS
    FD138-18DSFD 138-18 DSFD5450-28RSFD 5450-28 RS
    FD209-21DSFD 209-21 DSFT960-34RSFT 960-34 RS
    FD210-22DSFD 210-22 DSFT1330-35RSFT 1330-35 RS
    FD412-18DSFD 412-18 DSFT1710-38RSFT 1710-38 RS
    FD614-26DSFD 614-26 DSFT2870-45RSFT 2870-45 RS
    FD816-30DSFD 816-30 DSFT5450-44RSFT 5450-44 RS
    FT22-6DICRFT 22-6 DI CR
    FT44-15DICRFT 44-15 DI CR
    FT76-20DICRFT 76-20 DI CR
    FT76-20DSCRFT 76-20 DS CR
    FT138-26DSFT 138-26 DS
    FT210-32DSFT 210-32 DS
    FT412-32DSFT 412-32 DS
    FT614-36DSFT 614-36 DS
    FT816-40DSFT 816-40 DS

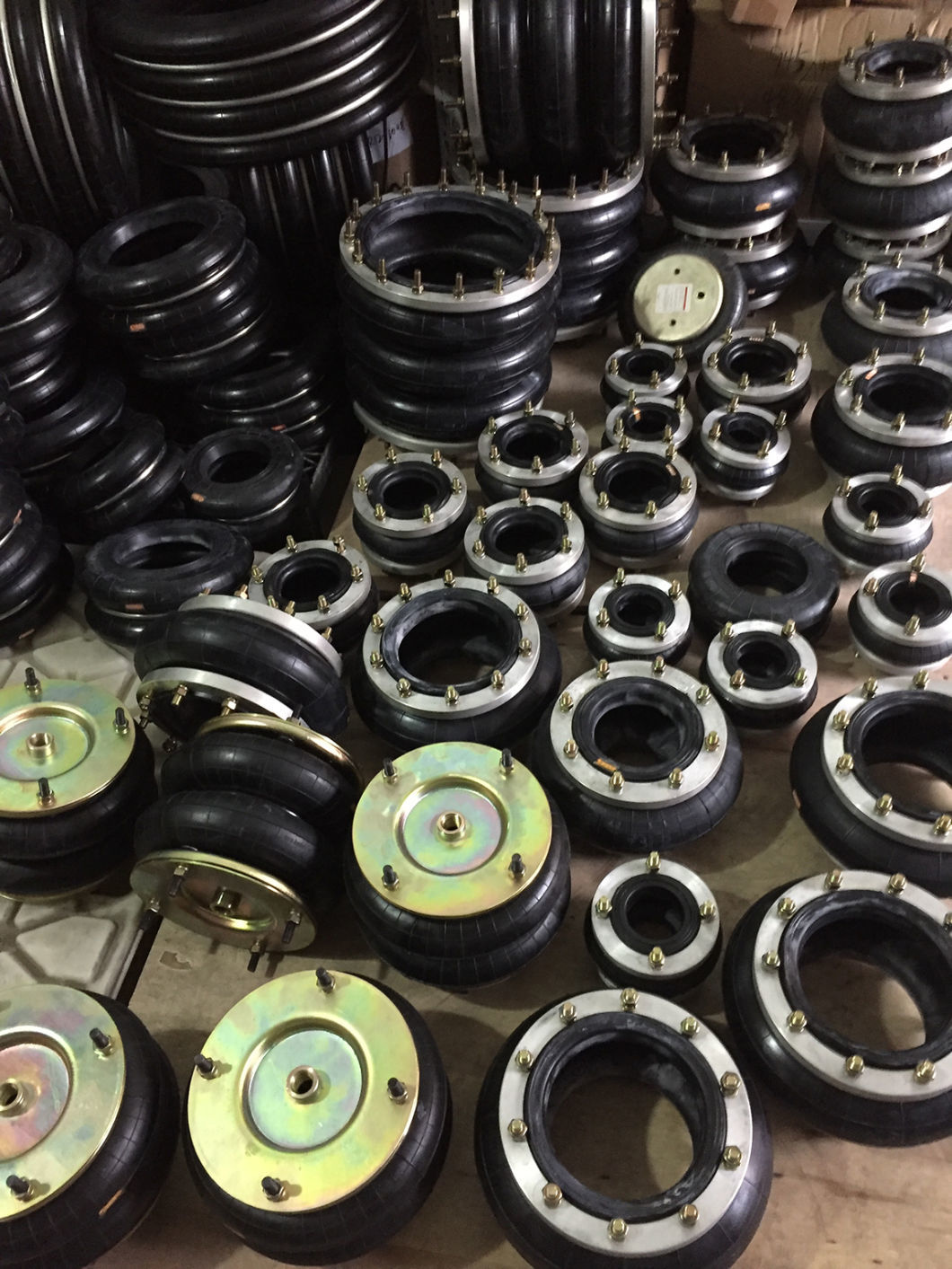

    The Real Photos


    W01m586984 Fire Stone Air Spring Guomat 3b6984 at 0.7 MPa Max Dia 715mm for Industrial Big Load Machine
    W01m586984 Fire Stone Air Spring Guomat 3b6984 at 0.7 MPa Max Dia 715mm for Industrial Big Load Machine
    W01m586984 Fire Stone Air Spring Guomat 3b6984 at 0.7 MPa Max Dia 715mm for Industrial Big Load Machine

    W01m586984 Fire Stone Air Spring Guomat 3b6984 at 0.7 MPa Max Dia 715mm for Industrial Big Load Machine
