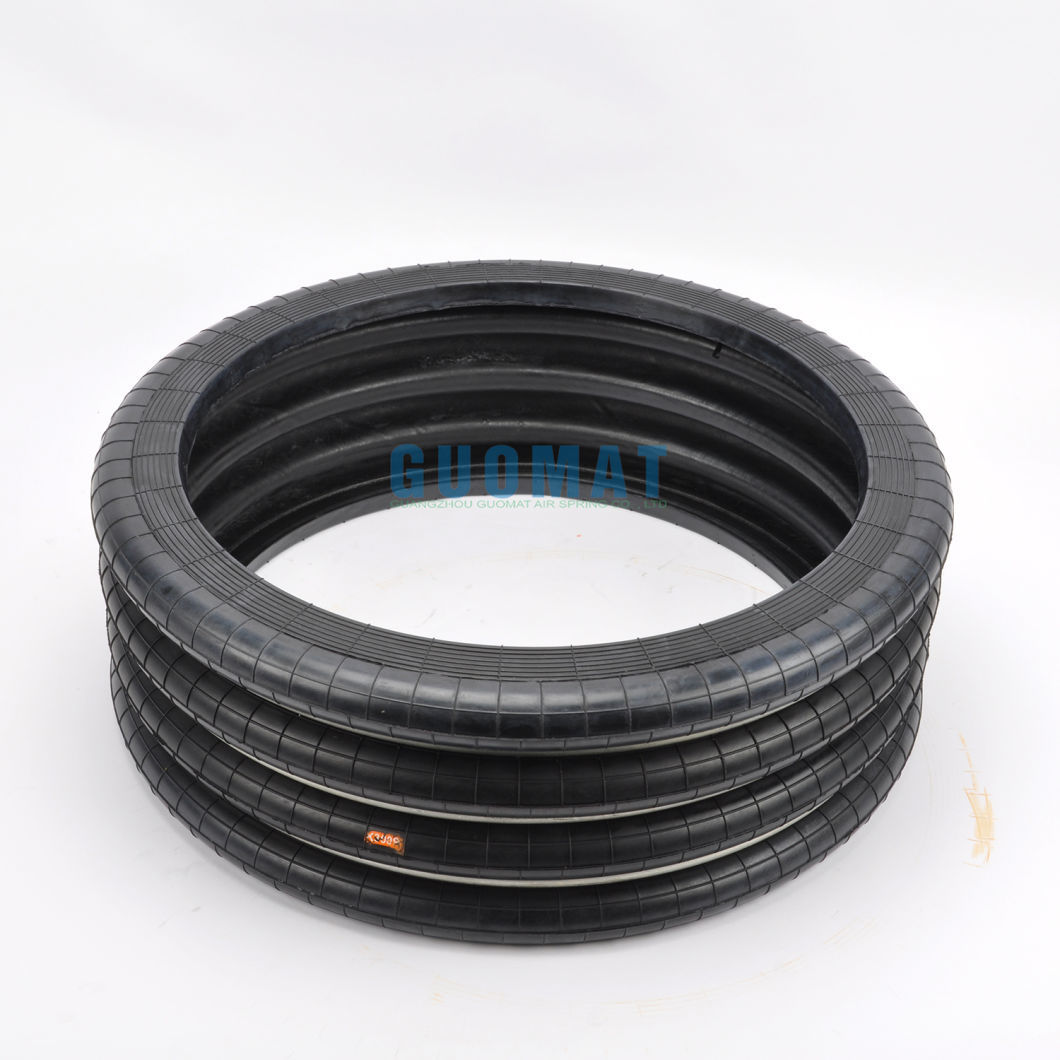

    Convoluted Structure Bellows S-600-4 Yokohama Punch Air Springs with Steel Hoop

    Ask Lasest Price
    Brand Name : GUOMAT
    Model Number : F-600-4
    Certification : ISO/TS16949, ISO9001
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, Western Union
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Convoluted Structure Bellows S-600-4 Yokohama Punch Air Springs with Steel Hoop

    Convoluted Structure Bellows S-600-4 Yokohama Punch Air Springs with Steel Hoop


    Product Description


    Punch air springs are widely used in stamping and forming of electronics, communications, computers, household appliances, furniture, transportation, (automobiles, motorcycles, bicycles) hardware parts, etc. They are widely used in manufacturing industries such as precision machinery, instruments, computers, cameras, automobiles, motorcycles, computers, equipment, and household appliances.

    Product Technical Data


    GUOMATReference NO.Height H(mm)

    Common Maximum Travel

    (mm)

    Compression Max Outside Diameter (mm)

    Effective Area

    (cm2)

    Volume

    (L)

    Design Height (mm)Max Height (mm)

    Min Height

    (mm)

    F-600-5S-600-5276456156±113660283076.6
    F-600-4S-600-4218363123±90660283059.9
    F-600-3S-600-316027090±68660283043.2
    F-600-2S-600-210217257±45660283026.3
    F-600-1S-600-17212240±30700283019.0
    Air Springs Can Reduce Your Costs And Increase Your Profits
    1. Lasting at least twice, and up to four times longer than steel springs
    2. Requiring minimal or no maintenance
    3. Extending the lifespan of tires and brake linings
    4. Drastically reducing damage and maintenance for other vehicle components, such as electrical systems, air conditioning, cab mounts, exhausts, chassis, seals, wiring, and drive trains
    5. Enabling flexible hauling options and eliminating costly deadhead trips
    6. Enhancing driver comfort and reducing fatigue, ultimately improving safety, productivity, and loyalty
    Other Types
    GUOMAT Part NO.Japan YOKOHAMA Reference No.Japan YOKOHAMA Reference No.GUOMAT Part NO.Japan YOKOHAMA Reference No.Japan YOKOHAMA Reference No.
    F-600-1S-600-1RS 600 1RF-240-4S-240-4RS 240 4R
    F-600-2S-600-2RS 600 2RF-240-3S-240-3RS 240 3R
    F-600-3S-600-3RS 600 3RF-240-2S-240-2RS 240 2R
    F-600-4S-600-4RS 600 4RF-240-1S-240-1RS 240 1R
    F-600-5S-600-5RS 600 5RF-220-4S-220-4RS 220 4R
    F-550-2S-550-2RS 550 2RF-220-3S-220-3RS 220 3R
    F-550-3S-550-3RS 550 3RF-220-2S-220-2RS 220 2R
    F-500-2S-500-2RS 500 2RF-200-2S-200-2RS 200 2R
    F-500-3S-500-3RS 500 3RF-200-3S-200-3RS 200 3R
    F-500-4S-500-4RS 500 4RF-200-4S-200-4RS 200 4R
    F-500-5S-500-5RS 500 5RF-160-1S-160-1RS 160 1R
    F-450-1S-450-1RS 450 1RF-160-2S-160-2RS 160 2R
    F-450-2S-450-2RS 450 2RF-160-3S-160-3RS 160 3R
    F-450-3S-450-3RS 450 3RF-160-4S-160-4RS 160 4R
    F-450-4S-450-4RS 450 4RF-120-4S-120-4RS 120 4R
    F-450-5S-450-5RS 450 5RF-120-3S-120-3RS 120 3R
    F-400-2S-400-2RS 400 2RF-120-2S-120-2RS 120 2R
    F-400-3S-400-3RS 400 3RF-100-4S-100-4RS 100 4R
    F-400-4S-400-4RS 400 4RF-90-3S-90-3RS 90 3R
    F-400-5S-400-5RS 400 5RF-90-2S-90-2RS 90 2R
    F-350-1S-350-1RS 350 1RF-90-1S-90-1RS 90 1R
    F-350-2S-350-2RS 350 2RF-300-1S-300-1RS 300 1R
    F-350-3S-350-3RS 350 3RF-300-2S-300-2RS 300 2R
    F-350-4S-350-4RS 350 4RF-300-3S-300-3RS 300 3R
    F-300-4S-300-4RS 300 4R

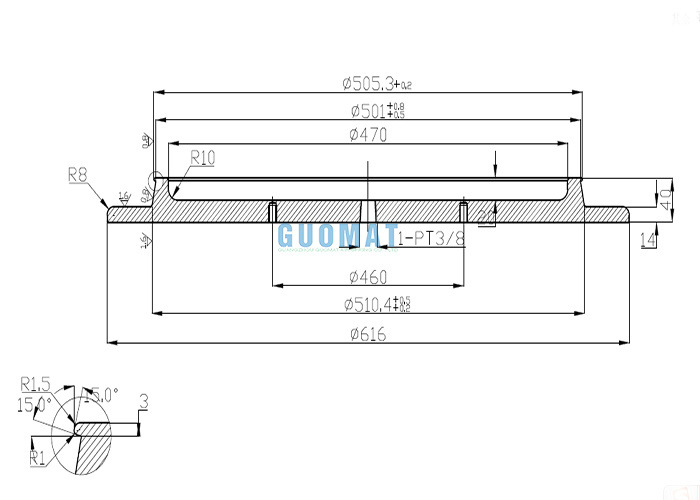

    F-600-4 Metal Cover Drawing
