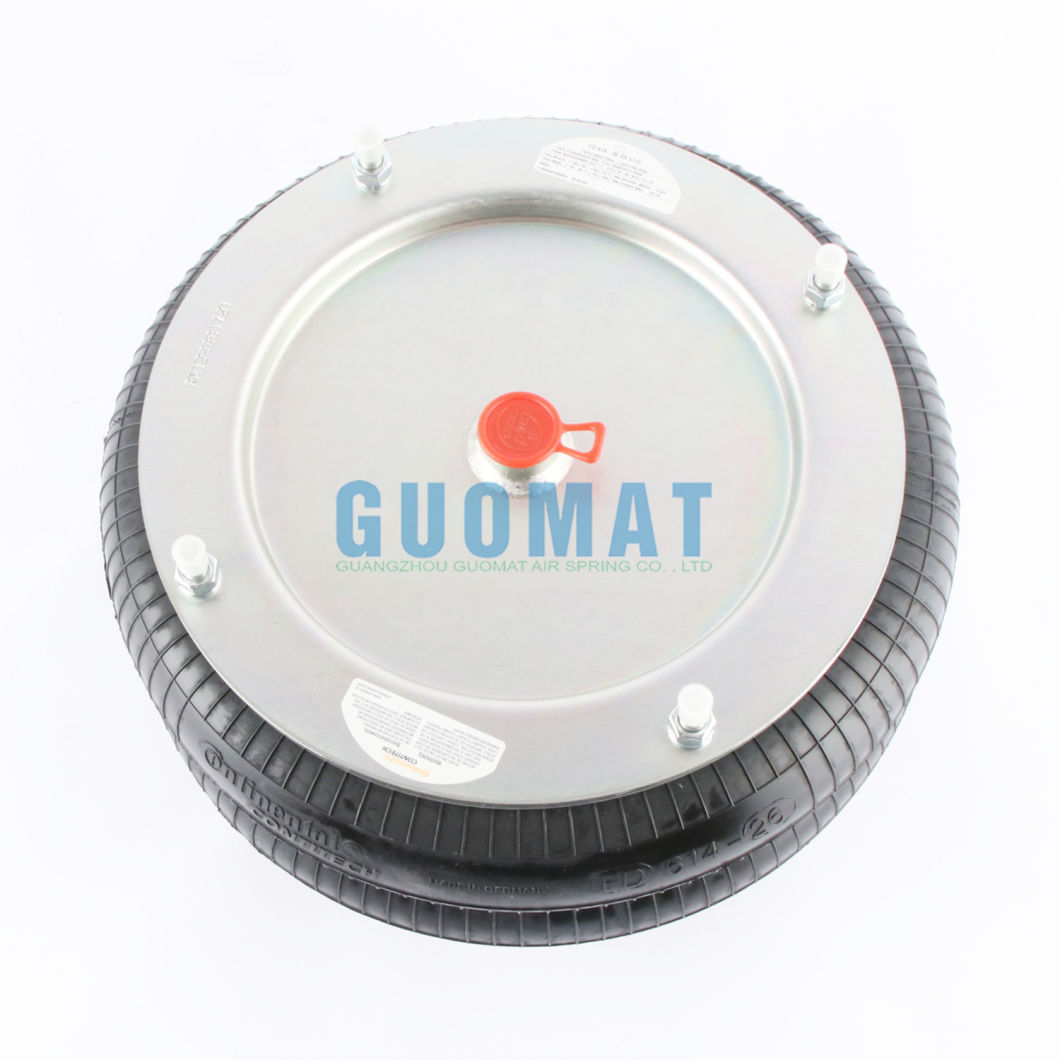

    Flange Ring Air Bellow Contitech FD 614-26 Firestone W01-R58-4064 Truck Air Spring

    Ask Lasest Price
    Brand Name : GUOMAT
    Model Number : 2H4064
    Certification : ISO/TS16949, ISO9001
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, Western Union
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Flange Ring Air Bellow Contitech FD 614-26 Firestone W01-R58-4064 Truck Air Spring

    Flange Ring Air Bellow Contitech FD 614-26 Firestone W01-R58-4064 Truck Air Spring


    About Air Spring


    Air springs have been a staple in heavy-duty vehicle suspension systems for nearly a century, leveraging compressed air from braking systems to deliver dual benefits over mechanical leaf or coil springs. First, air suspension enhances ride comfort by allowing adjustable air pressure, which modifies the spring rate and improves ride quality. Second, the ability to regulate air pressure enables precise deck or trailer height adjustments, facilitating easier alignment with loading docks when dock plates are not available.


    Product Details

    Cover Plate
    Top Cover Plate Diameter310 mm
    Screw Center Distance of Top Cover Plate282.5 mm
    Bottom Cover Plate Diameter310 mm
    Screw Center Distance of Bottom Cover Plate282.5 mm
    Nut/Blind Nuts
    Top Cover Plate Screw(Nut) Tooth4×M10
    Bottom Cover Plate Screw(Nut) Tooth4×M10
    Gas Hole/Air Inlet/Air Fitting
    Air HoleG 1/2
    Rubber Bellow
    Rubber Bellow Max. Diameter400 mm
    Space Required425 mm
    Minimum Height75 mm
    Maximum Height340 mm

    Cross Reference


    Contitech FD614-26
    Contitech FD 614-26
    Contitech FD614-26 DS G1/4
    Contitech FD 614-26 DS G1/4
    Fire stone W01-R58-4064 W01R584064 W01 R58 4064
    Weweler USN 510010DX
    Gigant 881205
    Fire stone 14.5x2
    DUNLOP FR, SP 1556
    NORGREN, M/31142 (141/2x2)


    Product Applications


    • Large drying machines
    • Vibratory conveyors
    • Electronic equipment
    • Compressors
    • Conveyor loading points
    • Textile looms
    • Rotary shaft actuators
    • Conveyor or transfer systems

    Company Profile

    Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.
