Contitech Suspension Air Spring FT 330-29 Goodyear 3B12-304
Effective Shock
Product Specification
Body Dia.[Max]: 325 mm
Compressed Height: 110 mm
Temperature Range : -40℃+70℃
Air Inlet Type: Imperial
Stroke Length [Max]: 320 mm
Pressure [Max]: 0-8 bar
Height [Max]: 110 mm
Height [Min]: 430 mm
Air Inlet: G1/4
Nut/Blind Nuts: M8
Center to Center Distance: 157.5 mm
Cross References
Goodyear: 3B12-304
Bellow Type: Triple
Automann Bellow: SP3B22R
Fire-stone Bellow: 38D was 38
Goodyear Bellow: 578-93-3-100
Contitech Bellow: FT 330-29
Triangle Bellow: 6334
We Can Offer Other Types Air Springs
| Single Convoluted | Double Convoluted | Triple Convoluted |
| FS 40-6 CI | FD 40-10 CI | FT 330-29 CI |
| FS 50-5 CI | FD 70-13 CI | FT 430-32 CI |
| FS 70-7 CI | FD 110-15 CI | FT 530-32 CI |
| FS 100-10 CI | FD 120-17 CI | FT 530-35 CI |
| FS 120-10 CI | FD 120-20 CI | FT 960-34 CI |
| FS 120-12 CI | FD 200-19 CI | FT 1330-35 CI |
| FS 200-10 CI | FD 200-22 CI | |
| FS 310-12 CI | FD 200-25 CI | |
| FS 330-11 CI | FD 330-22 CI | |
| FS 330-14 CI | FD 330-30 CI | |
| FS 530-11 CI | FD 530-22 CI | |
| FS 530-14 CI | FD 530-35 CI | |
| FS 960-12 CI | FD 960-22 CI | |
| FS 1330-11 CI | FD 1330-25 CI | |
The Benefits of Air Spring For Jacks Are Mainly Reflected In The
Following Aspects
1. Routine maintenance
In terms of daily maintenance, due to the working process of the
mechanical jack is closely connected with the rotation of the
screw, mechanical jack need to periodically check the maintenance,
albeit in when not in use, if you don't pay attention to the
lubrication rust mechanical jack, it is easy to cause the screw
rust, produce a lot of rust, stuck screw, even cause irreversible
damage. And the air bag jack almost does not need any routine
maintenance work, when not in use, just need to put the air bag in
a cool and dry environment can be static.
2. Environment
Mechanical jack because of exposed thread, compact structure, the
surface has more lubricating oil, in use, if the environment is
more dusty sand, it is easy to stick to the screw of the mechanical
jack, damage the equipment. And the air bag jack because of its
good integrity, smooth and dry surface, can well avoid this
problem.
3. Load-bearing capacity
The general bearing capacity of the air bag jack is about 3 tons or
so, customized up to 15 tons or so, although not as good as the
lifting capacity of the mechanical jack outstanding, but also
enough to cope with most of the actual situation.
4. Initial height requirements
If mechanical jacks are used, a larger starting height is required,
while airbag jacks do not require such a large starting height.
Company Profile
Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the
company covers an area of 20000 square meters, registered capital
is 10 million yuan, the existing various types of professional and
technical personnel is 85 people.The company is located in
Guangzhou, about 15min's drive from Baiyun Airport. and our main
products are air spring, rubber bellows, air suspension spring, air
suspension compressor and refitted suspension system. They are
widely used in bus, truck, cabin, vehicles' seat, luxurious car and
industrial machine field.

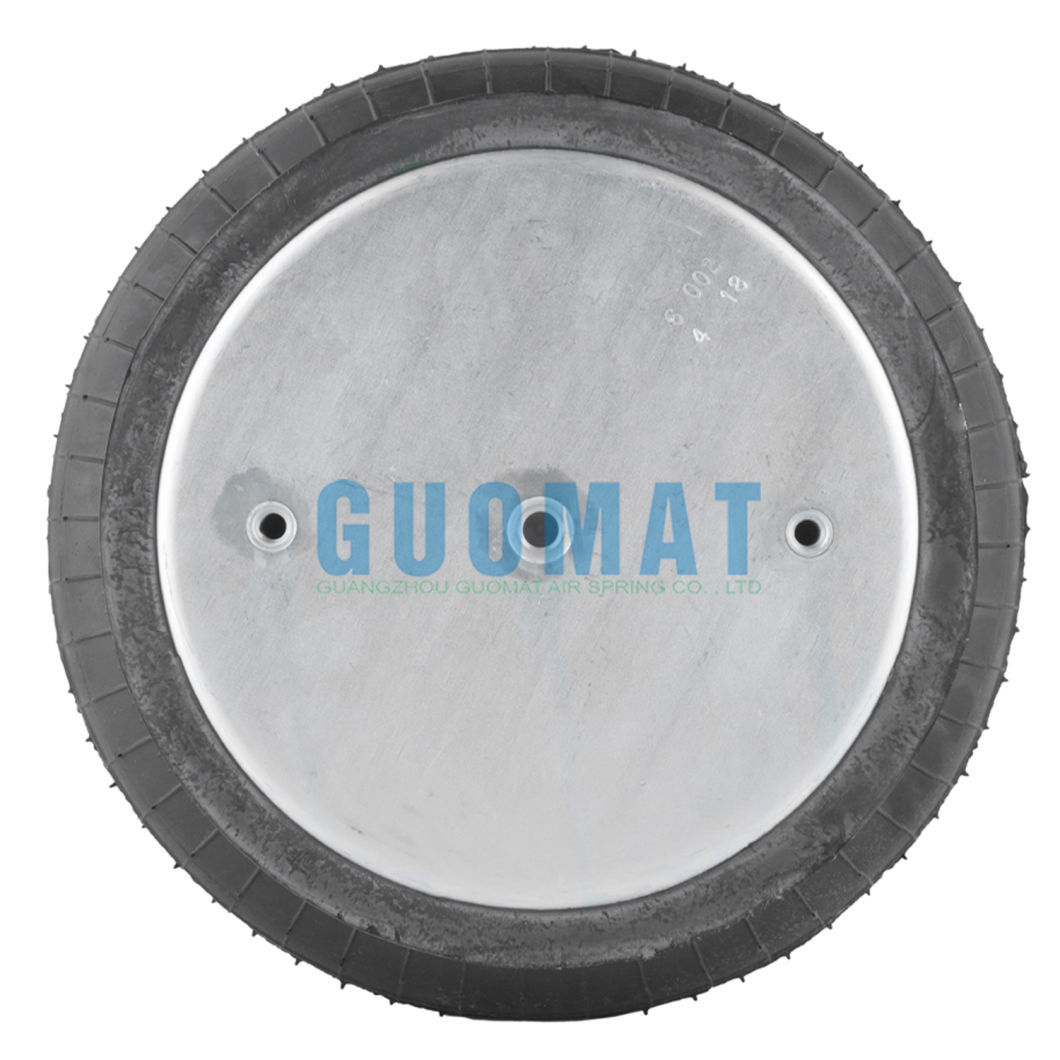

Product Images
