Goodyear Air Spring 2B6-833 Fabio 2DC-155-1C Rubbe Bellow for Reduction Vibrator

Product Features

The Goodyear 2B6-833 air spring distinguishes itself from other traditional double-layer models due to its folding design and sleeve bellows. This design significantly enhances vibration reduction, offering twice the damping performance compared to standard Goodyear air springs.
While providing similar features and functionality, the sleeve-type design includes a unique structure where the end cap bracket is securely fastened by compressing the elastic element between the bracket and the external crimping ring.
Additionally, the end cap holders of the Goodyear 2B6-833 air spring are made from aluminum alloy, offering superior corrosion resistance compared to traditional iron components, ensuring enhanced durability and a longer lifespan.

OEM Original Manufacturer

For Goodyear: 2B6-833, 2B6 833, 2B6833

For Goodyear Flex No.: 579-92-3-510, 579 92 3 510, 579923510

For Contitech: FD 70-13 CI G1/4

For Contitech: FD 70-13 CI G1/4 M8

For Contitech: FD 70-13 1/4 M8

For Contitech: FD70-13 CI 2682 015 000

For Contitech Bellow: FD 70-13, FD 70 13, FD7013

For Enidine: YI-2B6-833, YI 2B6 833, YI2B6833

For Firestone No.: W01-M58-6105, W01 M58 6105, W01M586105

For Firestone Style: 255-1.5, 255 1.5, 2551.5

For Festo: EB-165-125, EB 165 125, EB165125

For Order No.: 500140-WH

For Wuhlermann No.: 2RC-155-1C

For Gigant: 700196027, 196027

For Phoenix: SP 2 B 05 R-a, SP2B05R-a

Product Details

Rubber Bellow Design Diameter: 150mm

Design Height: 152mm

Cover Plate Diameter: 107mm

Center to Center Distance: 44.5mm

Air Connection: G1/4

Screw Type: M8

Product Characteristics

-Features: Manufactured through an integrated casting process, ensuring excellent airtightness, leak-proof performance, high surface density, and exceptional burst resistance.
-Easy Installation: Designed with original model dimensions, allowing for direct replacement without any modifications, making installation quick and hassle-free.
-Superior Quality: Advanced technology enhances durability, offering improved resistance to wear, acid, and corrosion, along with an extended service life.
-Innovative Design: Specifically crafted to provide a comfortable suspension, featuring high compression strength and superior sound insulation to guarantee a safer and more comfortable driving experience.

Other OEM Numbers of Air Springs

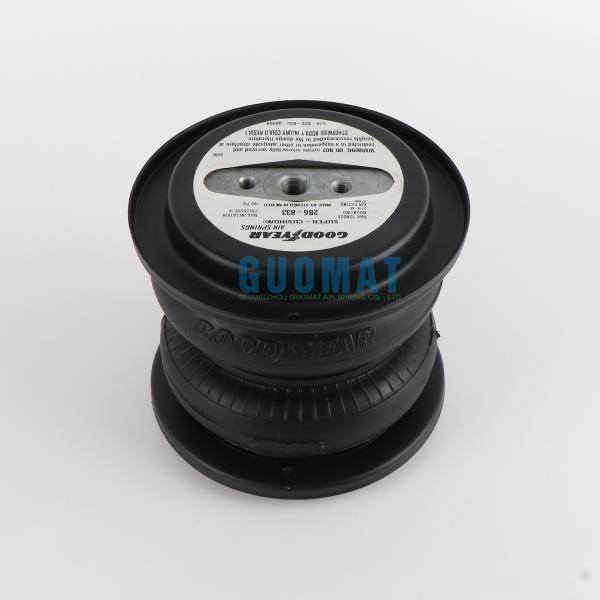

The Real Photos
