Brand Name : | GUOMAT |
Model Number : | 2B8-850 |
Certification : | ISO/TS16949, ISO9001 |
Price : | Negotiable |
Payment Terms : | L/C, D/A, D/P, Western Union |
Supply Ability : | 1000PCS/Week |
Delivery Time : | 5-8 Working Days |
Goodyear 2B8-850 Air Rubber Bellow FD 120-20 CI G1/4 Firestone
W01-M58-6353
Technical Data
Expanded Height: 270mm
Static Height: 196mm
Compressed Height: 77mm
Max. Diameter: 185mm
Screw Type: M8-H6
C to C Diameter: 70mm
Pneumatic Connection: G1/4
Stud / Hole Qty of The Top Plate: 3
Stud / Hole Qty of The Bottom Plate: 2
Replaces These Air Springs
Goodyear: 2B8-850 / 2B 5 850 / 2B8850 |
Goodyear Flex No.: 579-92-3-530 / 579 92 3 530 / 579923530 |
Contitech: FD 120-20 CI G1/4 |
Contitech: FD 120-20 CI G1/4 M8 |
Contitech: FD 120-20 CI 62055 |
Contitech Bellow: FD 120-20 / FD120-20 / FD12020 |
Firestone No.: W01-M58-6353 / W01 M58 6353 / W01M586353 |
Firestone Style: 26 |
Enidine: YI-2B8-850 / YI2B 850 / YI2B8850 |
Advantages of Our Shock Absorbers
- Enhanced Driving Comfort: Our shock absorbers effectively
eliminate abnormal sounds, reduce noise, and minimize vibrations
during driving, ensuring a smoother and more enjoyable ride.
- Lower Fuel Consumption & Extended Lifespan: They help decrease
fuel usage, extend the lifespan of chassis-related components, and
reduce overall vehicle maintenance costs.
- Superior Stability: Even on sharp turns, winding roads, or uneven
terrain, our shock absorbers automatically adjust the vehicle's
body height to maintain consistent comfort and ensure stability.
Double Convoluted Type Air Spring
Part NO. | Usable Stroke | Max Dia @ 100 psi In. | Min Height In. | Max Height In. | Force at Actuator H. Limit (Pounds) | Force at Compressed H. Limit (Pounds) | ||||||
100 psi | 80 psi | 60 psi | 40 psi | 100 psi | 80 psi | 60 psi | 40 psi | |||||
2B6-530 | 4.5 | 6.5 | 2.8 | 7.7 | 595 | 405 | 235 | 95 | 2865 | 2320 | 1800 | 1255 |
2B6-531 | 4.5 | 6.5 | 2.8 | 7.7 | 595 | 405 | 235 | 95 | 2865 | 2320 | 1800 | 1255 |
2B6-532 | 4.3 | 6.5 | 3.4 | 7.7 | 595 | 405 | 235 | 95 | 2465 | 1940 | 1455 | 970 |
2B6-535 | 5.9 | 7.0 | 2.8 | 9.1 | 585 | 400 | 215 | 90 | 3395 | 2790 | 2170 | 1505 |
2B6-536 | 5.7 | 7.0 | 3.4 | 9.1 | 585 | 400 | 215 | 90 | 3000 | 2420 | 1820 | 1270 |
2B7-540 | 6.5 | 8.0 | 2.5 | 9.0 | 835 | 550 | 295 | 110 | 3220 | 2535 | 1860 | 1240 |
2B7-541 | 6.5 | 8.0 | 2.5 | 9.0 | 835 | 550 | 295 | 110 | 3220 | 2535 | 1860 | 1240 |
2B7-545 | 6.5 | 8.0 | 2.5 | 9.0 | 835 | 550 | 295 | 110 | 3220 | 2535 | 1860 | 1240 |
2B7-546 | 6.5 | 8.0 | 2.5 | 9.0 | 835 | 550 | 295 | 110 | 3220 | 2535 | 1860 | 1240 |
2B8-550 | 7.1 | 8.6 | 2.8 | 10.3 | 850 | 600 | 350 | 100 | 5150 | 4150 | 3100 | 2150 |
2B8-552 | 7.1 | 8.6 | 2.8 | 10.3 | 850 | 600 | 350 | 100 | 5150 | 4150 | 3100 | 2150 |
2B8-553 | 7.1 | 8.6 | 2.8 | 10.3 | 850 | 600 | 350 | 100 | 5150 | 4150 | 3100 | 2150 |
2B8-554 | 6.8 | 8.6 | 3.5 | 10.3 | 850 | 600 | 350 | 100 | 4650 | 3700 | 2800 | 1900 |

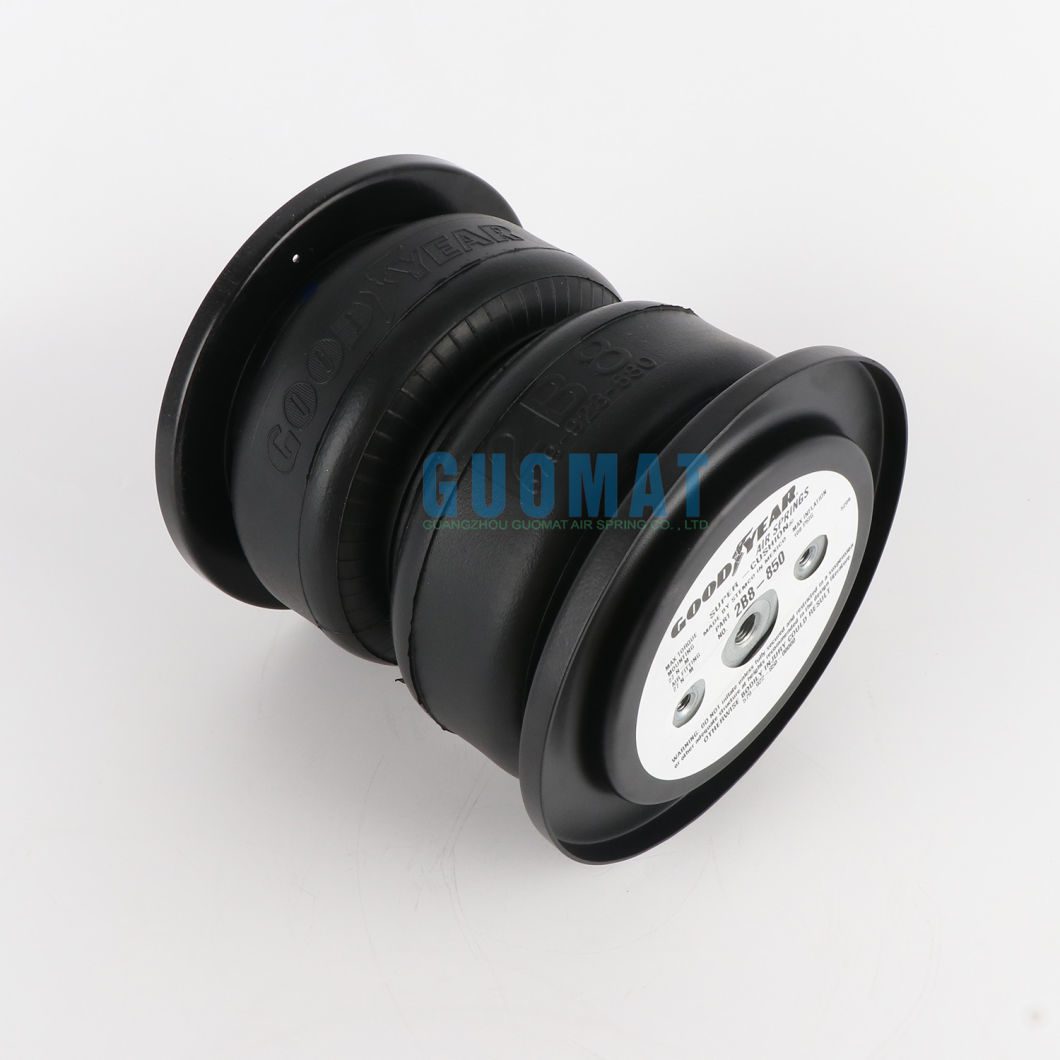

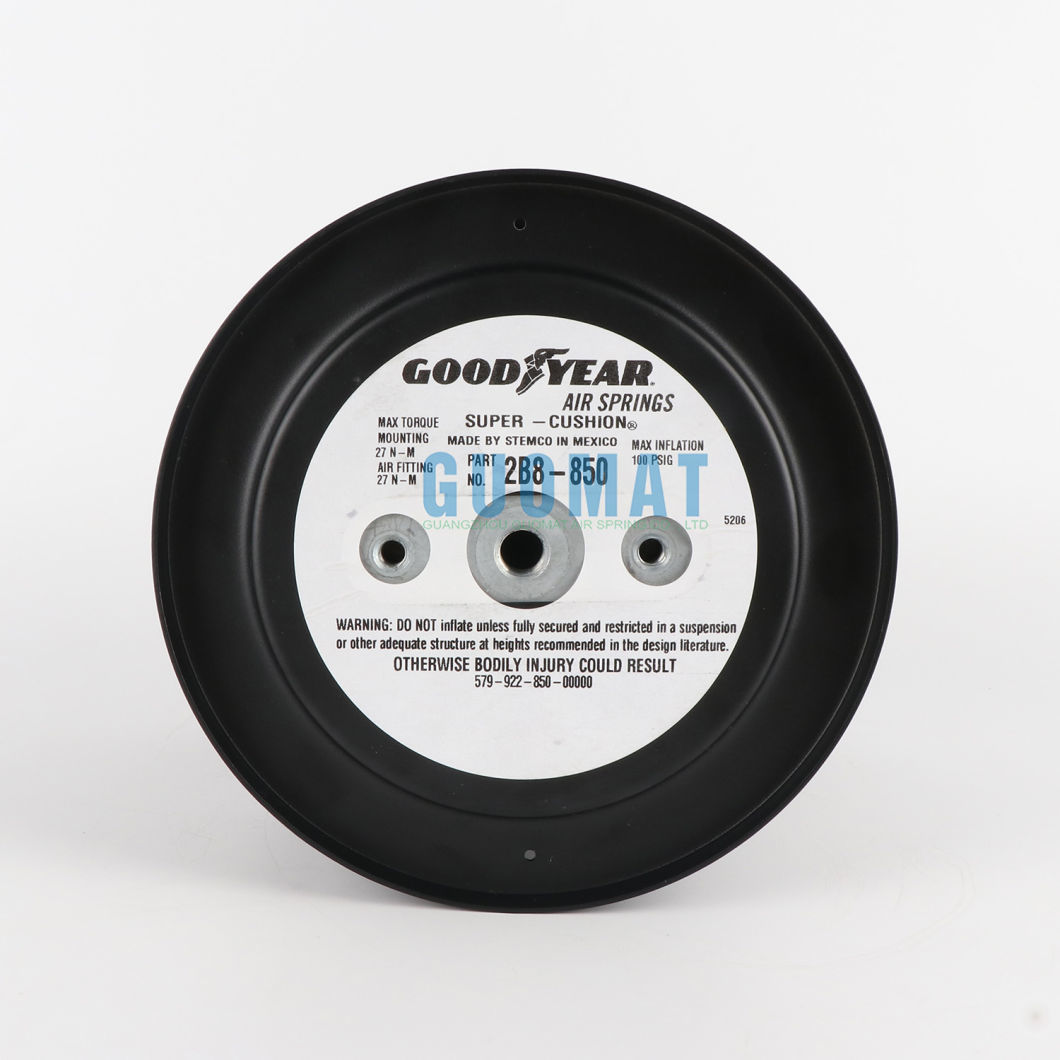

The Real Photos
![]() |
