    Rolling Lobe Air Spring Rubber Bellow 566-24-3-038 for Goodyear 1R12-541

    Ask Lasest Price
    Brand Name : GUOMAT
    Model Number : 1R12-541
    Certification : ISO/TS16949, ISO9001
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, Western Union
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Rolling Lobe Air Spring Rubber Bellow 566-24-3-038 for Goodyear 1R12-541

    Rolling Lobe Air Spring Rubber Bellow 566-24-3-038 for Goodyear 1R12-541


    Product Information


    Air Spring AS0113G
    Goodyear #: 1R12-541
    Bellow Type: Rolling Lobe
    Automann Bellow #: 1DK23K
    Firestone Bellow #: 1T15M-6
    Goodyear Bellow #: 566-24-3-008
    Contitech Bellow #: 9 10-16
    Triangle Bellow #: 6363
    Bottom Plate/Pison Type: Composite
    Top Plate Hole/Stud Qty: 2
    Top Plate Dia: 9
    Top Plate C to C Diameter: 6.2
    Bottom Plate Hole Stud Qyt: 4
    Bottom Plate Dia: 9.8
    Bottom Plate C to C Diameter: 7.87
    Bottom Plate Part #: 566-20-7-209
    Bottom Plate Alignment: Parallel
    Bumper: Yes
    Bracket: N/A
    Min Height: 6.5
    Max Height: 20.7


    OEM Cross Number


    Goodyear 1R12-541
    Goodyear 1R12 541
    Goodyear 1R12541
    Goodyear Flexmember 566-24-3-038
    Goodyear Flexmember 566 24 3 038
    Goodyear Flexmember 566243038
    Goodyear Piston 566-20-7-209

    Top Plate Hole/Stud: 2
    Bottom Plate Hole/Stud: 4
    Top Plate Diameter: 228.6 MM
    Bottom Plate Diameter:249 MM
    Collapsed Height: 165.1 MM
    Flexmember: 566-24-3-038
    Piston: 566-20-7-209
    Piston Type: C
    Goodyear Trimmed: 1R12541
    Conti Tech: 64650
    Conti Tech: 910-16P769
    Watson & Chalin: AS0113G


    Goodyear Cross References


    TRUCK & TRAILER AIR SPRINGS
    1R11-0281R11-2191R11-2201R11-2211R11-242
    1R11-2681R112-0921R12-3751R12-4011R12-403
    1R12-4191R12-4321R12-4841R12-5341R12-541
    1R12-5471R12-5521R12-5531R12-5551R12-602
    1R12-6031R12-6421R12-6641R12-10931R13-039
    1R13-1181R13-1191R13-1551R13-2391R14-117
    1R14-1271R14-1591R14-1601R14-1711R14-172
    1R12-215
    TRUCK CABIN AIR SPRINGS
    1S4-0071S4-0081S4-0671S4-2341S5-005
    1S5-0381S5-0571S5-1521S5-1541S5-157
    1S5-1641S5-1751S5-1761S5-1861S6-023
    1S6-0552B9-2012B9-4952B12-406

    Advantages of Air Spring Shock Absorbers Compared to Traditional Springs


    - Superior Shock Absorption: Air springs provide outstanding damping performance, minimizing vibrations effectively.
    - Consistent Stability: They deliver stable shock absorption, ensuring smooth operation under varying conditions.
    - Accurate Height Adjustment: Air springs allow precise control over height for enhanced functionality and adaptability.
    - Diverse Size Options: Available in a wide range of sizes to meet various application requirements.
    - Prolonged Equipment Lifespan: Their design helps reduce wear and tear, extending the operational life of machinery.
    - Effective Noise Reduction: Air springs significantly lower noise levels during operation, improving the overall work environment.


    Given these advantages, air spring shock absorbers have seen widespread application across different industries, enhancing performance and operational efficiency.

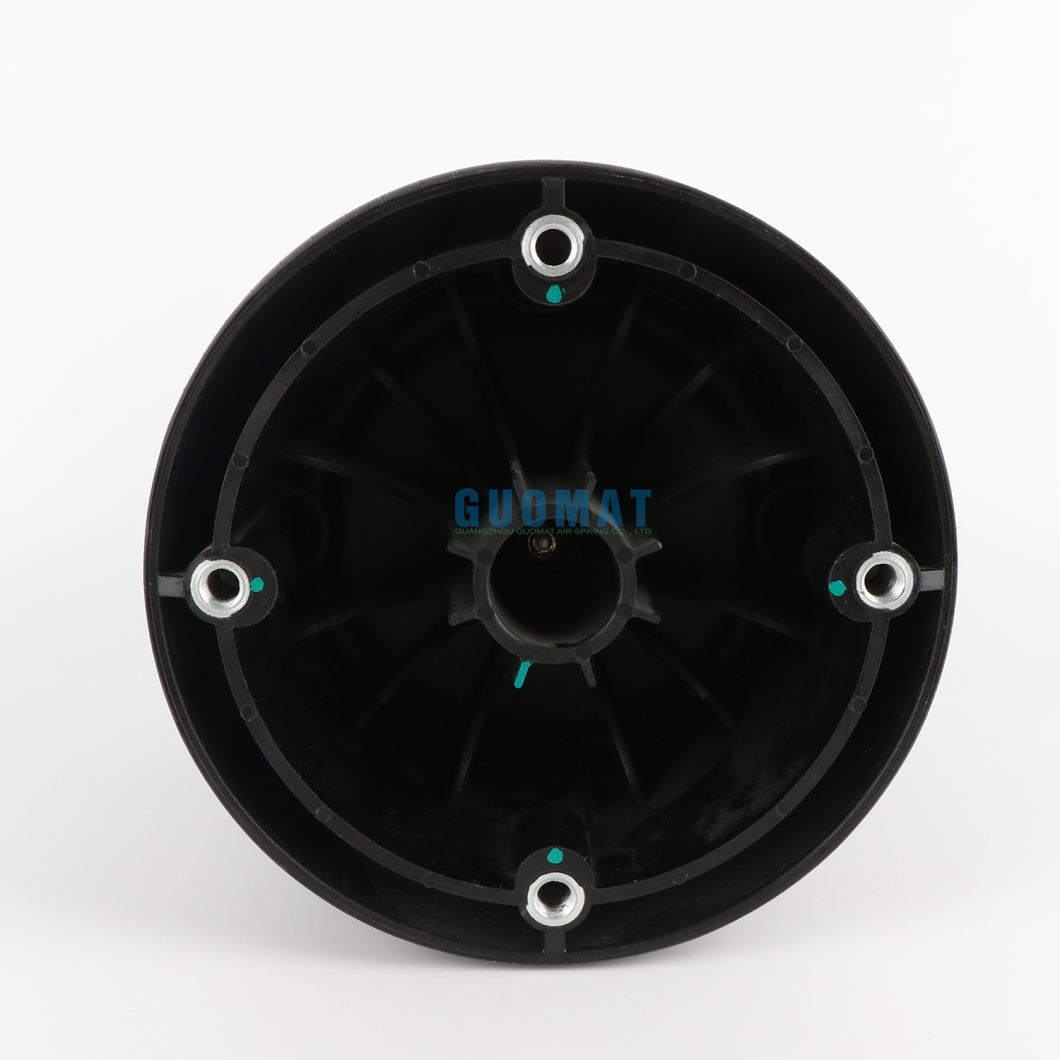

    Detailed Photos


    1r12-541 Goodyear Air Spring 566-24-3-008 Rolling Lobe Air Spring Cross to Conti 910-16p769 64650
    1r12-541 Goodyear Air Spring 566-24-3-008 Rolling Lobe Air Spring Cross to Conti 910-16p769 64650
    1r12-541 Goodyear Air Spring 566-24-3-008 Rolling Lobe Air Spring Cross to Conti 910-16p769 64650
