    Goodyear Super-Cushion Rubber Air Bellows 1B8-560 Single Convoluted Style

    Ask Lasest Price
    Brand Name : GUOMAT
    Model Number : 1B8-560
    Certification : ISO/TS16949, ISO9001
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, Western Union
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Goodyear Super-Cushion Rubber Air Bellows 1B8-560 Single Convoluted Style

    Goodyear Super-Cushion Rubber Air Bellows 1B8-560 Single Convoluted Style


    Air Spring Introduction


    Air springs have been a cornerstone of heavy-duty vehicle suspension systems for nearly a century, leveraging the compressed air already utilized in vehicle braking systems. Compared to traditional mechanical leaf or coil springs, air springs offer two key advantages. Firstly, air suspension provides enhanced comfort by allowing adjustments to the air pressure within the spring. This flexibility changes the spring rate, improving overall ride quality. Secondly, the ability to vary air pressure enables precise control over deck or trailer height, making it easy to align with loading docks even in the absence of dock plates.


    Product Details


    Bellows: 579-913-532

    Air port thread diameter: 1/4 in.

    Air port thread standard: UNC

    Air port thread type:1/4 UNC

    Bumper type: None

    Diameter at 100 psi: 9.4 in.

    End plate diameter: 5 in.

    Force at max. stroke at 100 psi: 1600 lbs

    Height range: 4 to 6-1/2 in.

    Load range at 100 psi: 1900 to 3300 lbs

    Material: Natural rubber

    Spring style: single convoluted

    Stroke: 3.20 in.

    System natural frequency: 2.33 Hz

    Tap spacing: 2-3/4 in.


    Enidine Air Spring Technical Parameters


    Model NumberForce (lbs.) @ 100 psi A Stroke of
    Product NumberAssembly NO.Max. Stroke (in.)2.0 in.4.0 in.6.0 in.Max. StrokeIsolator Load Range @ 100 psi (lbs.)Design Height Range (in.)
    YI-2B65304.919001100-5801300-20004.5-6.5
    5314.919001100-5801300-20004.5-6.5
    5324.31700800-5801300-20004.5-6.5
    5356.3235016007005601500-20005.0-7.0
    5365.7210014507005601500-20005.0-7.0
    YI-2B7540 / 5466.52900230012508001600-25006.0-8.0
    5416.52900230012508001600-25006.0-8.0
    5425.727502000-8001600-25006.0-8.0
    YI-2B8550 / 5527.236002700180010002300-27007.0-8.0
    5537.236002700180010002300-27007.0-8.0
    5546.633502500140010002300-27007.0-8.0
    YI-2B9200 / 2047.616503850255011002300-37007.5-9.5
    201 / 205744003550210011002300-37007.5-9.5
    2167.616503850255011002300-37007.5-9.5
    208744003550210011002300-37007.5-9.5
    2508.748004000325015003000-38007.5-9.5
    2519.447003900310015003000-38008.0-10.0
    2558.447003900310015003000-38008.0-10.0
    256 / 2638.748004000325015003000-38008.0-10.0
    2758.748004000325015003000-38008.0-10.0
    YI-2B12425 / 4297.784007200520027005200-72007.5-9.5
    309 / 3186.980506600425027005200-72007.5-9.5
    4377.784007200520027005200-72007.5-9.5
    416 / 41910.891008100710026007100-81007.5-9.5
    YI-2B14354 / 3527.81290011100840034008400-111007.5-9.5
    355 / 3536.4116009400480034008400-111007.5-9.5
    362 / 36311.414500131001180043008400-131007.5-9.5
    45211136501270011200430011800-130757.5-9.5
    YI-2B15375 / 3779.1137001230010300250010300-123007.5-9.5
    376 / 3787.912850109507900250010300-123007.5-9.5

    Features of GUOMAT Air Bellows


    1. Highly durable, precisely engineered and cost-effective for use in a wide variety of actuation and vibration isolation applications.
    2. Provide superior quality and performance—with time-tested designs, fabric-reinforced neoprene or natural rubber flex member construction and corrosion-protected end retainers.
    3. As an actuator, they provide linear or angular motion.
    4. Favorable stroke-to-compressed-height ratio when compared to air cylinders.
    5. Accept a wide variety of actuation media such as air, water, nitrogen or antifreeze.
    6. As an isolator, they are effective in reducing the harmful effects of vibration.
    7. Simultaneously isolate vibration and regulate load height, as well as allow for consistent vibration isolation under varying loads
    8. GUOMAT offers a variety of air spring types to meet your actuation or isolation needs.


    Company Profile

    Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.

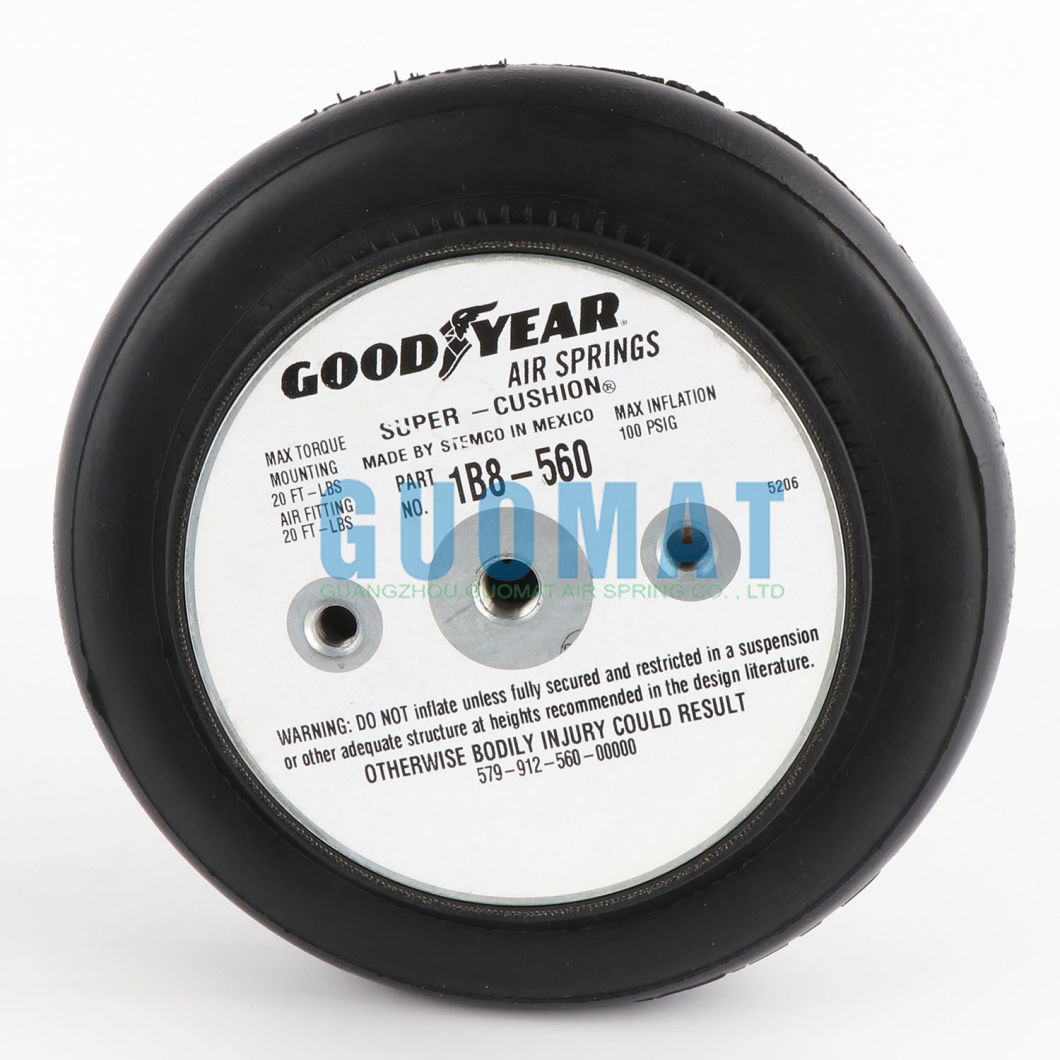

    Rubber Air Bellows 1b8-560 Goodyear Single Convoluted Air Spring


    Product Images


    Rubber Air Bellows 1b8-560 Goodyear Single Convoluted Air SpringRubber Air Bellows 1b8-560 Goodyear Single Convoluted Air Spring
    Rubber Air Bellows 1b8-560 Goodyear Single Convoluted Air SpringRubber Air Bellows 1b8-560 Goodyear Single Convoluted Air Spring
