    Papermaking Textile Machinery Goodyear Air Spring 1B5-800 Rubber NO. 579-91-2-800

    Ask Lasest Price
    Brand Name : GUOMAT
    Model Number : 1B5-800
    Certification : ISO/TS16949, ISO9001
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, Western Union
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Papermaking Textile Machinery Goodyear Air Spring 1B5-800 Rubber NO. 579-91-2-800

    Papermaking Textile Machinery Goodyear Air Spring 1B5-800 Rubber NO. 579-91-2-800


    Product Specification


    Top Plate Screw (Nut) Teeth: 2×M×1.25
    Screw (Nut) Teeth of the Bottom Cover Plate: 2×M×1.25

    The Screw Center Distance of the Bottom Cover Plate: 20 mm

    Air Hole/Air Inlet: G1/8
    The Distance Air Hole Between Screw: 20 mm
    Top Plate Diameter: 90 mm
    Diameter of the Bottom Plate: 90 mm
    Max Diameter: 145.5 mm
    Working Stroke: 50 mm to 110 mm
    Bumper: No

    Goodyear 1B5-800 Can Replace The Following Numbers

    Goodyear Part number: 1B5 -800 /1B5 800 11B5800

    Goodyear Flex No. Part number: 579-913-500

    Goodyear Flex No. Part number: 579913 500

    Goodyear Flex No. Part number: 579913500

    ContiTech Part number: FS 40-6 CI G1/8 M8

    ContiTech Part number: FS 40-6 CI 1/8 M8

    ContiTech Part number: FS 40-6 G1/8 M8

    ContiTech Part number: FS 40-6 1/8 M8

    ContiTech Bellow Part number: FS 40-6 1 FS40-6/ FS406

    Enidine Part number: YM FS 40-6 1 YMFS40-6 1 YMFS406

    Enidine Part number: YM FS 40-6 CI G1/8 M8

    Enidine Part number: YI FS 40-6-000 1 YIFS40-6-000 1 YIFS406000

    Enidine Part number: YI FS 40-6 CI 1/8NPT 3/8-16UNC

    Phoenix Part number: SP1 B 041 SP1B04

    Fes to Air Spring Part number: EB-145-60/ EB 145 60/ EB14560

    Enidine Part number: YI-1B5- 800/ YI1B5 800 1 Yl1B5800

    Weforma Part number: WBE100-E1 1 WBE100 E1 / WBE100E1

    Numatics Part number: ASNS10-2-1/ ASNS102 1/ ASNS1021

    Vigor Part number: 1B 5001/ 1B5001

    Vigor Bellow Part number: 1B40-6/ 1B406 /1B406

    VKNTECH Part number: 1B 4060 11B4060

    VKNTECH Bellow Part number: 1B40-6 /1B406 /1B406.

    EAA Part number: 1E40-6 /1E406 /1E406


    Rubber Damage from Chemicals


    1. Grease and oil are common examples that can cause this condition after
    2. prolonged contact with the rubber flexible member.
    3. Possible causes:
    4. Excessive oil in the air supply.
    5. Excessive greasing of universal joints.
    6. Excessive greasing of the fifth wheel.
    7. Leaking seals in suspension components.
    8. Use of petroleum based cleaners on the air spring (use only soap and water for cleaning)

    Goodyear Otehr Types Air Springs


    1B12-3051B12-3132B6-5302B6-5313B12-3043B12-305
    1B14-3501B14-3512B6-5322B6-5353B14-3513B14-353
    1B14-3521B14-3622B6-5362B7-5403B14-3543B15-375
    1B14-3641B15-3752B7-5412B7-5423B15-3763B15-377
    1B15-3761B15-3772B7-5452B7-5463B15-378
    1B15-3782B8-5502B8-552
    2B8-5532B8-554
    2B9-2002B9-201
    2B9-2042B9-205
    2B9-2162B9-250
    2B9-2512B9-253
    2B12-3092B12-218
    2B12-4252B12-429
    2B12-4372B12-416
    2B14-3522B14-353
    2B14-3542B14-355
    2B14-3622B14-363
    2B14-4522B15-375
    2B15-3762B15-377
    2B15-3782B19-8433
    2B22-8539

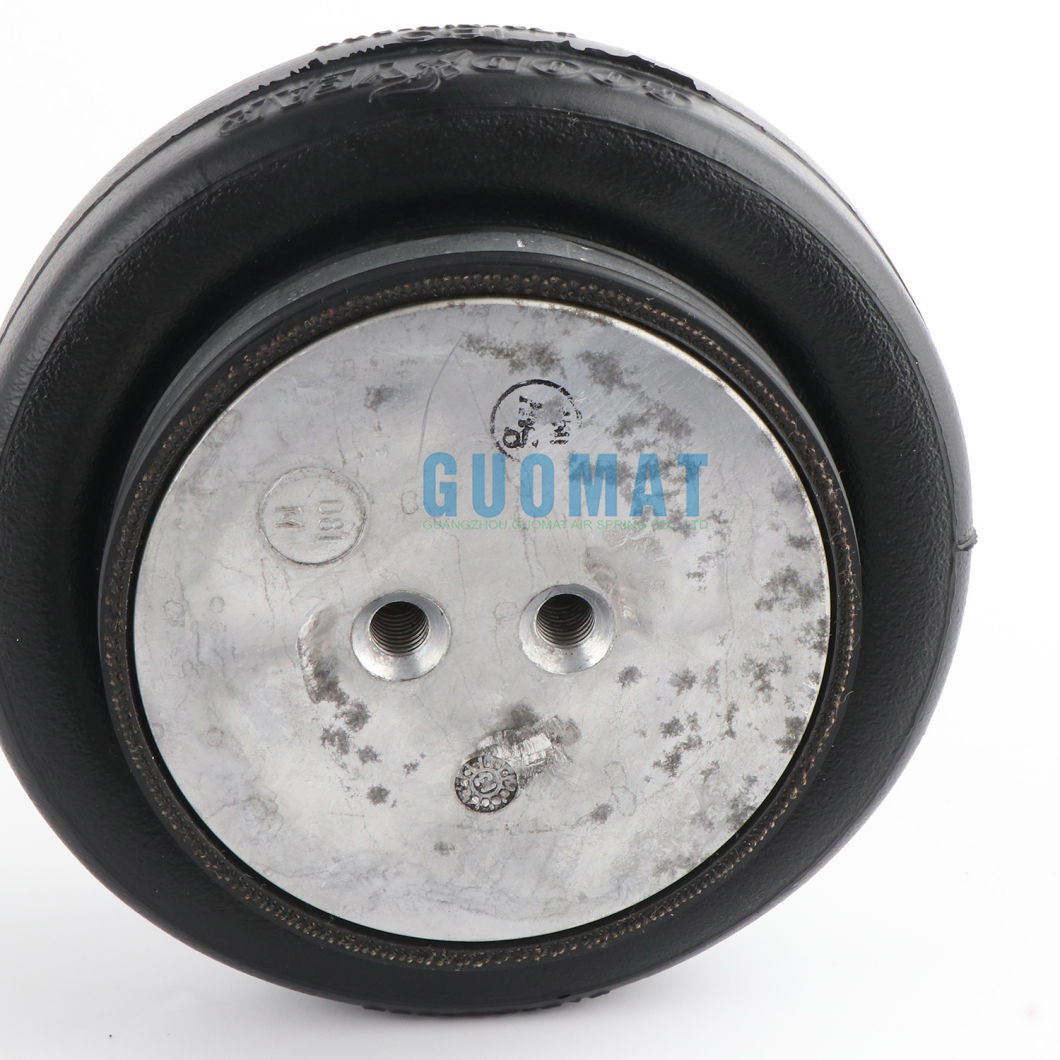

    Real Images


    Goodyear Air Springs 1b5-800 Original Single Air Spring 579-91-2-800 From USA for Reducing Tremor
    Goodyear Air Springs 1b5-800 Original Single Air Spring 579-91-2-800 From USA for Reducing Tremor
    Goodyear Air Springs 1b5-800 Original Single Air Spring 579-91-2-800 From USA for Reducing Tremor
