S-450-2 Japan YOKOHAMA Air Cushion 450-2r Rubber Air Spring For Paper Industry

Ask Lasest Price
Brand Name :	GUOMAT
Model Number :	F-450-2
Certification :	ISO/TS16949:2009
Price :	Negotiable
Payment Terms :	T/T, Western Union,paypal or others
Supply Ability :	1000pcs/week
Delivery Time :	2-8 work days

Add to Cart

Product Details
Company Profile

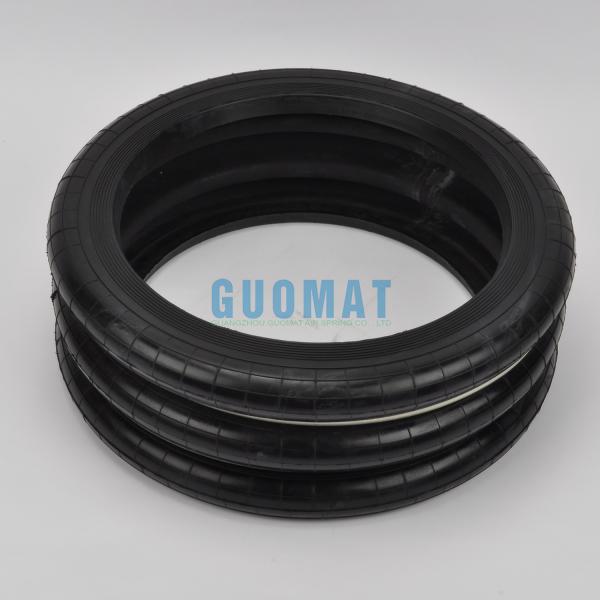

S-450-2 Japan YOKOHAMA Air Cushion 450-2r Rubber Air Spring For Paper Industry

S-450-2 Japan YOKOHAMA Air Cushion 450-2r Rubber Air Spring For Paper Industry

GUOMAT Press machine air spring of the presses is divided into single, double, three, four and five. Punch the air spring mattress made from natural rubber after a series of process of rubber skin, use the making craft of the air spring on the punch than ordinary industrial air spring is much more complex, therefore, the cost will be higher, the price is a natural a lot higher than the other. There are stainless steel rings in the middle, stainless steel ring in the single layer, and a steel ring in the hyperbolic. 450-2 curves contain three steel rings,The 450-4 four curves contain three steel rings, and the fourth one contains three steel rings, and the fifth one contains four steel rings.
GUOMAT F-450-2 which is produced by our factory have the same size as YOKOHAMA S-450-2 .

Details Technical performance parameter list of GUOMAT F-450-2 refer to YOKOHAMA S-450-2R:

	Installation height								0.7MPa Volume(dm³)
Bearing load Power (kg)	Inflation pressure	0.2MPa	0.3MPa	0.4MPa	0.5MPa	0.6MPa	0.7MPa	0.8MPa	0.7MPa Volume(dm³)
	80(mm)	3645	5442	7241	8950	10796	12592	14393	10.00
	95(mm)	3379	5103	6809	8512	10218	11924	13674	13.20
	115(mm)	3116	4730	6440	8100	9700	11400	13100	16.32
	125(mm)	3047	4622	6240	7821	9481	11111	12722	18.19
	132(mm)	2952	4525	6062	7652	9239	10840	12430	19.78
	155(mm)	2698	4117	5537	7005	8505	10085	11508	22.25
Stiffness and frequency at design height	Vertical stiffness(Kg/cm)	867	1193	1520	1878	2171	2462	2780
Stiffness and frequency at design height	Natural frequency Hz	2.64	2.51	2.43	2.41	2.37	2.32	2.30
Stiffness and frequency at design height	Natural frequency cpm	158	151	146	145	142	139	138

Packaging Information:

Net Weight:6.5 KG
Gross Weight:8.3 KG
Package Size:120 mm*500mm*500mm

S-450 items Detailed Parameter Table 1:

GUOMAT NO.	Reference No.	Hight H(mm)			Commonly Maximum Stroke(mm)	The Largest Diameter When Compressed(mm)
GUOMAT NO.	Reference No.	Design High(mm)	Maximum High(mm)	Minimum Height(mm)	Commonly Maximum Stroke(mm)	The Largest Diameter When Compressed(mm)
F-450-1	S-450-1	72	117	40	±30	510
F-450-2	S-450-2	102	172	57	±45	510
F-450-3	S-450-3	160	270	90	±68	510
F-450-4	S-450-4	218	363	123	±90	510
F-450-5	S-450-5	276	456	156	±113	510

S-450 items Detailed Parameter Table 2:

GUOMAT NO.	Reference No.	Standard Height,Internal Pressure 0.49 M pa When The General Value					Using Maximum Internal Pressure (M pa)	Internal Pressure (M pa)
GUOMAT NO.	Reference No.	Effective Area (Cm2)	Volume(L)	Load (K n)	Dynamic Spring Parameters (N/Min)	Vibration Frequency (Hz)	Using Maximum Internal Pressure (M pa)	Internal Pressure (M pa)
F-450-1	S-450-1	1590	11.9	80	2295	2.7	0.69	2.9-3.9
F-450-2	S-450-2	1590	14.7	80	1687	2.3	0.69	3.9-4.9
F-450-3	S-450-3	1590	24.3	80	1040	1.8	0.69	3.9-4.9
F-450-4	S-450-4	1590	33.8	80	755	1.6	0.69	3.9-4.9
F-450-5	S-450-5	1590	43.6	80	588	1.4	0.69	3.9-4.9

Note:

This air spring is generally in stock. The products produced by GUOMAT conform to national standards. The warranty is one year. Any quality problem can be exchanged within one year.

There is no limit to the number of purchases. Small quantities are generally sent by international express, such as DHL, FEDEX, UPS, TNT, etc. The time is also very fast, usually within 3-7 working days to receive the goods.

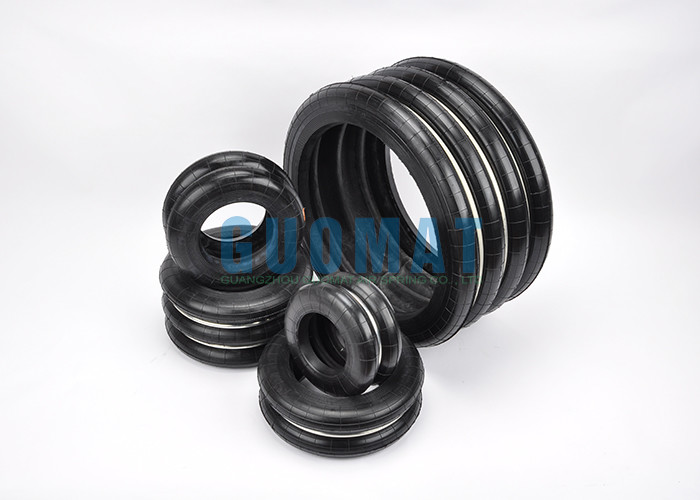

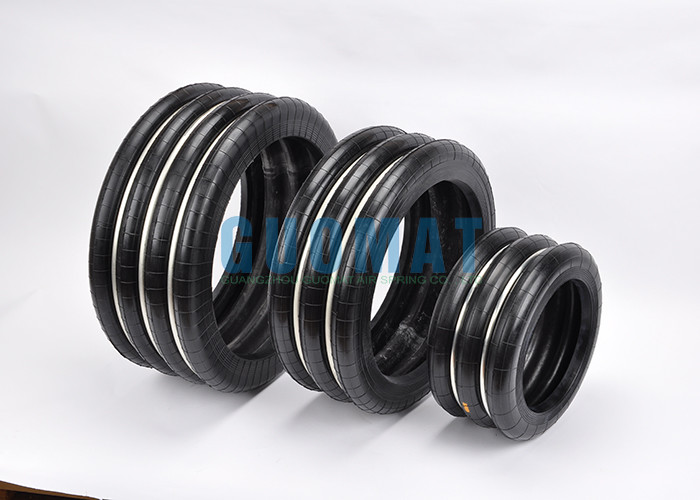

Bulk product pictures of GUOMAT Air spring for punching machine:

GUOMAT Has Punch Press Air Spring Cushion /Air Shock Absorber Part NO. Below:

GUOMAT Part NO.	Japan YOKOHAMA Reference No.	Japan YOKOHAMA Reference No.	GUOMAT Part NO.	Japan YOKOHAMA Reference No.	Japan YOKOHAMA Reference No.
F-600-1	S-600-1R	S600-1	F-240-4	S-240-4R	S240-4
F-600-2	S-600-2R	S600-2	F-240-3	S-240-3R	S240-3
F-600-3	S-600-3R	S600-3	F-240-2	S-240-2R	S240-2
F-600-4	S-600-4R	S600-4	F-240-1	S-240-1R	S240-1
F-600-5	S-600-5R	S600-5	F-220-4	S-220-4R	S220-4
F-550-2	S-550-2R	S550-2	F-220-3	S-220-3R	S220-3
F-550-3	S-550-3R	S550-3	F-220-2	S-220-2R	S220-2
F-500-2	S-500-2R	S500-2	F-200-2	S-200-2R	S200-2
F-500-3	S-500-3R	S500-3	F-200-3	S-200-3R	S200-3
F-500-4	S-500-4R	S500-4	F-200-4	S-200-4R	S200-4
F-500-5	S-500-5R	S500-5	F-160-1	S-160-1R	S160-1
F-450-1	S-450-1R	S450-1	F-160-2	S-160-2R	S160-2
F-450-2	S-450-2R	S450-2	F-160-3	S-160-3R	S160-3
F-450-3	S-450-3R	S450-3	F-160-4	S-160-4R	S160-4
F-450-4	S-450-4R	S450-4	F-120-4	S-120-4R	S120-4
F-450-5	S-450-5R	S450-5	F-120-3	S-120-3R	S120-3
F-400-2	S-400-2R	S400-2	F-120-2	S-120-2R	S120-2
F-400-3	S-400-3R	S400-3	F-100-4	S-100-4R	S100-4
F-400-4	S-400-4R	S400-4	F-90-3	S-90-3R	S90-3
F-400-5	S-400-5R	S400-5	F-90-2	S-90-2R	S90-2
F-350-1	S-350-1R	S350-1	F-90-1	S-90-1R	S90-1
F-350-2	S-350-2R	S350-2	F-300-1	S-300-1R	S300-1
F-350-3	S-350-3R	S350-3	F-300-2	S-300-2R	S300-2
F-350-4	S-350-4R	S350-4	F-300-3	S-300-3R	S300-3
			F-300-4	S-300-4R	S300-4
