YOKOHAMA Air Spring S200-2 Air Cushion Airbag For Corrector Paper
Machine GUOMAT 200-2 With Plate
GUOMAT F-200-2 replaces YOKOHAMA Air Spring S200-2:

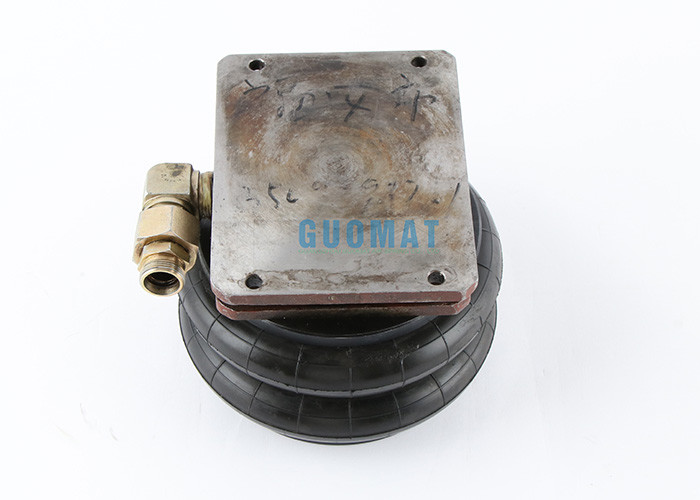

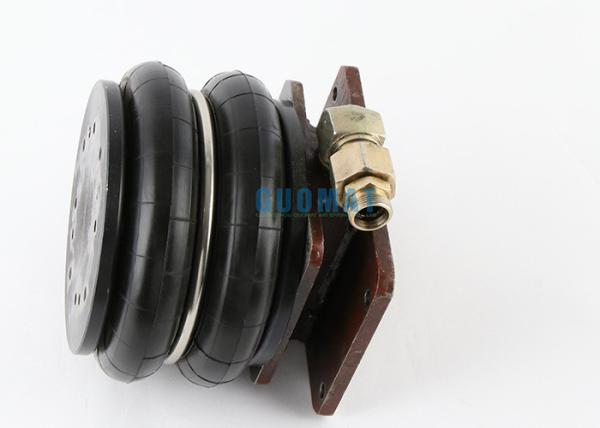

The cover and base of the picture of this product are provided by
the customer, so the surface shows signs of use and wear; we help
to install, only the bladder part is produced by us, but we can
also install the customer’s requirements to produce Self-sealing
cover to meet the unused needs of new customers.
Net Weight:12.5 KG
Gross Weight:13.0 KG
Package Size:200mm*300mm*300mm
S-200 items Detailed Parameter Table:
| GUOMAT NO. | Reference No. | Hight H(mm) | Commonly Maximum Stroke(mm) | The Largest Diameter When Compressed(mm) |
| Design High(mm) | Maximum High(mm) | Minimum Height(mm) |
| F-200-2 | S-200-2 | 98 | 148 | 53 | ±35 | 260 |
| F-200-3 | S-200-3 | 152 | 232 | 82 | ±53 | 260 |
| F-200-4 | S-200-4 | 206 | 311 | 111 | ±70 | 260 |
| GUOMAT NO. | Reference No. | Standard Height,Internal Pressure 0.49 M pa When The General Value | Using Maximum Internal Pressure (M pa) | Internal Pressure (M pa) |
| Effective Area (Cm2) | Volume(L) | Load (K n) | Dynamic Spring Parameters (N/Min) | Vibration Frequency (Hz) |
| F-200-2 | S-200-2 | 315 | 3.2 | 15.4 | 373 | 2.5 | 0.88 | 2.9-3.9 |
| F-200-3 | S-200-3 | 315 | 5.2 | 15.4 | 235 | 2 | 0.88 | 2.9-3.9 |
| F-200-4 | S-200-4 | 315 | 7.2 | 15.4 | 177 | 1.7 | 0.88 | 2.9-3.9 |
Features:
1. The bellows type has less deformation of the rubber film during
operation (expansion and contraction), so that excellent durability
can be obtained.
2, The main component is rubber, without any sliding parts, so it
can be easily maintained without refueling.
3, this air spring compared with other types of air springs, large
stroke installation height can be kept low.
4, Because the air is used as an elastic body, it can be flexibly
subjected to a large load by damping the compressed air. Such air
springs do not allow other springs to use together.
5, By changing the internal pressure by compressing the air, the
air spring withstands a wide range of pressure changes, so it is
used in punching machines where the pressure range is very
different.
6. It can be used with height adjustment valve, which can always
maintain a constant height to prevent load fluctuations.
7, It can be used together with auxiliary tank and throttle valve
to obtain excellent damping effect. And it can reduce the resonance
amplitude.
8, This air spring is simple in structure and easy to install and
disassemble.
GUOMAT Has Punch Press Air Spring Cushion /Air Shock Absorber Part
NO. Below:
Japan Yokohama Rubber Air Spring Cushion Have The Following
Specifications And Models:
S-300-1R, S-300-2R, S-300-3R, S-300- 4R, S-350-1R, S-350-2R,
S-350-3R, S-350-4R, S-400-2R, S-400-3R, S-400-4R, S-400-5R
S-450-1R, 2R, 3R, 4R, S-500-2R, 3R, 4R, Guangzhou GUOMAT, S-500-5R,
S-550-2R, S-550-2R, S-550-3R S -600-1R, 2R, 3R, 4R, 5R, S-730-1R,
2R, 3R, 4R, 5R, 6R, S-50-2R, S-50-3R, S-60-2R, S-60 -3R, S-60-4R,
S-90-3R, S-100-2R, S-100-3R, S-100-4R, S-120-2R, S-120-3R, S-120-4R
, S-120-4R, S-160-1R, 2R, 3R, S-160-4R, S-200-2R, S-200-3R,
S-200-4R, S-200-4R, S-220 -2R, S-220-3R, S-220-4R, S-240-1R,
S-240-2R, S-240-3R, S-240-4R,
Bmw Station Si / Springride (Spratt), Taiwan Ysair Airbag / Air
Cushion Specifications Are As Follows :
YS-65-1, YS-115-1 , YS-115-2, YS-130-1, YS-130-2, YS-160-1,
YS-160-2, YS-210-1, YS-210-2, YS-250-1, YS -250-2, YS-280-1,
YS-280-2, YS-320-1, YS-320-2, YS-320-3, YS-335-1, YS-335-2, YS-335
-3, YS-405-1, Y-S405-2, YS-405-3, YS-460-1, YS-460-2, YS-460-3,
YS-510-1, YS-510-2 , YS-510-3, YS-560-1, YS-560-2, YS-560-3,
YS-610-1, YS-610-2, YS-610-3, YS-660-1, YS -660-2, YS-660-3,
YS-710-1, YS-710-2, YS-710-3;
