1B8-550 Goodyear Rubber Air Spring Refer To Firestone W01-358-7564 GUOMAT 1B8X4 Air Actuator

Description:

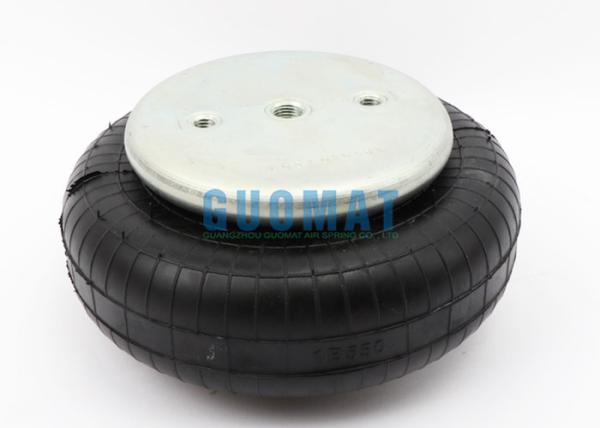

GUOMAT 1B8X4 This rubber air spring is produced and assembled by natural rubber and steel. Produced by the GUOMAT factory, quality assurance, strict quality inspection, and praised by many customers.
It can replace 1B8-550 Goodyear. The size of GUOMAT 1B8X4 is the same as 1B8-550 Goodyear.

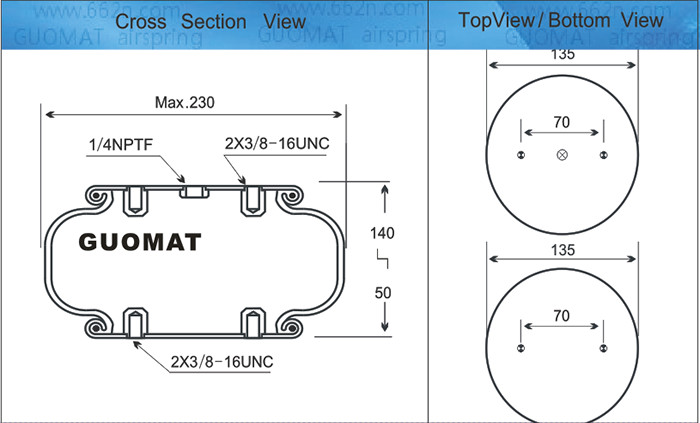

Product Description of 1B8X4 Refer To 1B8-550 Goodyear

Top Cover Plate Diameter: 135mm

Bottom Piston Number: no

Bottom Cover Plate Diameter: 135mm

Screw Center Distance : 70mm

Distance Gas Hole Between Nut: 35 mm

Top Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC

Bottom Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC

Rubber Bellows MAX Diameter(Maximum Diameter): 230 mm

Rubber Bellows Natural Diameter 210 mm

The Working Stroke : MAX 140 mm to MIN 50 mm

Compressed Height: 50 mm

Gas Hole / Air inlet : 1/4NPTF

Technical Data of 1B8X4 Refer To 1B8-550 Goodyear

• Min. pressure – 0 psi
• Return force to min. height – <45LBF/200N
• Overall Weight – 2.4KG
• Min. Design Height – 50MM
• Inst.Space Required – 140MM
• Max. Stroke – 90MM

GUOMAT:1B8X4

OEM Original Equipment Manufacturer:FS 120-10 CI

AIR INLET 1/4 NPT:

Firestone : W01-358-7564

Description of 1B8X4 Refer To 1B8-550 Goodyear
Assembly Order No.
Style 116 Two Ply Bellows
Blind nuts, 1/4 NPT:W01-358-7564；W01 358 7564；W013587564
Blind nuts, 3/4 NPT:W01-358-7561；W01 358 7561；W013587561
Countersunk steel bead rings,19/4 bolts, nuts, washers:W01-358-7568；W01 358 7568；W013587568
Blind nuts with installed 1/4 tank valve W01-A72-7518；W01 A72 7518；W01A727518
Rubber bellows only:W01-358-0133；W01 358 0133；W013580133

Style 117 High Bellows
Blind nuts, 1/4 NPT:W01-358-7600；W01 358 7600；W013587600
Blind nuts, 3/4 NPT:W01-358-7602；W01 358 7602；W013587602
Countersunk steel bead rings,Strength 13/4 bolts, nuts, washers:W01-358-7606；W01 358 7606；W013587606

1B8X4 Refer To 1B8-550 Goodyear PNEUMATIC APPLICATION – STATIC CHARACTERISTIC VALUES

VIBRATION ISOLATION – DYNAMIC CHARACTERISTICS

PURCHASE ORDER DATA

GUOMAT have other kinds of air spring:

Guangzhou Guomat Air Spring Co., Ltd. is located in Guangzhou, about 15min’s drive from Baiyun Airport. Our mainly products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.

GUOMAT Factory gate：

Established in 2008, Our company covers 20,000㎡ and is located in Taihe Town Baiyun District. With the rapid development of our company, we are equipped with modernized workshop and advanced rubber air springs equipments now. We are the first company who started air spring business and has become one of the largest air spring manufacturing bases in China.

In 2017, we launched a collaboration with High Tech of US customers to customize the products of our customers and the logo of our customers. Every year, there are about 10,000 orders. In continuous cooperation, the products meet the international inspection standard ISO/TS16949:2009, and the customers are very satisfied with the products produced. This is our high recognition from American customers and also gives us Great motivation.

In 2018, we started cooperation with German GmbH, mainly industrial air springs, which are suitable for industrial equipment. We have successfully developed and produced the natural air-seal of the skin to reach the 700mm flanged air spring, the customer's annual demand is a few hundred.

With the development of business and demand for customers, our company introduced business with TomLog Corporation in 2010, our strategic cooperative partner in Taiwan. Then we developed air compressor program and air spring related business, in 2015, America Goodyear Corporation met with the transfer of shares in the North American plant, our company was granted with sale agent for air springs in China, providing more choice for our customers. Our company adopts the most advanced domestic air spring processing equipment and international production technology. Combined with unique production process, our company strictly execute international standards for production and spare no efforts to create the world-class products. We will endeavor to make air spring widely used at home and abroad, and let more and more customers to enjoy the best damping effect.
