vibracoustic V1B20 Single Convoluted Air Spring Convoluted Rubber
Bellows 230116-1 Max Dia. 305mm
Guomat 230116-1 Industrial Single Convoluted Air Spring Specifications
Technical data 1 Technical data
Loading capacity max. 1 Load capacity max. (7 bar)
23.75 kN
Max. Lifting pressure 1 Max. Pressure for lifting processes
8.0 bar
Diameter max. 1 diameter max.
305 mm
Required space 1 space requirement Ø
335 mm
Height max.1 Max. Height
175 mm
Height min. 1 min. Height
55 mm
Weight 1 weight
1.03 kg
Force to collapse to min. height 1 restoring force to the minimum
height
❶Nut / Blind Nut
The Long Of The Nut:25 mm
Top Cover Plate Screw number: 8 pcs
Bottom Cover Plate Screw number : 8 pcs
Top Cover Plate Screw (Nut) Tooth : M10
Screw Center Distance of Top Cover Plate :
Bottom Cover Plate Screw (Nut) Tooth : M10
Screw Center Distance of Bottom Cover Plate :
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : G1/2
❸ Cover Plate
Top Diameter: 172 mm
Bottom Cover Plate Diameter: 172 mm
❹Rubber Bellows
Rubber Bellows Natural Diameter : 150 mm
Rubber Bellows Natural Height :115 mm
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
Without Girdle Hoop
The Composition Of Industrial Convoluted Air Spring Element Has The
Following Aspects
❶Nut / Blind Nut – As well a permanent part of the Cover Plate assembly. Provides
an alternative to bolt installation system. It is inside defect
within the iron plate
❷ Gas Hole / Air inlet / Air Fitting – Most usually 1/4 N.P.T. which provides the air entrance to the
rubber bellows.
❸ Cover Plate - Curled up to more durable bellows design and the largest quality
control in the factory. Allows 100% of the leak test before
shipment.
❹Rubber Bellows - Air Bellows includes four layers of materials: an inner layer,
two layer cord - reinforced fabrics, and a cover. Construction of a
natural rubber provides – 65F functional properties.
❺ Bumper block / Buffer block - Solid rubber or engineering plastic device designed to prevent
major damage to the vehicle or suspension in the event of a sudden
loss of air pressure in the spring.
❻ Girdle Hoop / Girdle Ring - Molded wire-wound ring to provide lateral stability of the
complex type spring bellows.
GUOMAT Air Springs can last at least twice lifetime, always as much
as four times longer than steel springs!
- They almost do not need to maintain.
- Increase the service life of tires and brake pads.
- Let you pull anything; Eliminate expensive admission cost.
- Greatly reduce the breakage of the other vehicle components and
maintenance.
- Back to you in the scrappage, truck and trailer with air suspension
is more valuable.
- Allow the perfect load balancing between axles; Allow you to run in
one of the largest legal restrictions.
- Reduce the discomfort and driver fatigue risk; Improve the
efficiency of the driver's safety, and loyalty
- To provide smooth to load, reduce the cost of expensive insurance
claims and packaging.

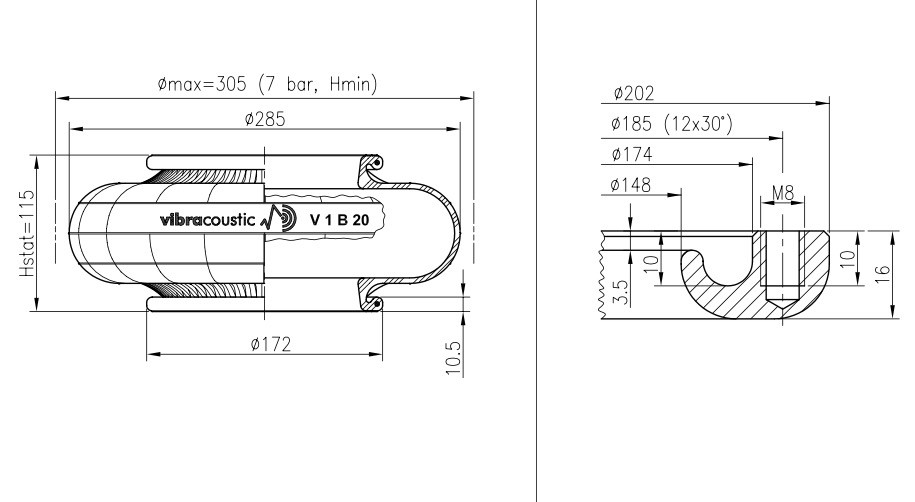

The drawing of vibracoustic V1B20:
