    1R12-281 Goodyear Air Spring 566-24-3-066 AUTOMANN AB1DK23L-9130

    Ask Lasest Price
    Brand Name : Goodyear
    Model Number : 1R12-281
    Certification : ISO/TS16949
    Price : $59-159/pc
    Payment Terms : T/T, Western Union,paypal or others
    Supply Ability : 1000pcs/week
    Delivery Time : 2-8 work days
    • Product Details
    • Company Profile

    1R12-281 Goodyear Air Spring 566-24-3-066 AUTOMANN AB1DK23L-9130

    1R12-281 Goodyear Air Spring Auto Parts 566-24-3-066 FIRESTONE W013589130 For AUTOMANN AB1DK23L-9130


    1R12-281 this kind of air spring is produced by Goodyear.We imported this kind of air spring from Amercia.

    1R12-281 Goodyear Air Spring-Rolling Air Bag 1R12-281 describes Goodyear's sleeve type air spring will use a flexible member without internal molded beads. The bladder model is 566-24-3-066, and the flexible piece is connected to the end of the holder by pinching the material between the end and the external crimping ring, and then adjusting it to an appropriate diameter.


    OEM Cross Number:


    Goodyear 1R12-281
    Goodyear Flexmember 566-24-3-066
    Goodyear Piston 566-20-7-080 COMPOSITE


    AUTOMANN FIRESTONE AB1DK23L-9130 CONT. AB1DK23L-9350 W013589130 AB1DK23L-9394 W013589394 AB1DK23L-P946
    CONTI
    UCE-9393-1 UCE-9393-3 UCE-9393-4
    9 10-19 A 358 64327
    25.2 9.0
    DAYTON
    TRIANGLE
    352-9130
    8321
    FIRESTONE
    TRP
    9030 9394
    AS91300

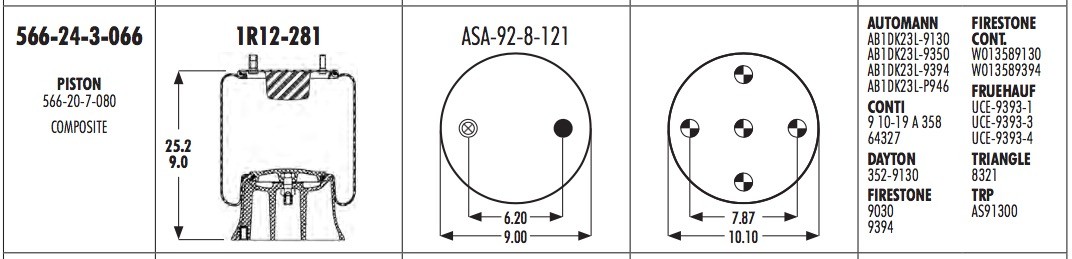

    Goodyear Number: 1R12-281

    Bellows type: rolling leaf

    Ultraman bellows Number: 1DK23L

    Firestone bellows Number: 1T15M-9

    Goodyear Bellows Number: 566-24-3-066

    Contitech bellows Number: 9 10-19

    Triangle bellows Number: 6364/87

    Base plate/neutron type: composite material

    Number of top plate holes/studs: 2

    Top plate diameter: 9

    Top plate C to C diameter: 6.2

    Base plate hole bolt Qyt: 5

    Diameter of bottom plate: 10.1

    Diameter of base plate C to C: 7.87

    Base plate part number: 566-20-7-080

    Bottom plate alignment: parallel

    Bumper: Yes

    Bracket: Not applicable

    Minimum height: 9

    Maximum height: 25.2


    1R12-281 Goodyear Air Spring 566-24-3-066 AUTOMANN AB1DK23L-9130


    5662422600000420132916Y1R12-2601R12-260
    5662422610000020093010Y1R12-2611R12-261
    1R12-26120093011N1R12-261 Rolling Lobe Air Spring1R12-261 Rolling Lobe Air Spring
    5662422640000020093014Y1R12-2641R12-264
    5662422650000020093019Y1R12-265, USE 1R12-1671R12-265, USE 1R12-167
    1R12-26520093020N1R12-265 Rolling Lobe Air Spring1R12-265 Rolling Lobe Air Spring
    5662422660000020093022Y1R12-266 HNDRCK C20223SEE 1R12-3291R12-266 HNDRCK C20223SEE 1R12-329
    5662422690000020093025YFRTLNR 1R12-269FRTLNR 1R12-269
    5662422710000020093026Y1R12-271 HNDRCK C20217 REP 1R12-3301R12-271 HNDRCK C20217 REP 1R12-330
    5662422720000020093029Y1R12-2721R12-272
    5662422720000420110384Y1R12-2721R12-272
    5662422720001920093028YENIDINE YI-1R12-272ENIDINE YI-1R12-272
    5662422740000020093031Y1R12-2741R12-274
    1R12-27420116880N1R12-274 Rolling Lobe Air Spring1R12-274 Rolling Lobe Air Spring
    5662422740001920093032YENIDINE YI-1R12-274ENIDINE YI-1R12-274
    1R12-27520093035N1R12-2751R12-275
    1R12-27920093043N1R12-279 REP BY 1R12-281(20035891)1R12-279 REP BY 1R12-281(20035891)
    5662422810000020093050Y1R12-2811R12-281
    5662422810000120054307YGENTDE 1R12-281GENTDE 1R12-281
    1R12-28120035891N1R12-281 Rolling Lobe Rep 1R12-2791R12-281 Rolling Lobe Rep 1R12-279
    5662422830000020093056Y1R12-283 HENDRICKSON B-43751R12-283 HENDRICKSON B-4375
    5662422840000020093058Y1R12-2841R12-284
    1R12-28420116881N1R12-284 Rolling Lobe Air Spring1R12-284 Rolling Lobe Air Spring
    5662422850000020093060Y1R12-2851R12-285
    1R12-28520116882N1R12-285 Rolling Lobe Air Spring1R12-285 Rolling Lobe Air Spring
    5662422860000020093061Y1R12-2861R12-286
    5662422880000020093063YMCI 12C-1-126 1R12-288MCI 12C-1-126 1R12-288
    1R12-28820116883N1R12-288 Rolling Lobe Air Spring1R12-288 Rolling Lobe Air Spring
    5662422890000020093064Y1R12-2891R12-289
    5662422890000420116884Y1R12-2891R12-289
    5662422900000020054308YSPR 1R12-290SPR 1R12-290
    5662422940000420116885Y1R12-2941R12-294
    5662422950000020093067Y1R12-2951R12-295
    5662422950000420116886Y1R12-2951R12-295
    5662422960000020093068Y1R12-2961R12-296
    5662422960000420116887Y1R12-2961R12-296
    5662423030000020093076Y1R12-3031R12-303
